Description

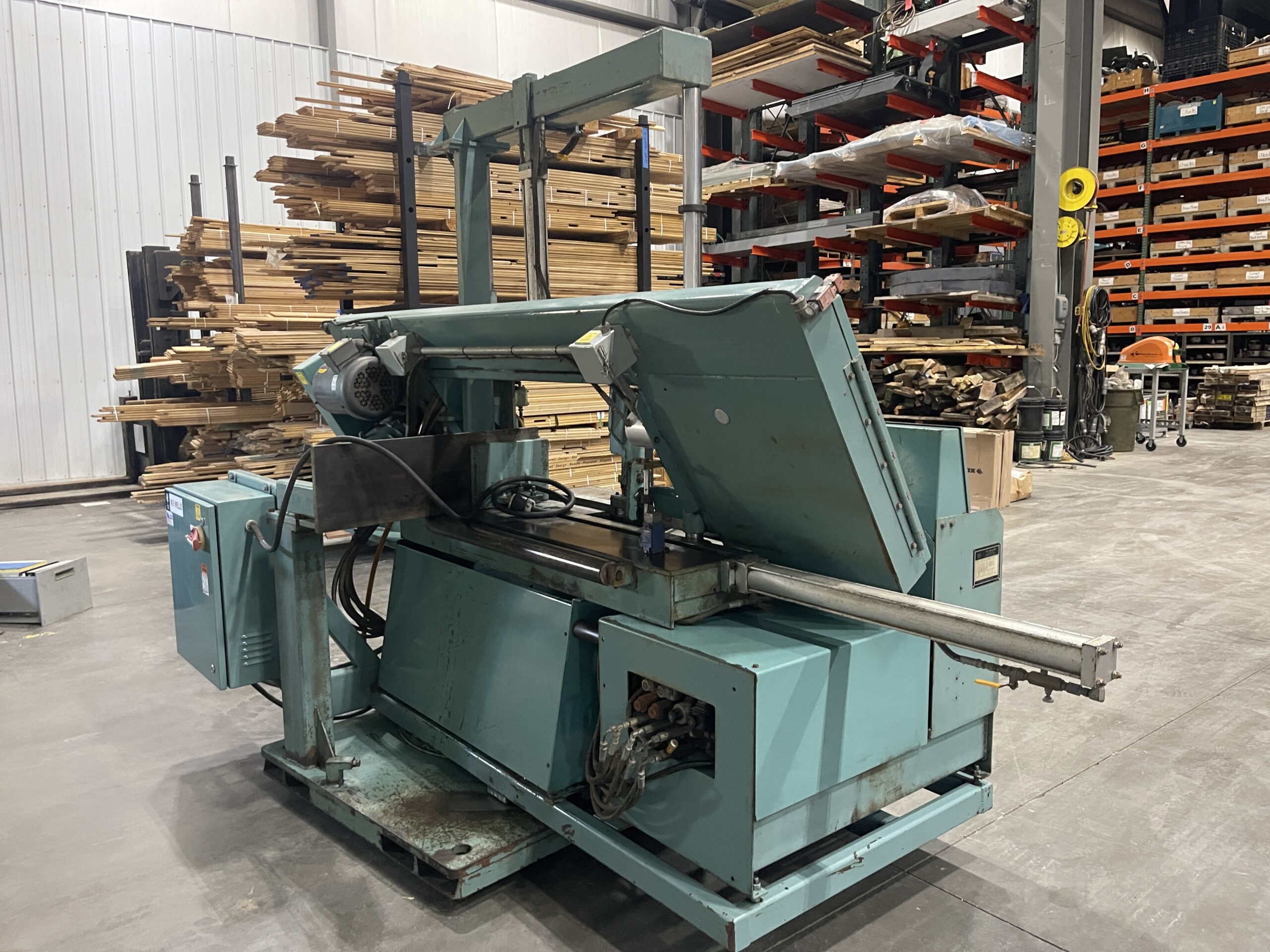

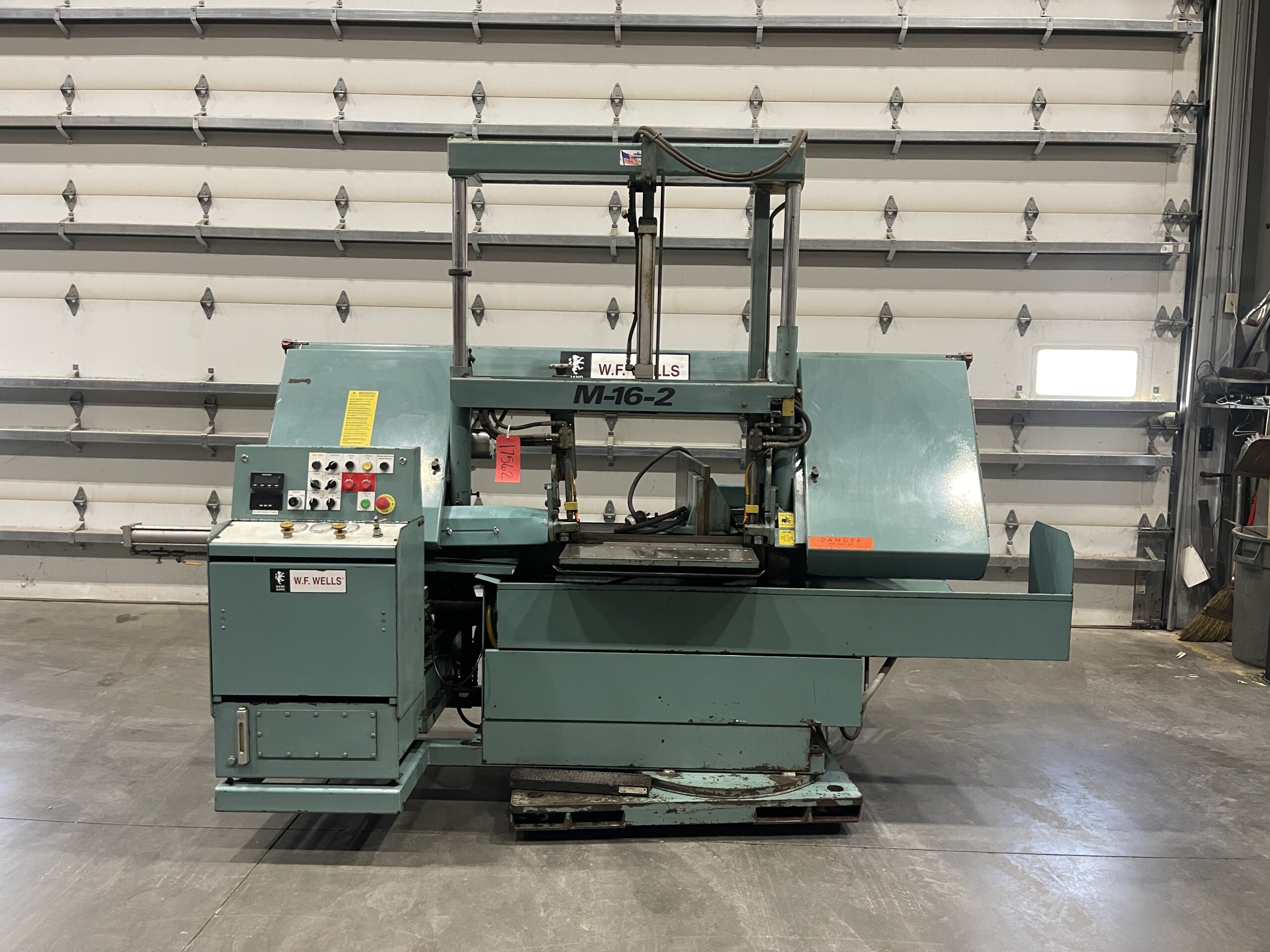

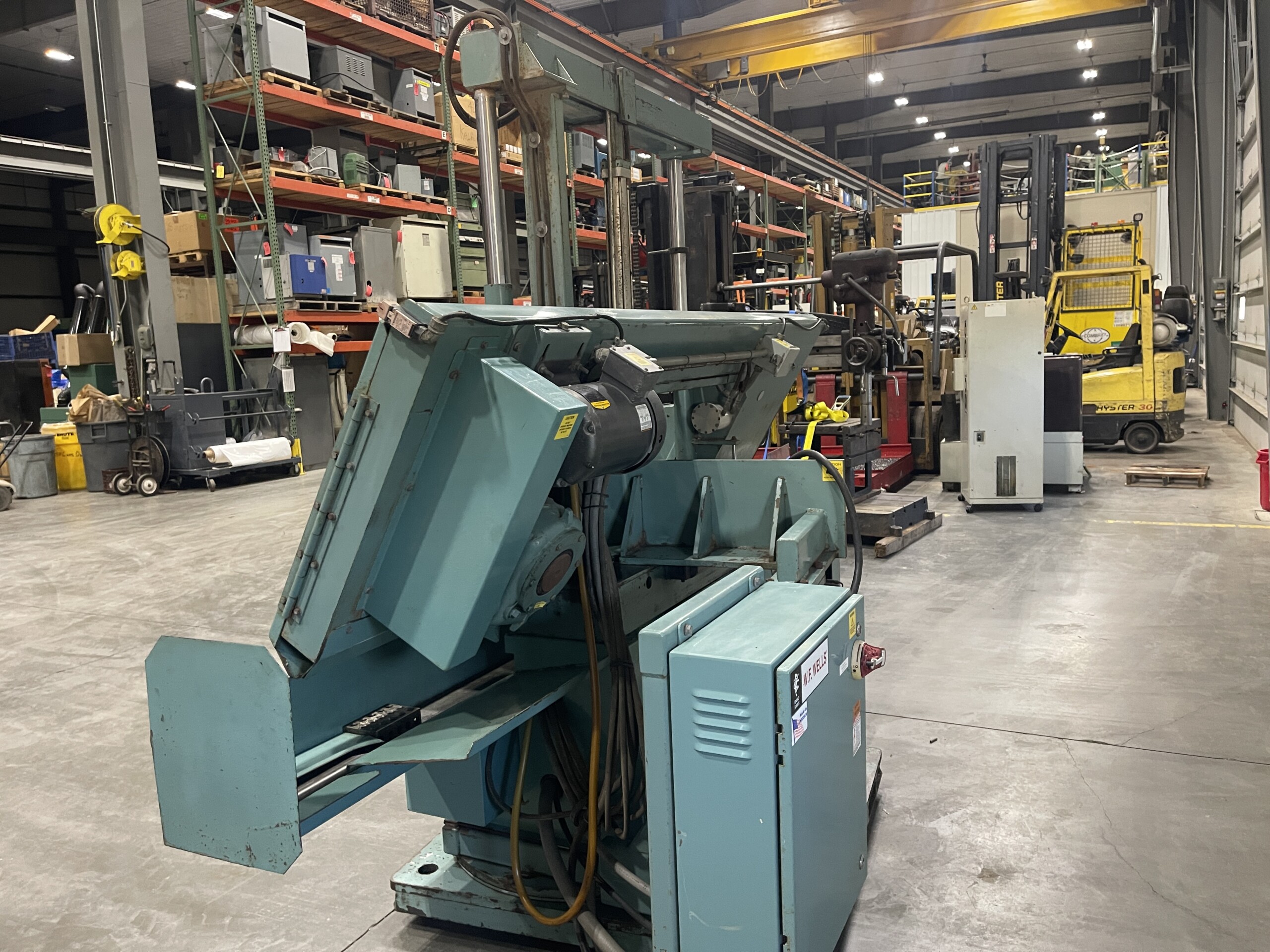

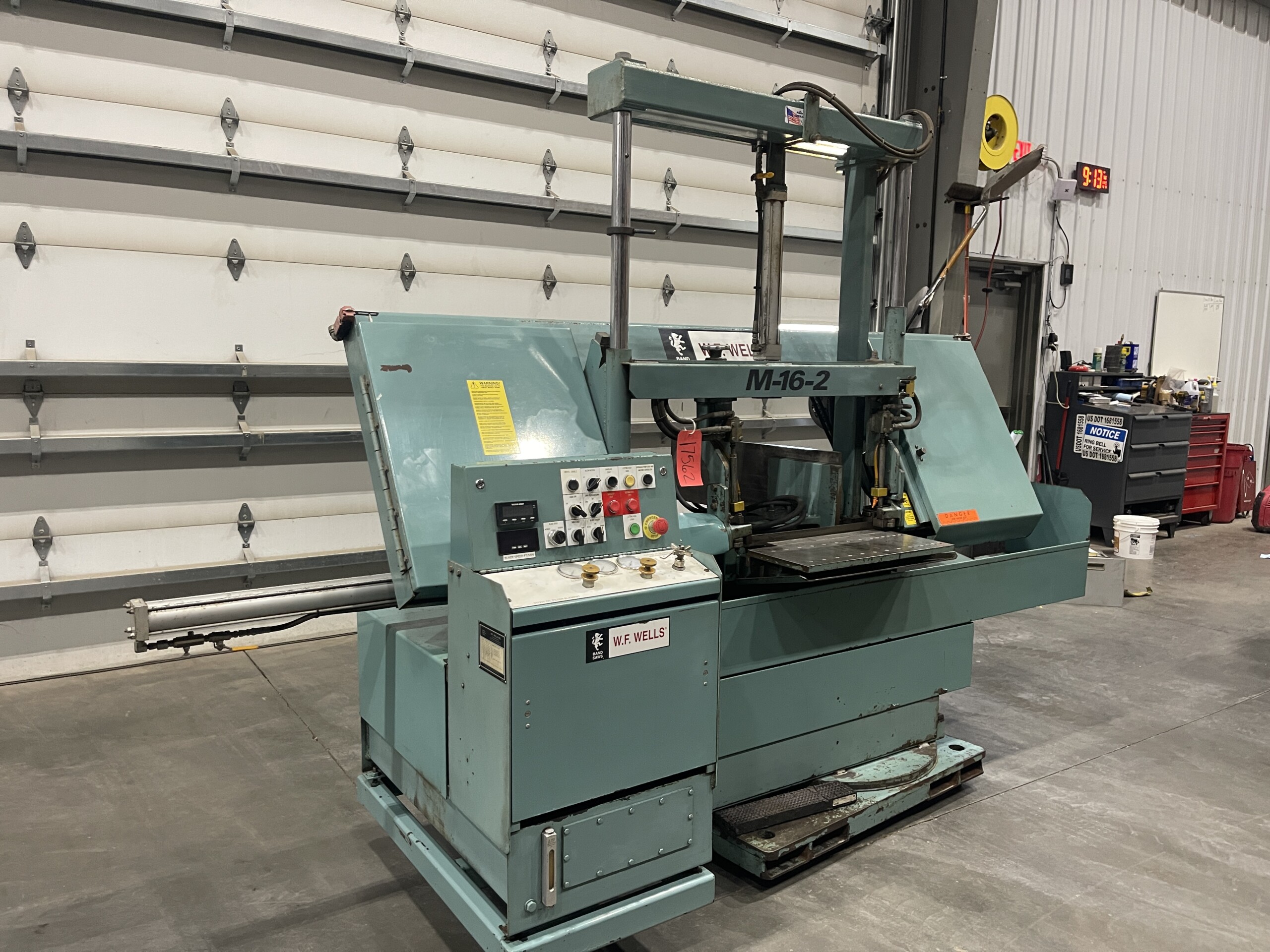

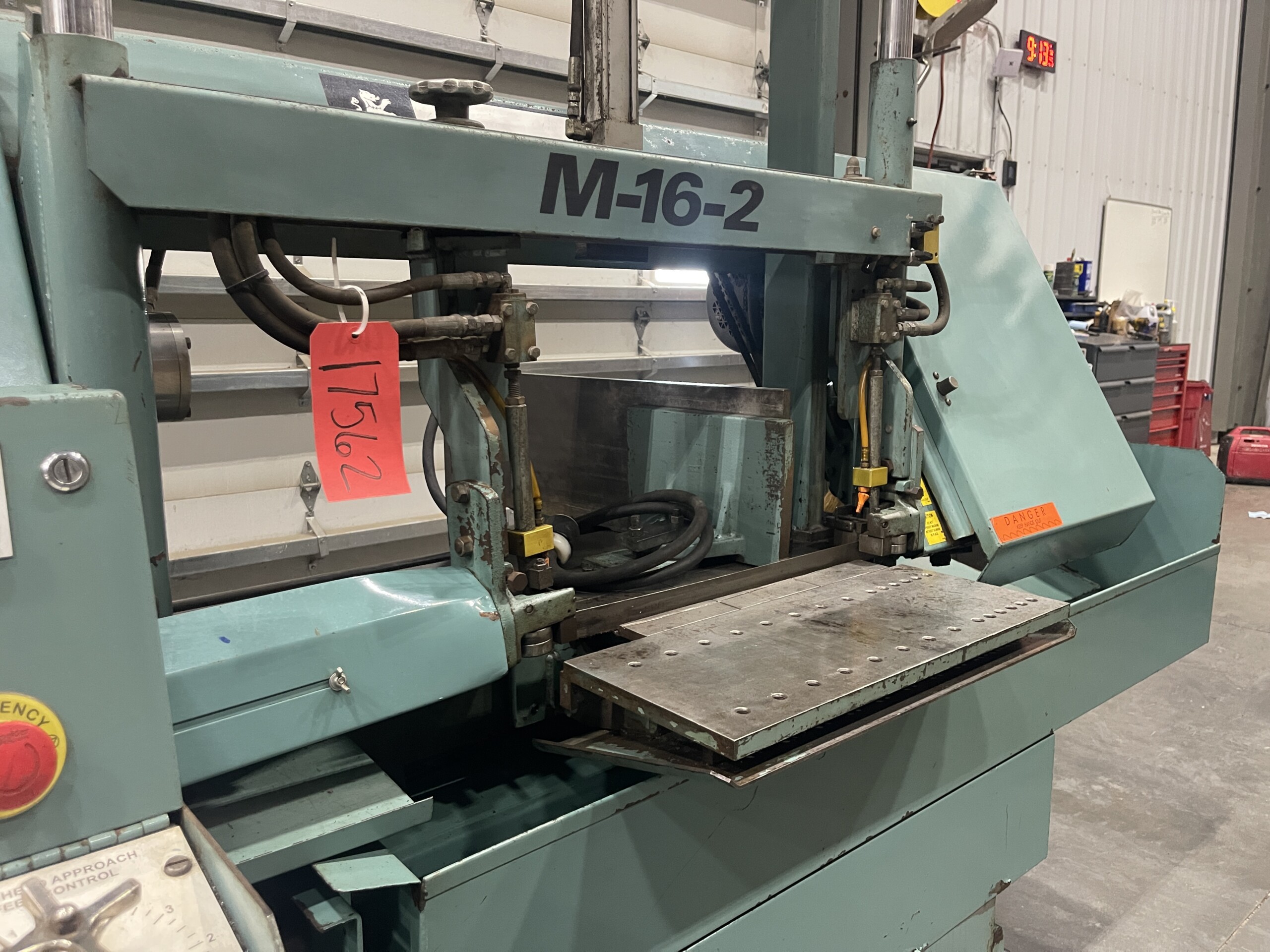

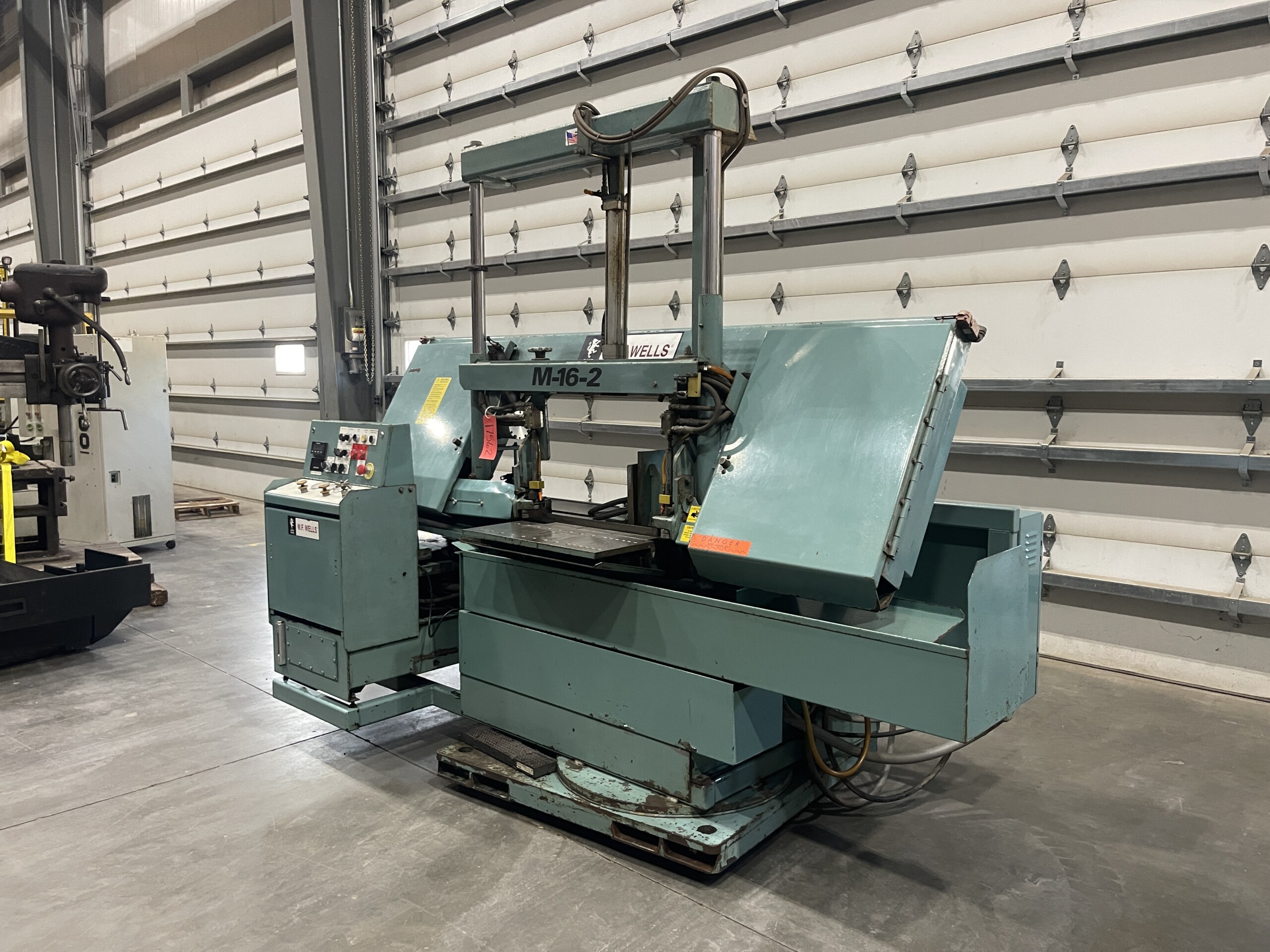

WF Wells 16″ x 26″ Dual Post Horizontal Saw, Model M-16-2
Asset # 17562
Specifications:
Capacity: 16″ H X 26″ W @ 90°, 16″ H X 16″ W @ -45°
Weight Capacity: 5,000 lbs
Blade Speed: 60-500 SFPM
Blade Size: 1¼” X .042″ X 16′ 8″
Blade Guide: Rollers and Carbide Side Blocks
Blade Tension: Hydraulic
Bandwheel Size: 20″
Vise: Hydraulic
Blade Drive: 7½ HP, AC Vector Drive
Sawing Force: 0-750 lbs
Coolant Capacity: 15 Gallons
Hydraulic Capacity: 20 Gallons
Hydraulic Drive: 2 HP Motor
Work Height: 35″
Hydraulic Swivel Base with Miter Vise, Single Direction

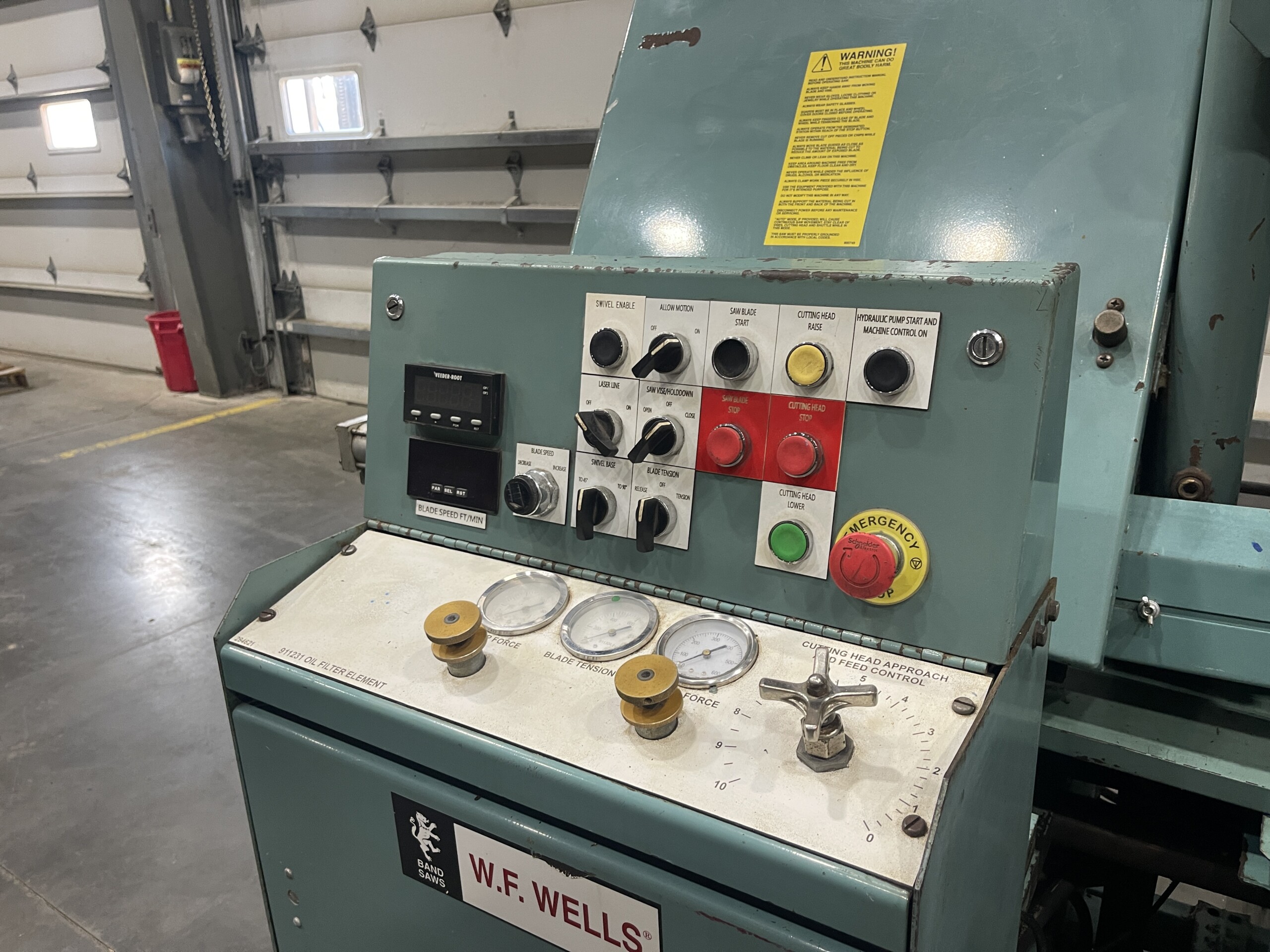

Digital Angle Display
In Feed Roller, Back of Saw Bed
Electronic Door Interlocks
Shipping Weight: 3,800 Shipping Dimensions….120”L x 60”W x 90”H
Electrics: Wired to NFPA 79 Machine Tool Standards
Preliminary Specifications – Subject to Verification
