Fixturing
Showing all 23 results

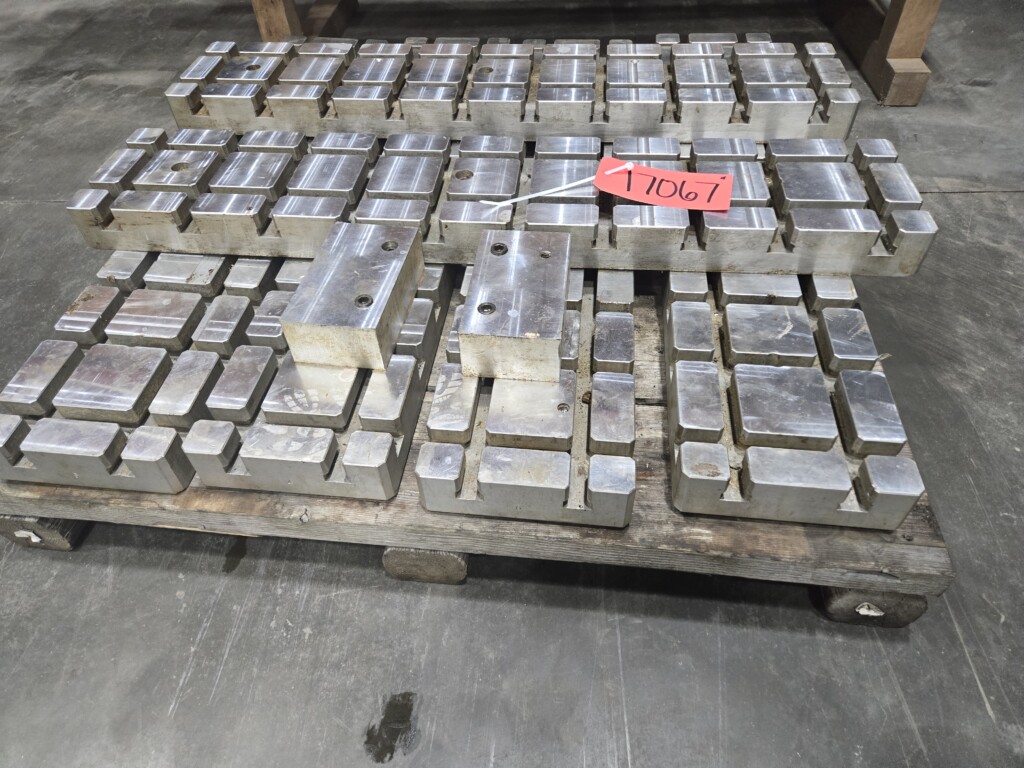

Aluminum Fixturing Plates
Aluminum Fixturing Plates Asset #17067
Asset Number: 17067

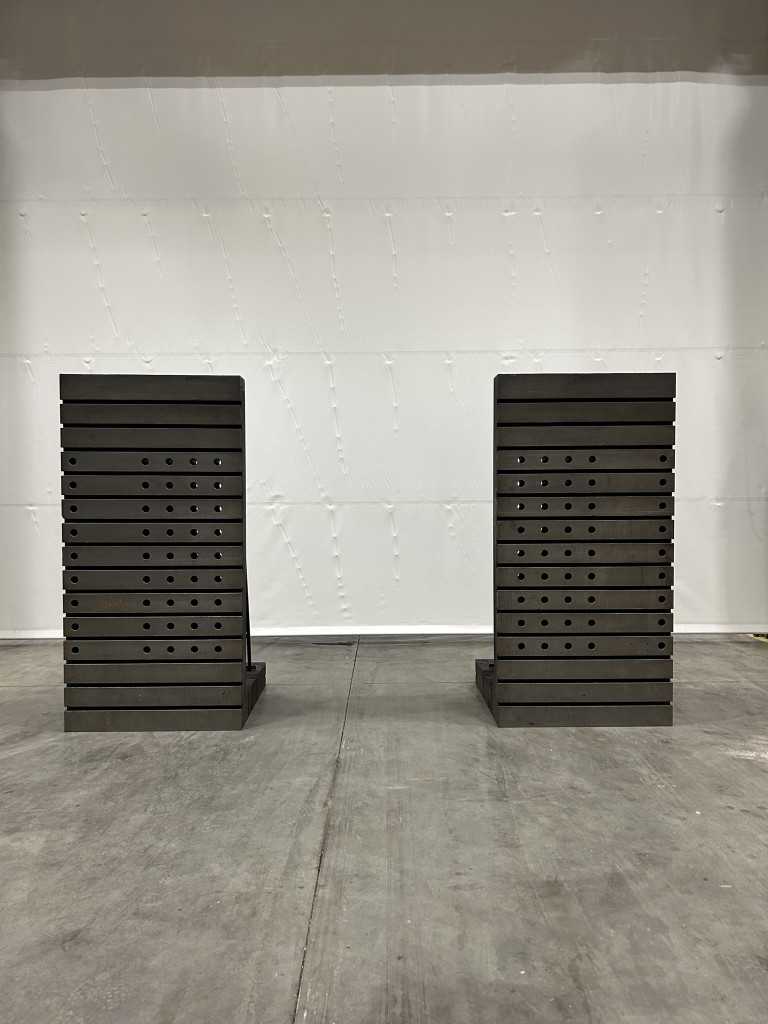

Betz 45″ x 90 3/4″ Pair of Angle Plates
Betz 45" x 90 3/4" Pair of Angle Plates Asset # 16507 Specifications: Face Dimensions 45" x 90 3/4" Depth 45" T-Slot Center to Center Distance 6" T-Slot Size 1 1/8" Hole Diameter 1 7/8" Hole Spacing 6" Approximate Weight 8,000 each (Actual Weight Upon…
Asset Number: 16507Bolster Plate

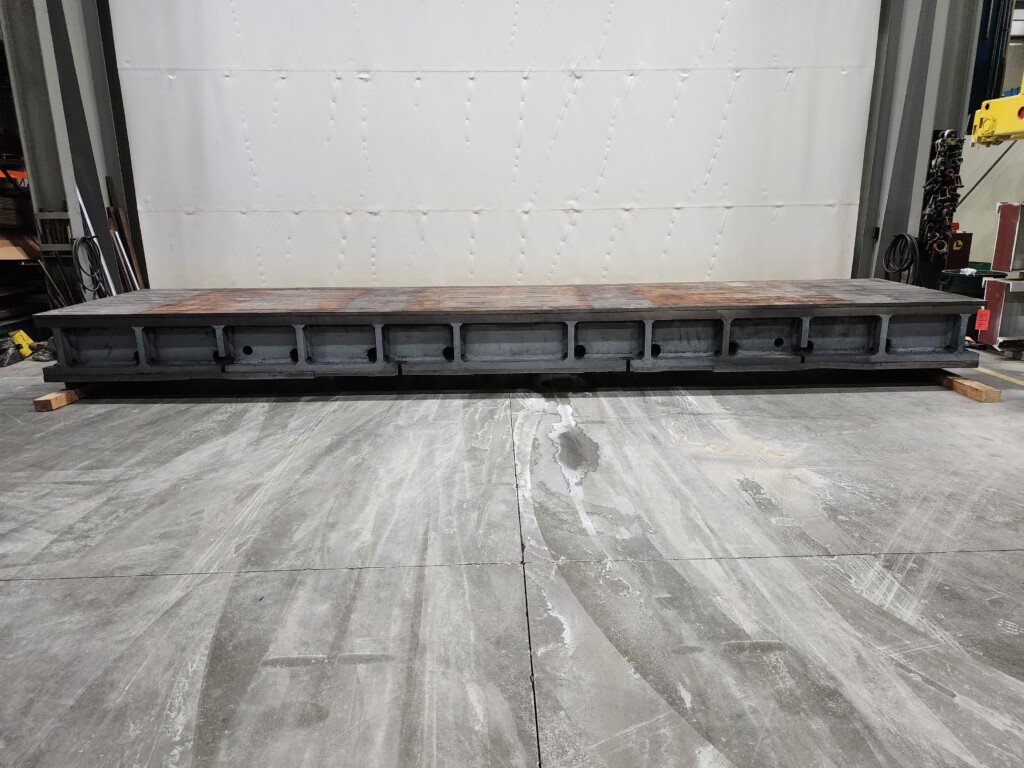

Bolster Plate Asset # 16916
Asset Number: 16916Bolster Plate

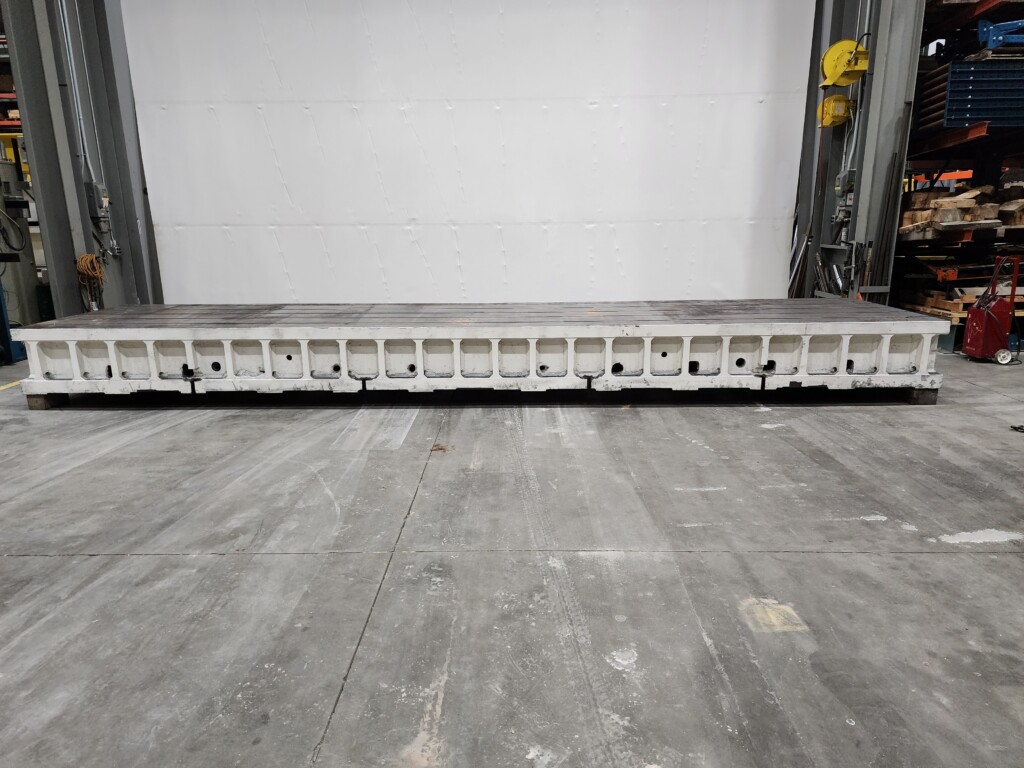

Bolster Plate Asset # 16915
Asset Number: 16915Bolster Plate

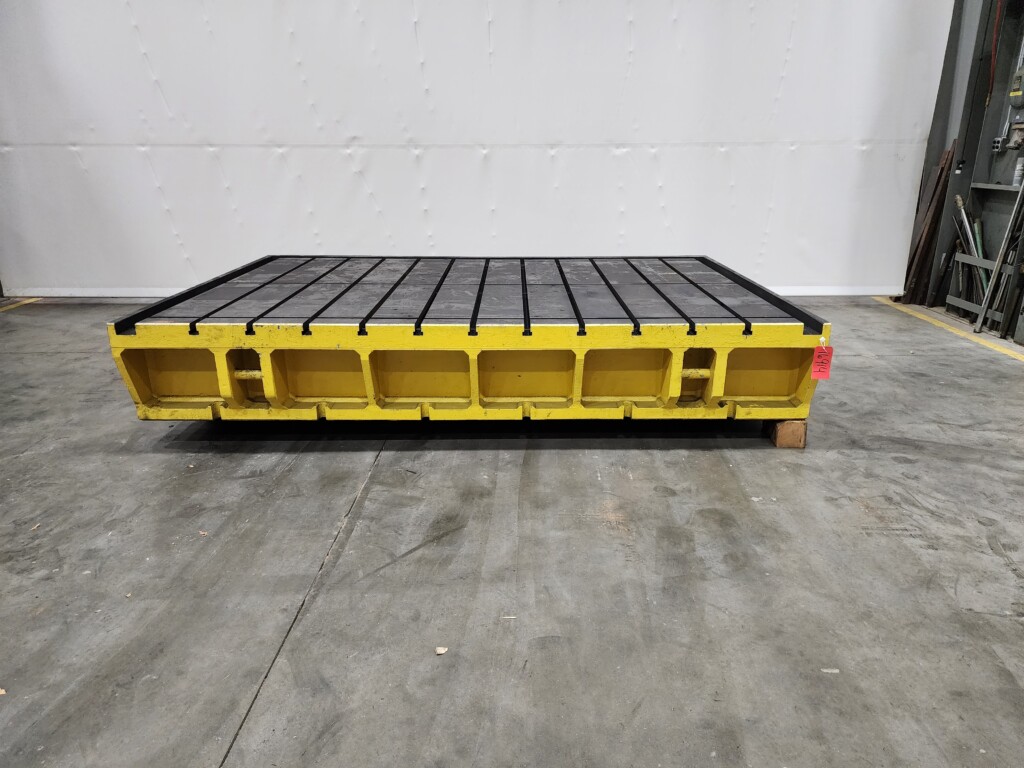

Bolster Plate Asset # 16914
Asset Number: 16914Bolster Plate
Bolster Plate Asset # 16913
Asset Number: 16913
Bolster Plate
Bolster Plate Asset # 16912 Roughly 11' x 8' x 20"

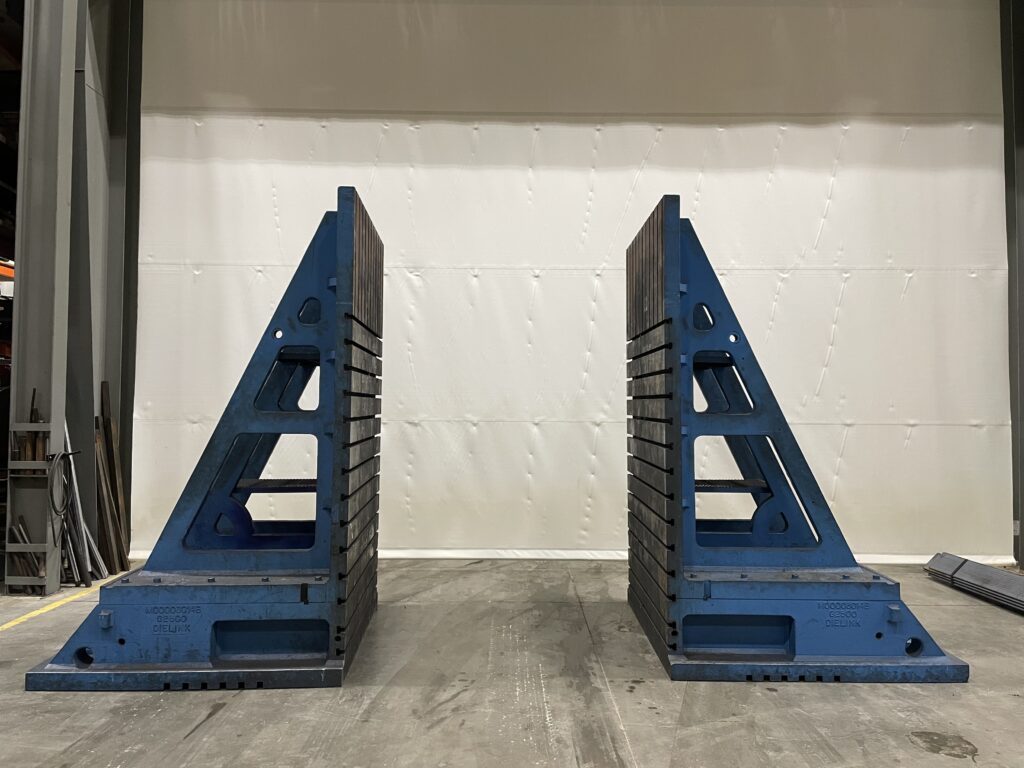

Asset Number: 16912DieLink Synergis 114″ x 66″Angle Plates, Pair
DieLink Synergis 114" x 66"Angle Plates, Pair Asset #16013 Specifications for Each Plate: Angle Plate Face Dimensions: 96" x 66" Rise Plate Face Dimensions: 18" x 18" Angle Plate Bottom Depth: 54" Riser Plate Bottom Depth: 68" Vertical T-Slot Length: 30" T-Slot Opening Width: 1…

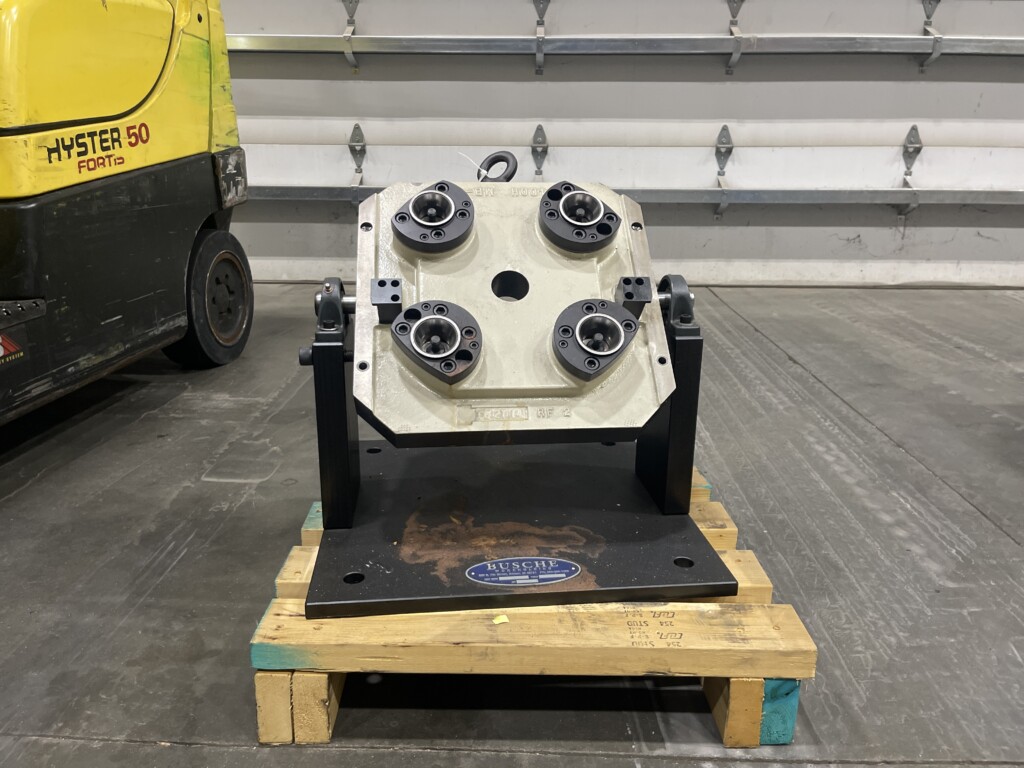

Asset Number: 16013Fixture Tables
Fixture Tables Asset # 17617

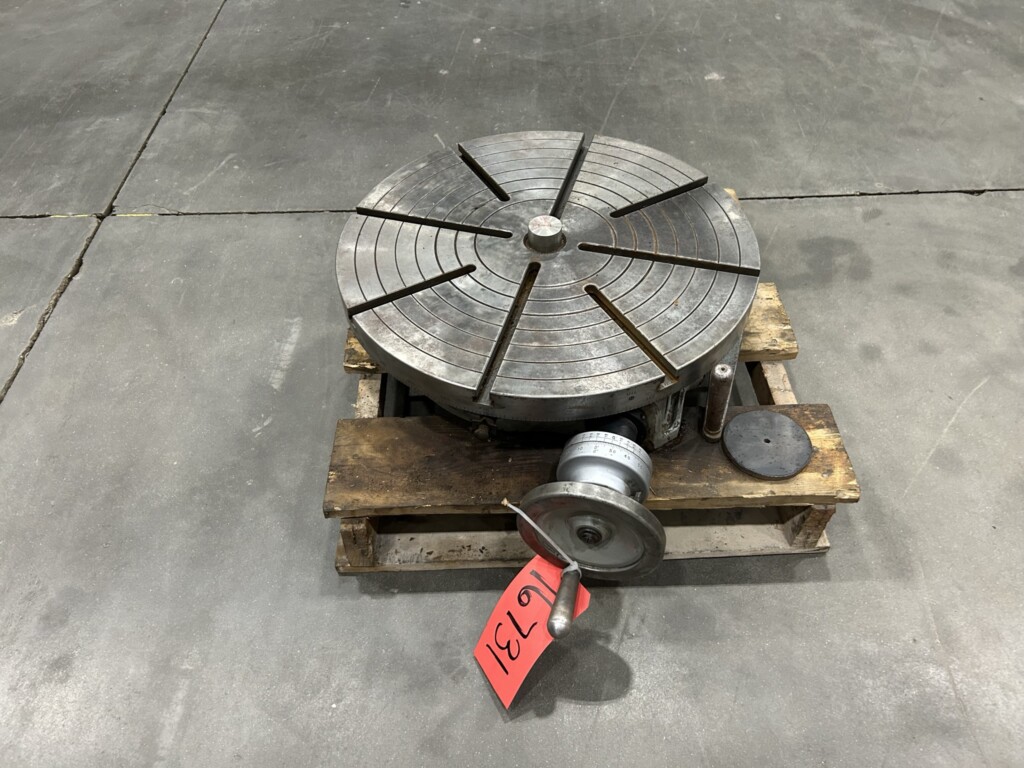

Asset Number: 17617Rotary Table
Asset Number: 16731T-Slotted Table

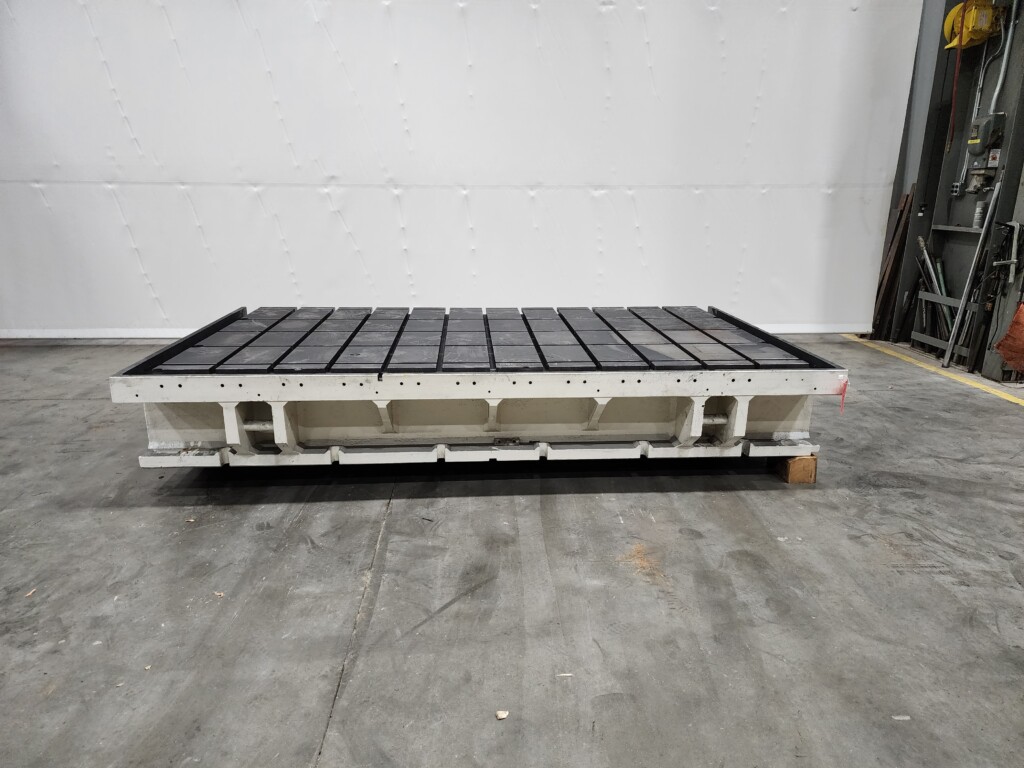

Asset Number: 16538Table Risers
Table Risers Asset # 16911 Roughly 11' x 8 ' x 21"

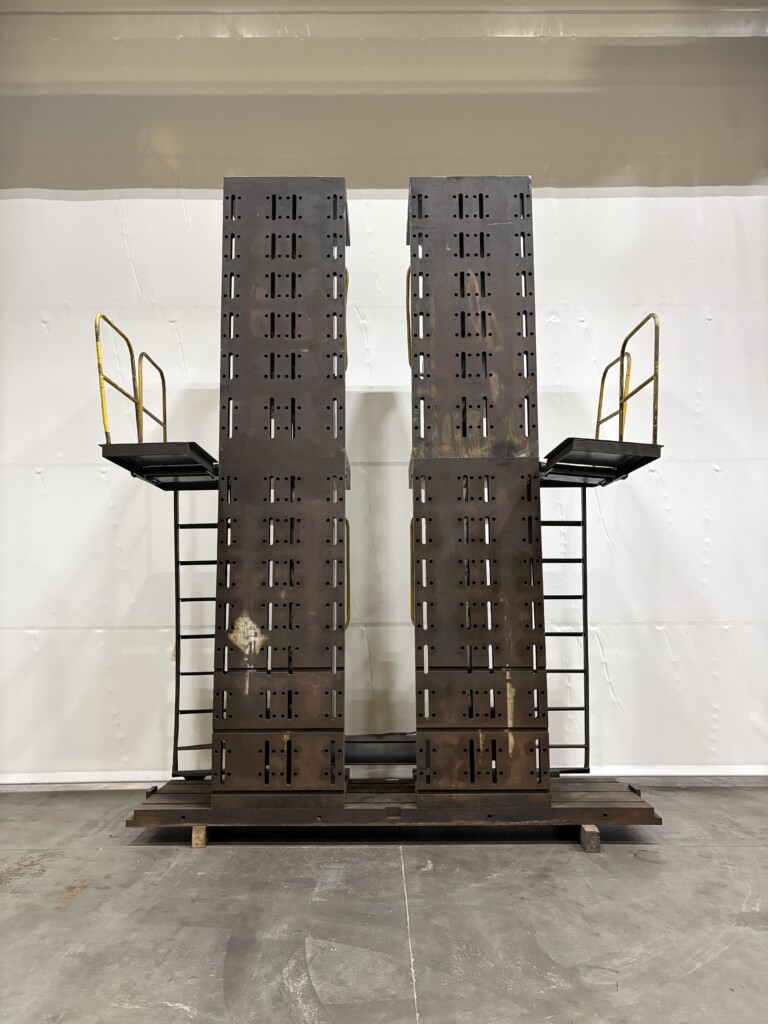

Asset Number: 16911180″ x 36″ x 36″ Giddings & Lewis Angle Plate, Pair
Giddings & Lewis 15' (180") x 36" x 36" Angle Plate, Pair Specifications on Lower Set: 2-G&L: 36" Wide x 96" Tall x 36" Deep Mounted to a T-Slotted Floor Plate: 12' Long x 36" Wide x 5" Thick 1.5" T-Slots @ 6", 18", 30"…
Asset Number: 12152J

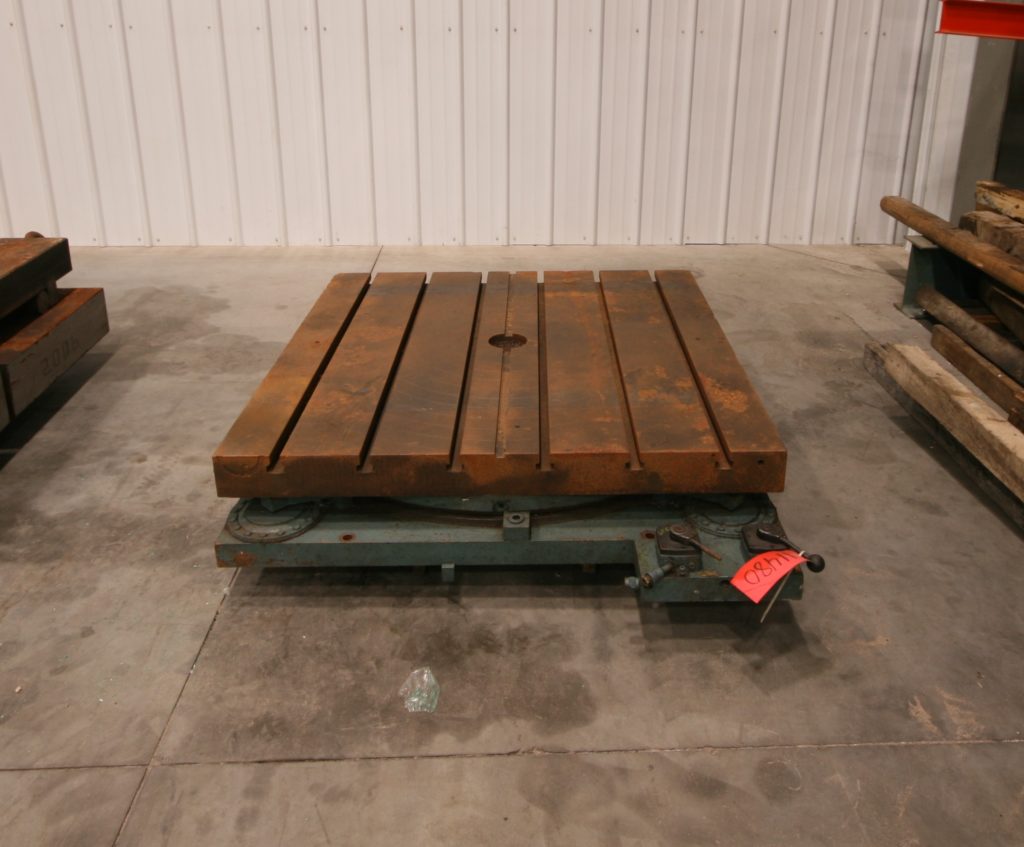

4′ x 4′ Air LIft Rotary Table
4' x 4' Air Lift Rotary Table Plate Dimensions 4' x 4' x 4"Overall Height 10" T-Slot Throat Dimension 5/8" T-Slot Base Dimension 1 7/16" Distance between T-Slots 7 1/2" Stop Positions at every 30 Degrees. Preliminary Specifications - Subject to Verification
Asset Number: 11480

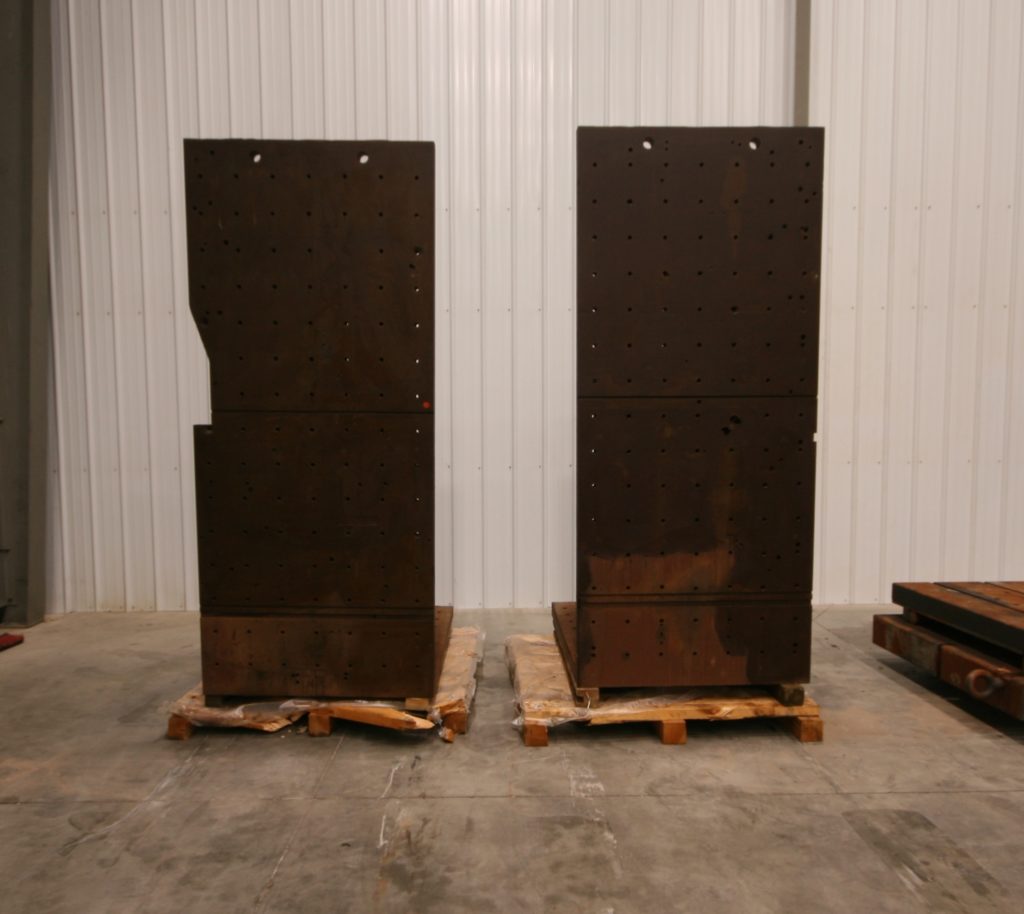

52″ x 42″ x 96″ Angle Plates
Recently Acquired. Please contact our office for more information.
Asset Number: 9988

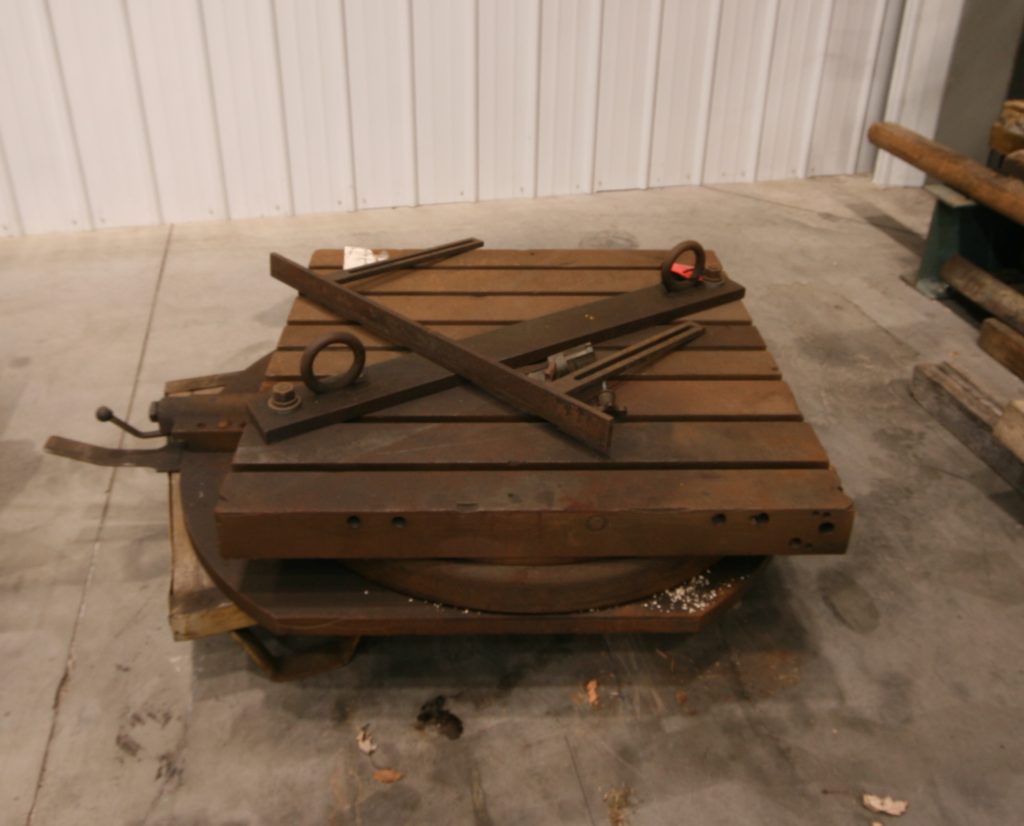

56″ x 36″ Rotary Table, 6 T-Slots
56" x 36" Rotary Table, 6 T-Slots Size of T-Slot Throat 7/8" Size of T-Slot Base 1 3/8" Preliminary Specifications - Subject to Verification
Asset Number: 10335

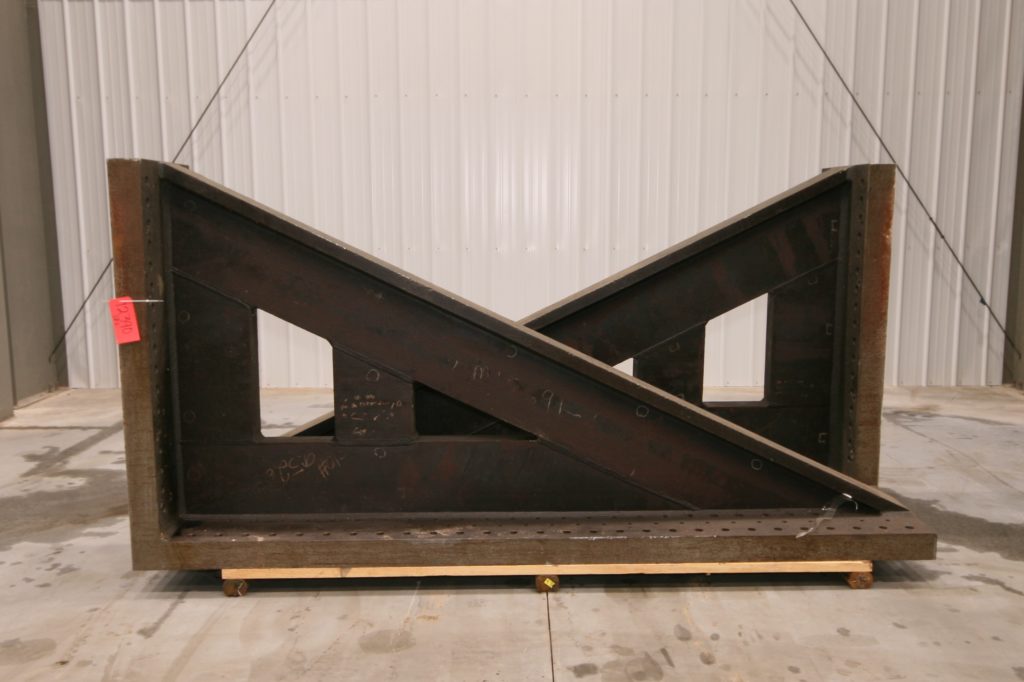

Angle Plates, 119″ x 23 1/8″ x 59 1/2″ Base Drilled & Tapped
Angle Plates, 119" x 23 1/8" x 59 1/2" Base Drilled & Tapped Face Dimensions 23 1/8" x 119 1/2" Base Dimensions 23 1/8" x 59 1/2" Drilled and Tapped Holes, Symmetrical Holes 18", 12", & 6" On Center Preliminary Specifications - Subject to Verification
Asset Number: 12390Fixturing Plate
Asset Number: 15589

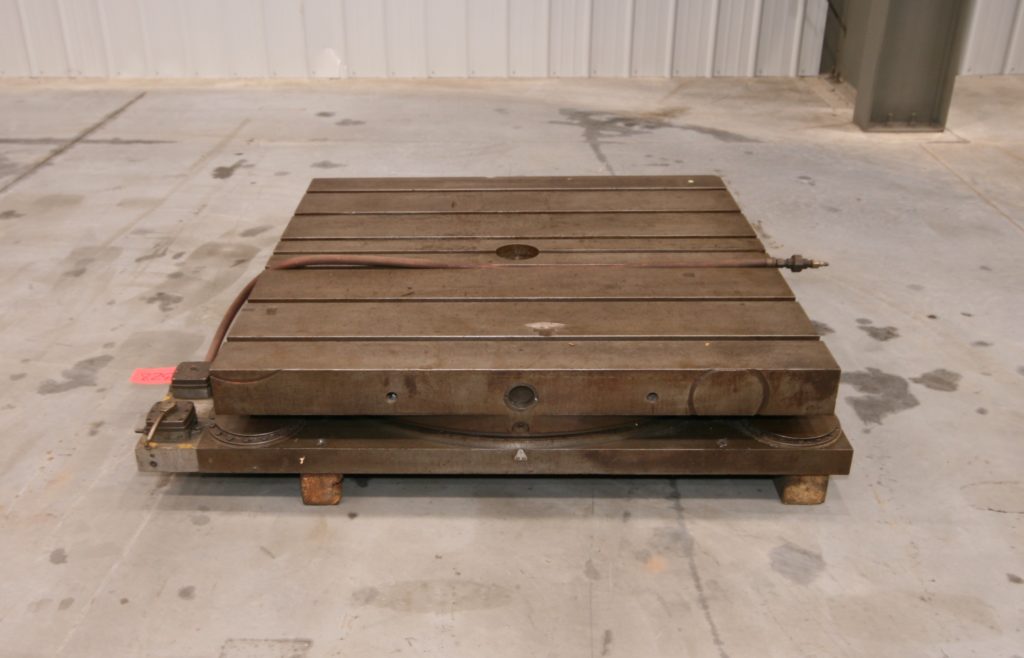

Giddings & Lewis 48″ x 48″ Airlift Rotary Table
Giddings & Lewis 48" x 48" Airlift Rotary Table Serial # 23.990 Asset # 12328 Specifications: Size of Table 48" x 48" Overall Height 9 1/2" Size of T-Slots 7/8" Number of T Slots 6 Center Distance of T Slots 7 1/2 Preliminary Specifications -…

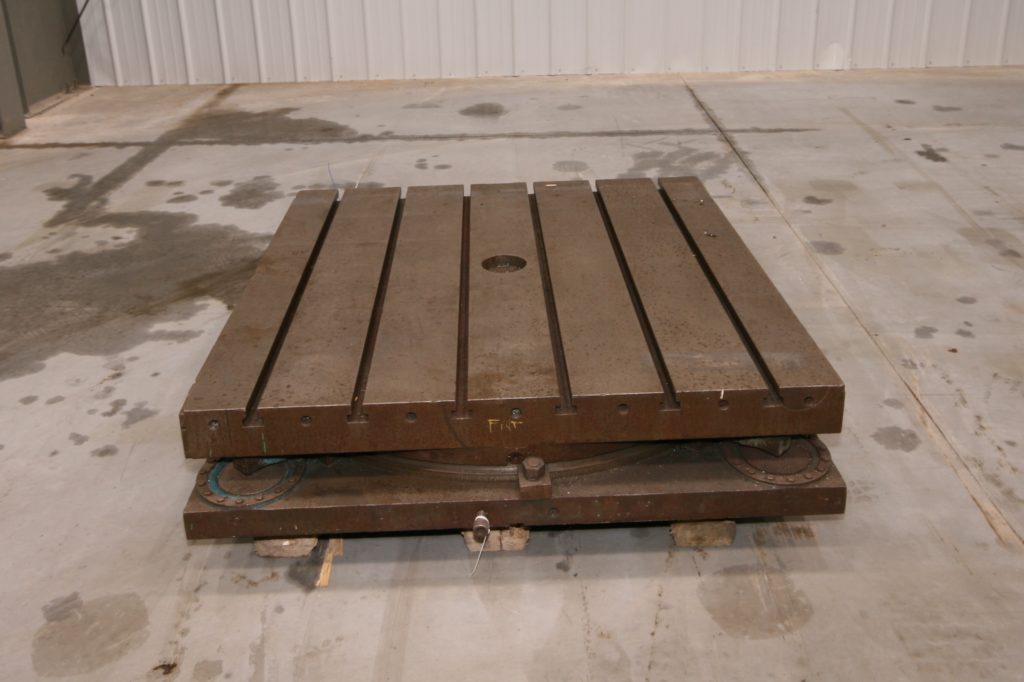

Asset Number: 12328Giddings & Lewis 48″ x 48″ Airlift Rotary Table
Giddings & Lewis 48″ x 48″ Airlift Rotary Table Serial # 040-114768 Asset # 12329 Specifications: Size of Table 48″ x 48″ Overall Height 9 1/2″ Size of T-Slots 7/8″ Number of T Slots 6 Center Distance of T Slots 7 1/2 Preliminary Specifications –…
Asset Number: 12329

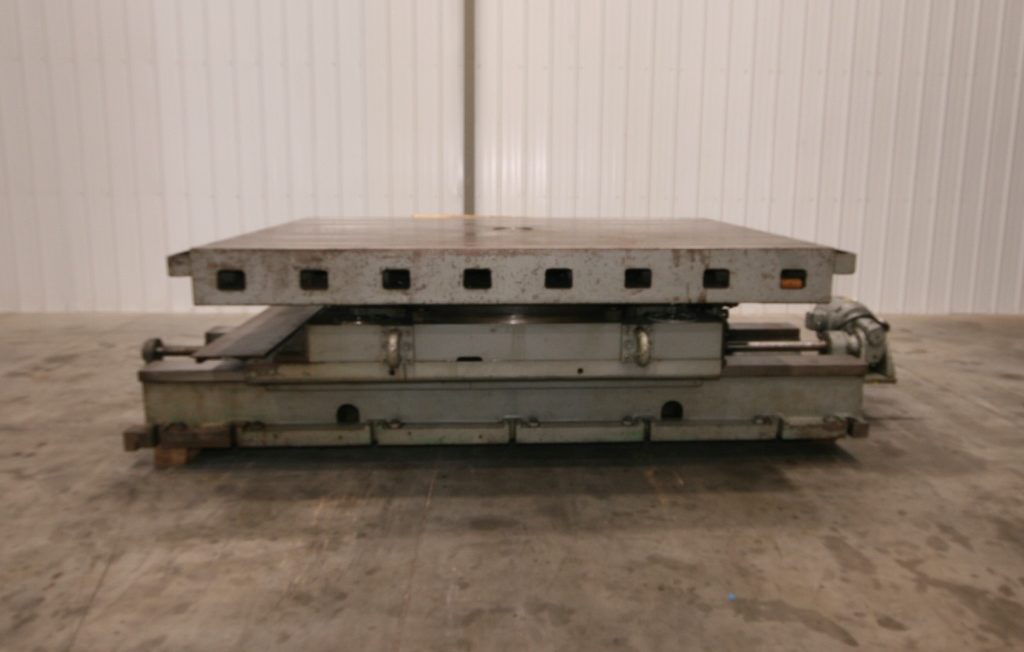

Giddings & Lewis 6′ x 8′ Air Lift Rotary Table
Giddings & Lewis 6' x 8' Air Lift Rotary Table Serial # 320 Asset # 12973 Specifications: Table Dimensions 6' x 8' Left/Right Movement 52" 4 Position Indexing at 0, 90, 180, 270 degrees Motor 3 HP, 1760 RPM PSI 200 Number of T-Slots 6…

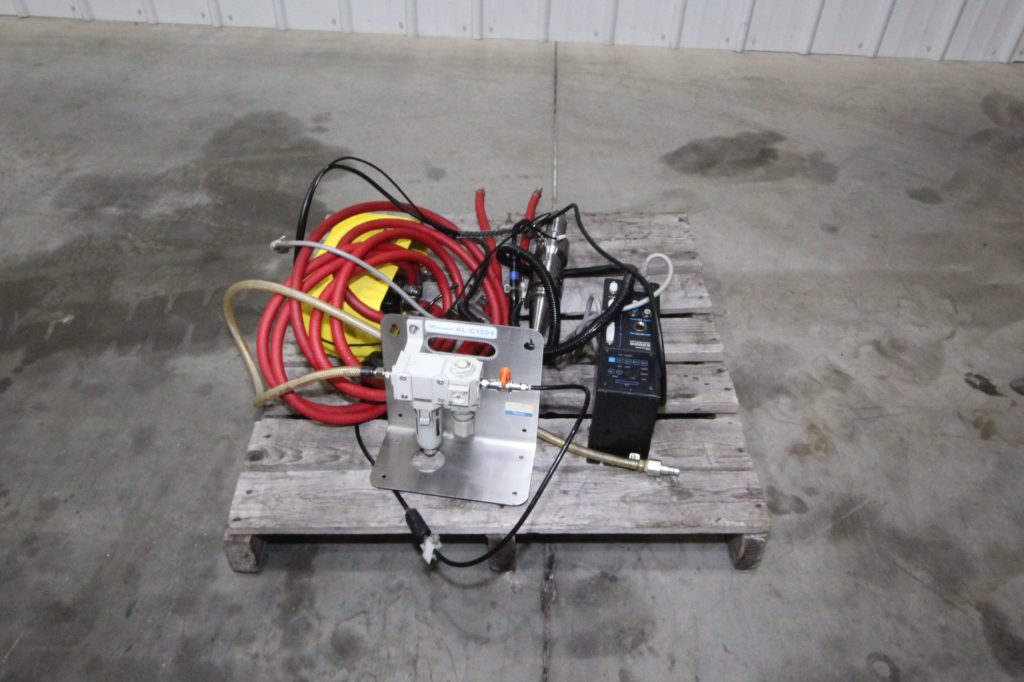

Asset Number: 12973Nakanishi Model NE211, E3000C Controller with Model NE5510
Nakanishi Model NE211, E3000C Controller with Model NE5510 Serial # Control D5522312, Spindle ABF40577 Asset # 13999 Control Specifications: Input AC100V-240V, 50/60 HZ, 1 Phase, 1.8 Amps Output AC33V, 0-1 KHz, 3 Phase, 2.4 Amps Operating Temperature 0-40 deg. Celsius Max. Ambient Humidity 85% Speed…

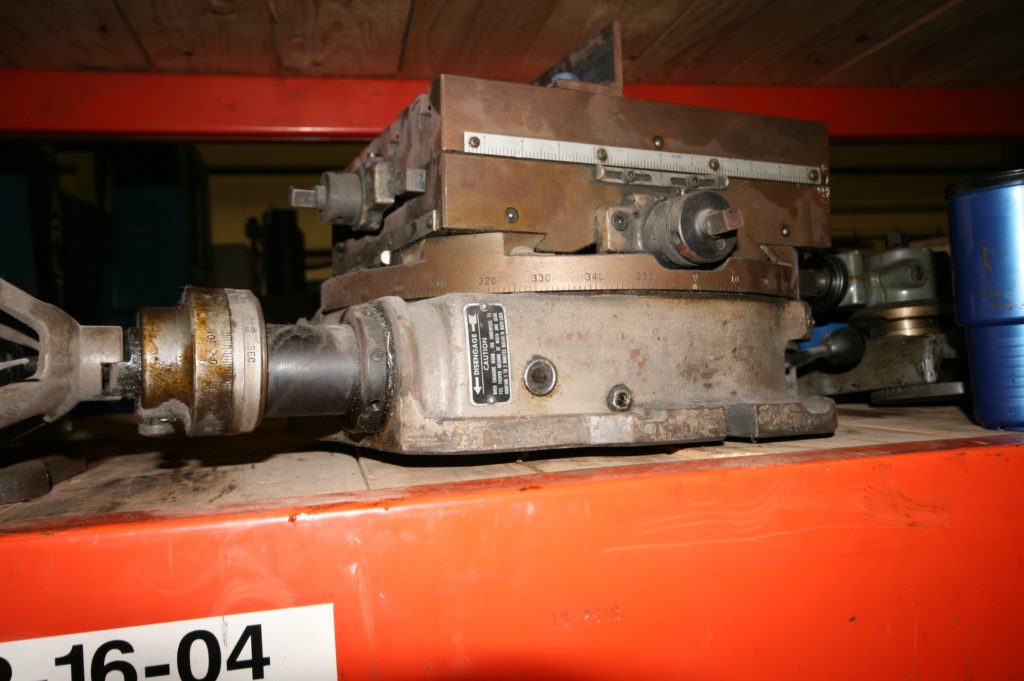

Asset Number: 13999Troyke 11″ x 11″ Rotary Table
Troyke 11" x 11" Rotary Table Asset # 10261 Specifications: Table Dimensions 11" x 11" T-Slot Dimension 13/16" T-Slot Spacing 2 1/2" Table Travel In/Out & Left/Right 8" Overall Table Height 9 1/4" Preliminary Specifications - Subject to Verification
Asset Number: 10261
