Description

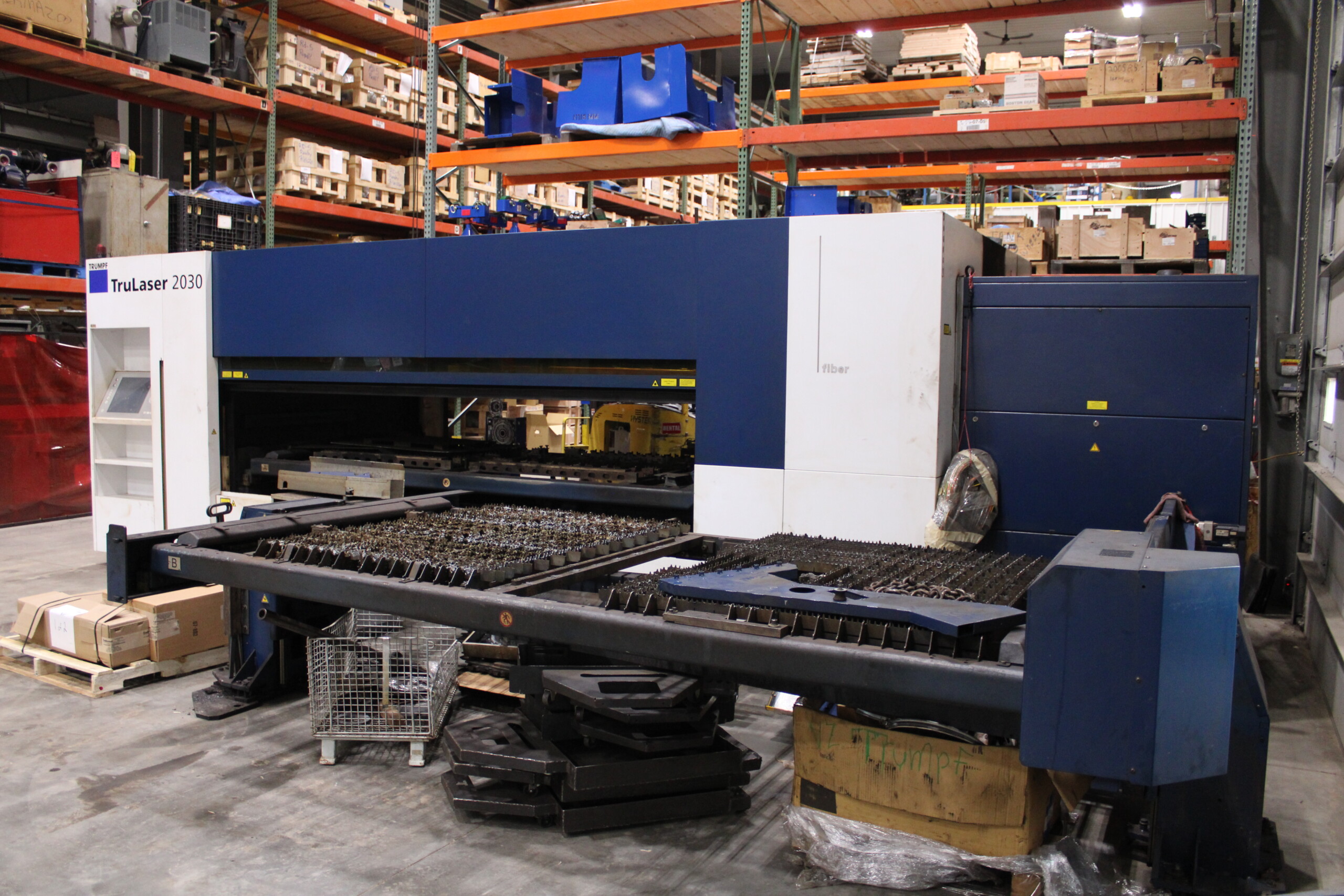

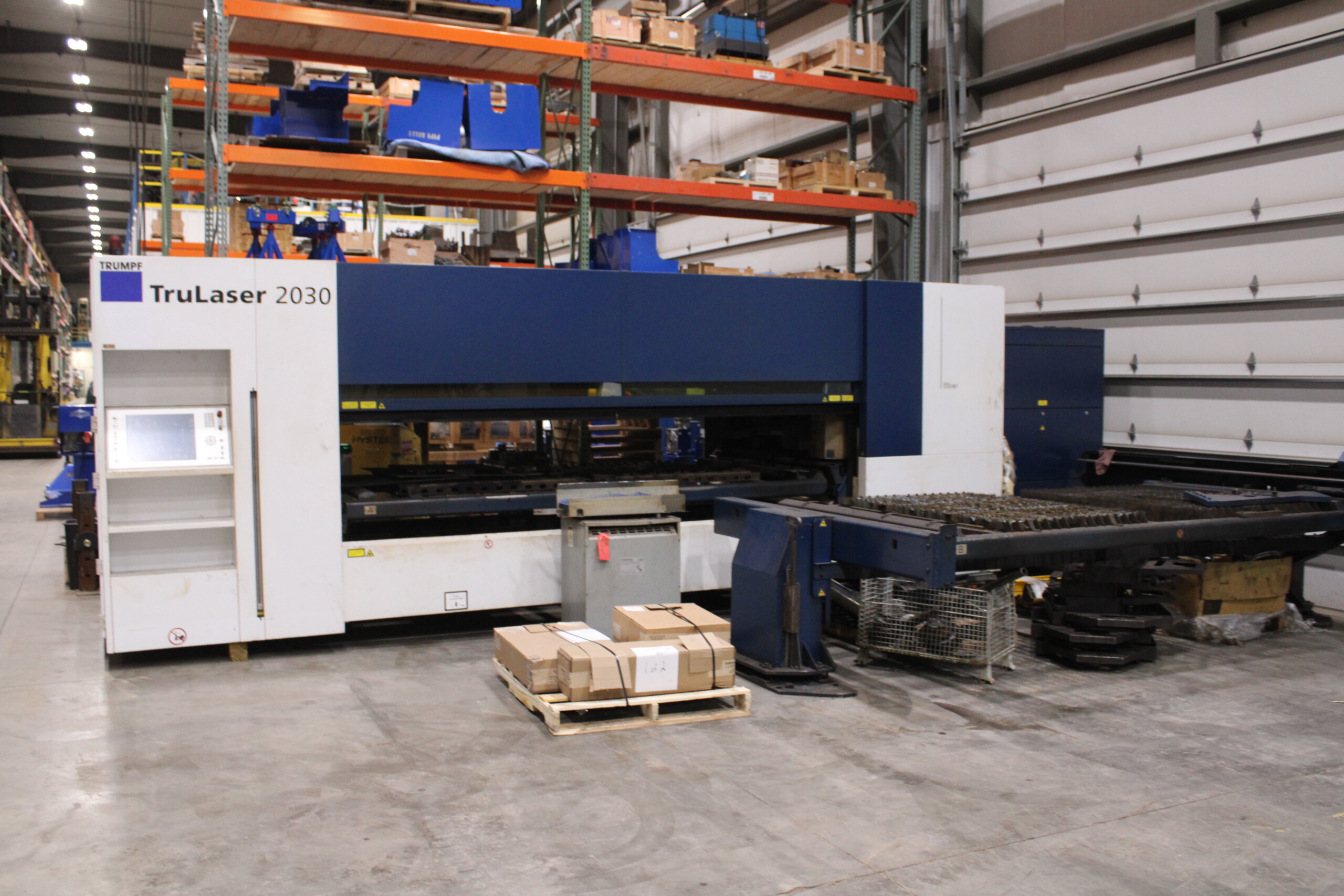

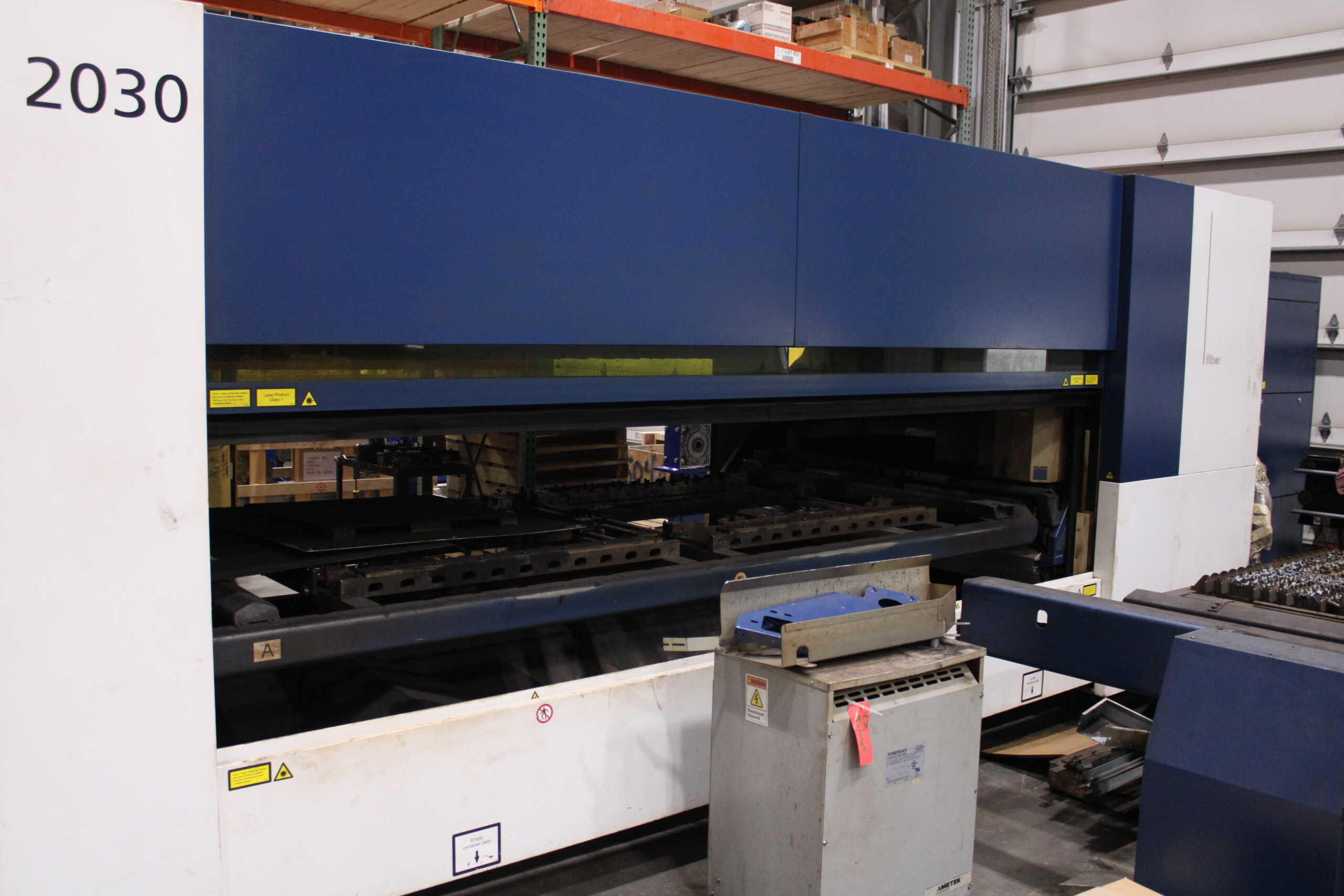

Trumpf TruLaser 2030 Fiber Laser, 4000 Watt – 2017
Asset # 17903
Serial # A0212L0105
MACHINE SPECIFICATIONS
Maximum Speed Simultaneous Speed: 5,511.81 in/min
Working Range
X-Axis Travel: 121 in
Y-Axis Travel: 62 in
Maximum Workpiece Weight: 1,984 lbs
Laser Specifications (TruDisk 3001)
Maximum Laser Power: 3000 W
Maximum Material Thickness
Mild Steel: 0.79 in
Stainless Steel: 0.63 in
Aluminum: 0.47 in
Copper: 0.24 in
Brass: 0.24 in
Power Consumption
Average Power Input: 13 kW
Overall Dimensions
Length: 325.83 in
Width: 266.30 in
Height: 90.55 in
Weight
Basic Machine Weight: 17,086 lbs
Tru Laser 2030 (L72) fiber
Machine
– Working range in 118 x 59”
– Closed machine frame with integrated components
– Working range accessible from front and rear side
– Motion unit with flying optics for high precision processing
– Maintenance free servo-drives
– Moving catcher
– Enclosed beam delivery via fiber optic cable
– Integrated chiller for laser and machine
– Integrated electrical cabinet

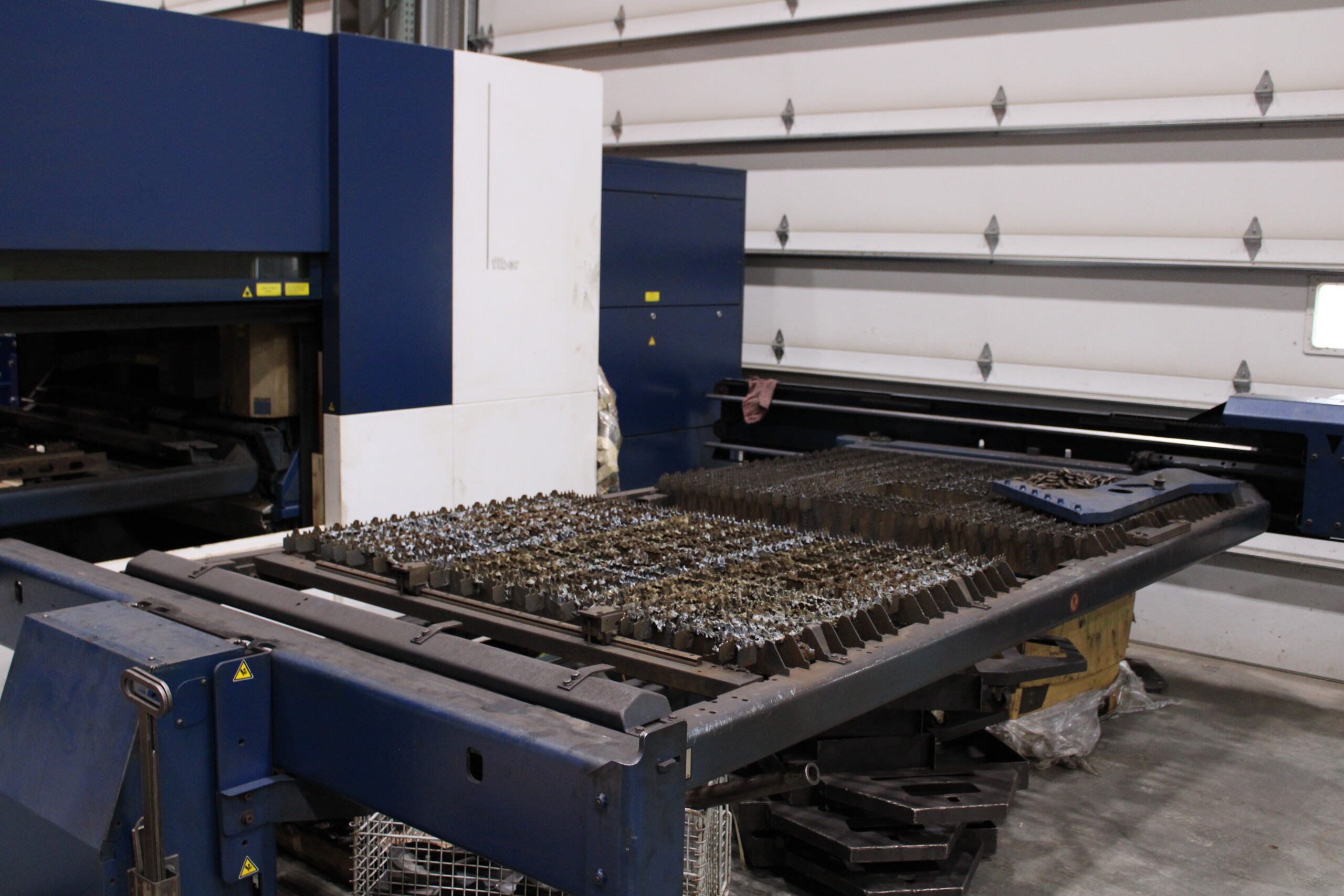

– Fully automatic pallet changer
– Power supply for Tru Disk by the machine
– Transversal slag drawers
– Work area lighting
– Positioning laser diode
– PierceLine
– FocusLine
– NitroLine
– Transport and assembly device
– Copper cutting package (includes cutting data)
– Brass cutting package (includes cutting data)
– MicroWeld
TRUMPF laser

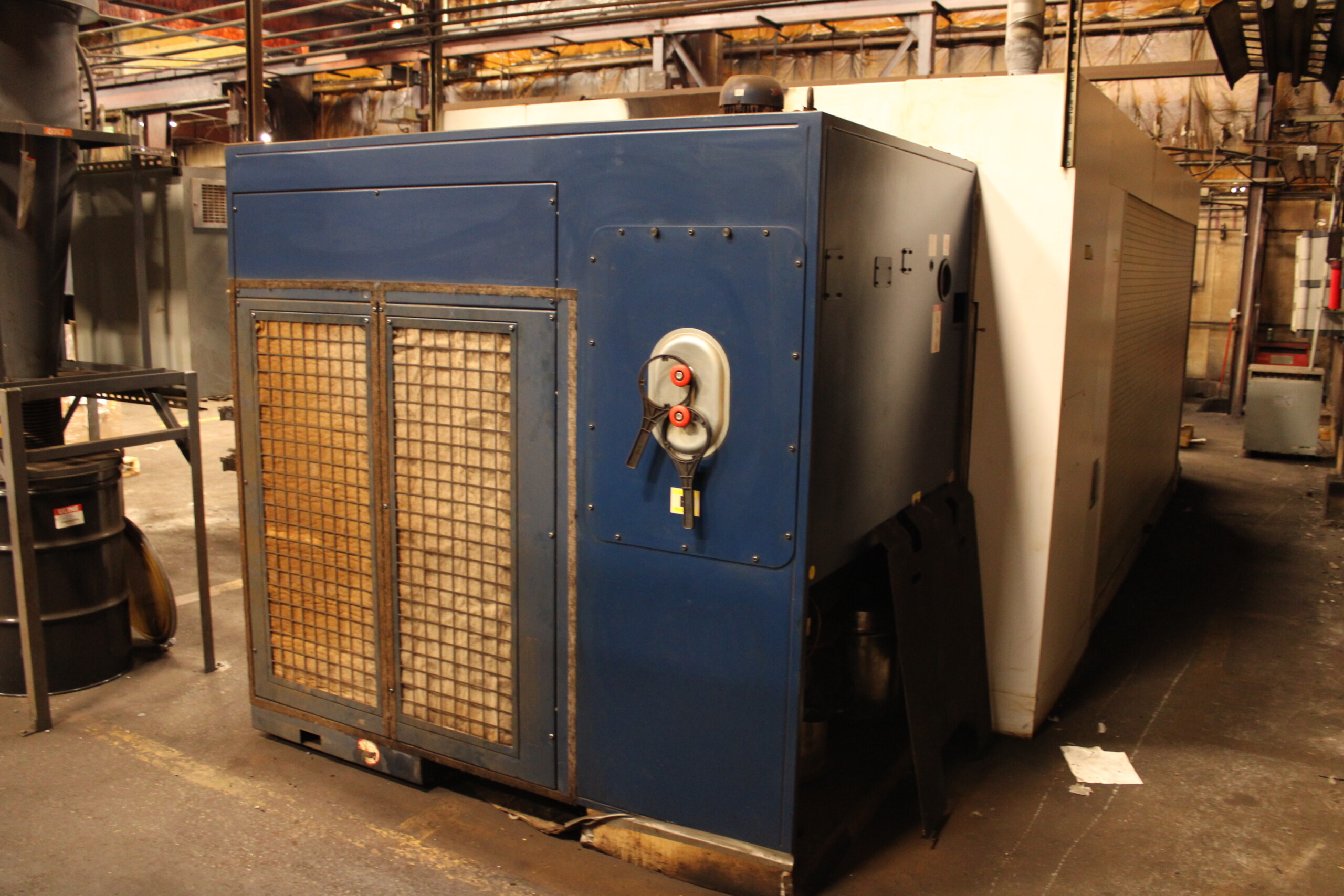

– Integrated solid-state laser Tru Disk 3001
– Excitation by pumping diodes
– Fiber optic cable according standard layout (laser next to machine)
– Laser power control
– Logbook function laser
Cutting unit
– Universal Cutting head
– Single cutting head strategy
– Protection glass to avoid lense contamination
– Control Line: automatic height control and sheet edge detection
Control
– Easy drawing module
– Easy shop floor programming
– Fast post production

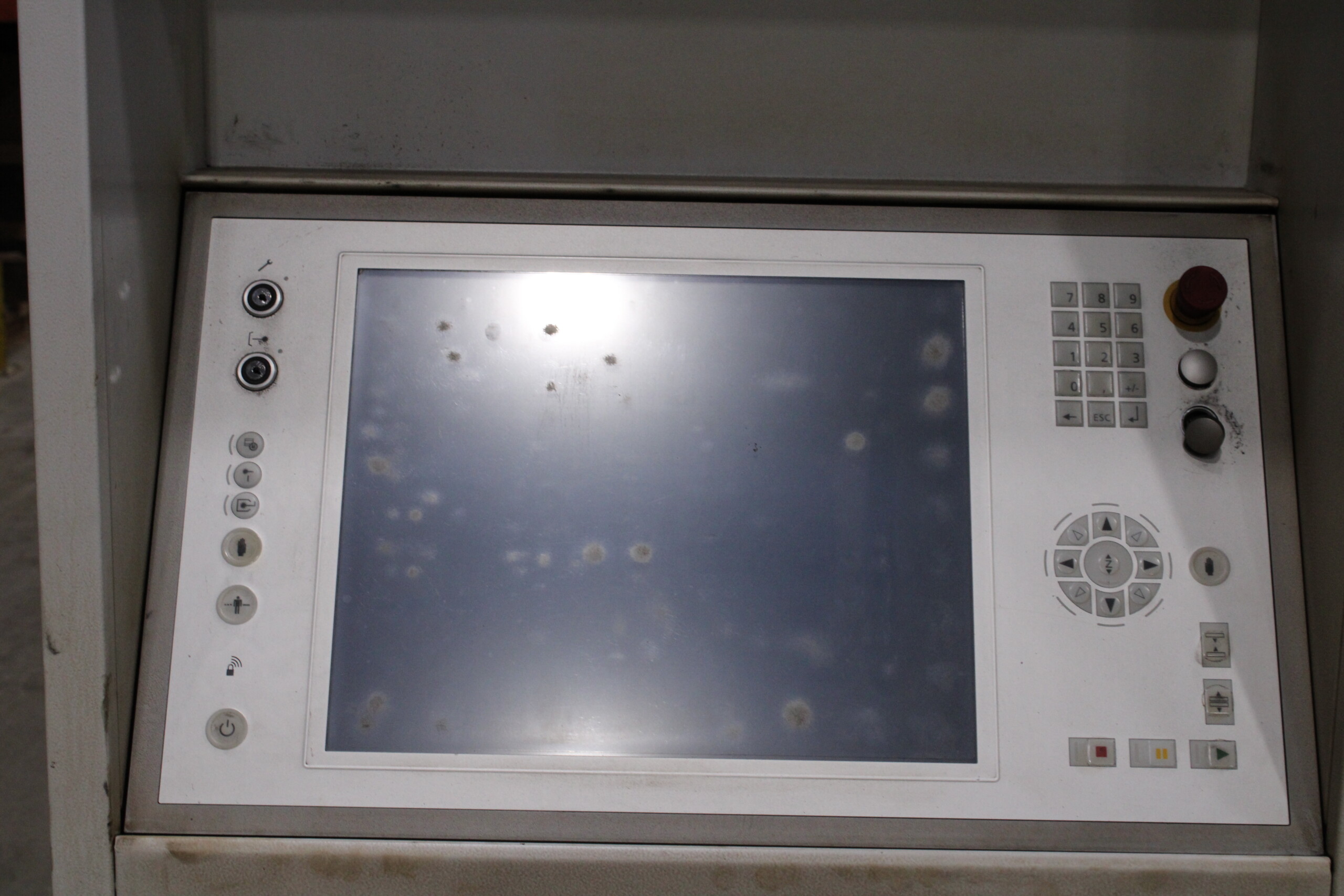

– 19″ Touch screen
– Integrated technology data
– Automatic shutdown
– Programmable cutting gas pressure
– ContourLine
– FastLine
– Teleservice via internet
– Microjoint-Handling on the user-panel
– Adjustable dynamics
Data transmission
– RJ45 -network connection and a USB interface
Safety
– CE label
– Compact dust extractor
– Machine enclosure with certificated windows
– Motorized front dorr and movable back door
– Closed machine roof
Software
– TruTops CAD (Off line version): Create and edit drawings easy and fast
With the following configuration:
Voltage 460 V
Frequency 60 Hz
Electrical standard JIC / NEC
Colour standard white – blue
Integrated Solid-state laser TruDisk 4001
Nozzle changer (8-nozzle capacity)
BrightLine fiber
Compressed-air cutting (includes cutting data, further cutting gas connection)
Machine until 43°C ambient temperature
Documentation TruLaser 2030 (L72)
Software to machine equipment – TruTops Boost
Preliminary Specifications – Subject to Verification
