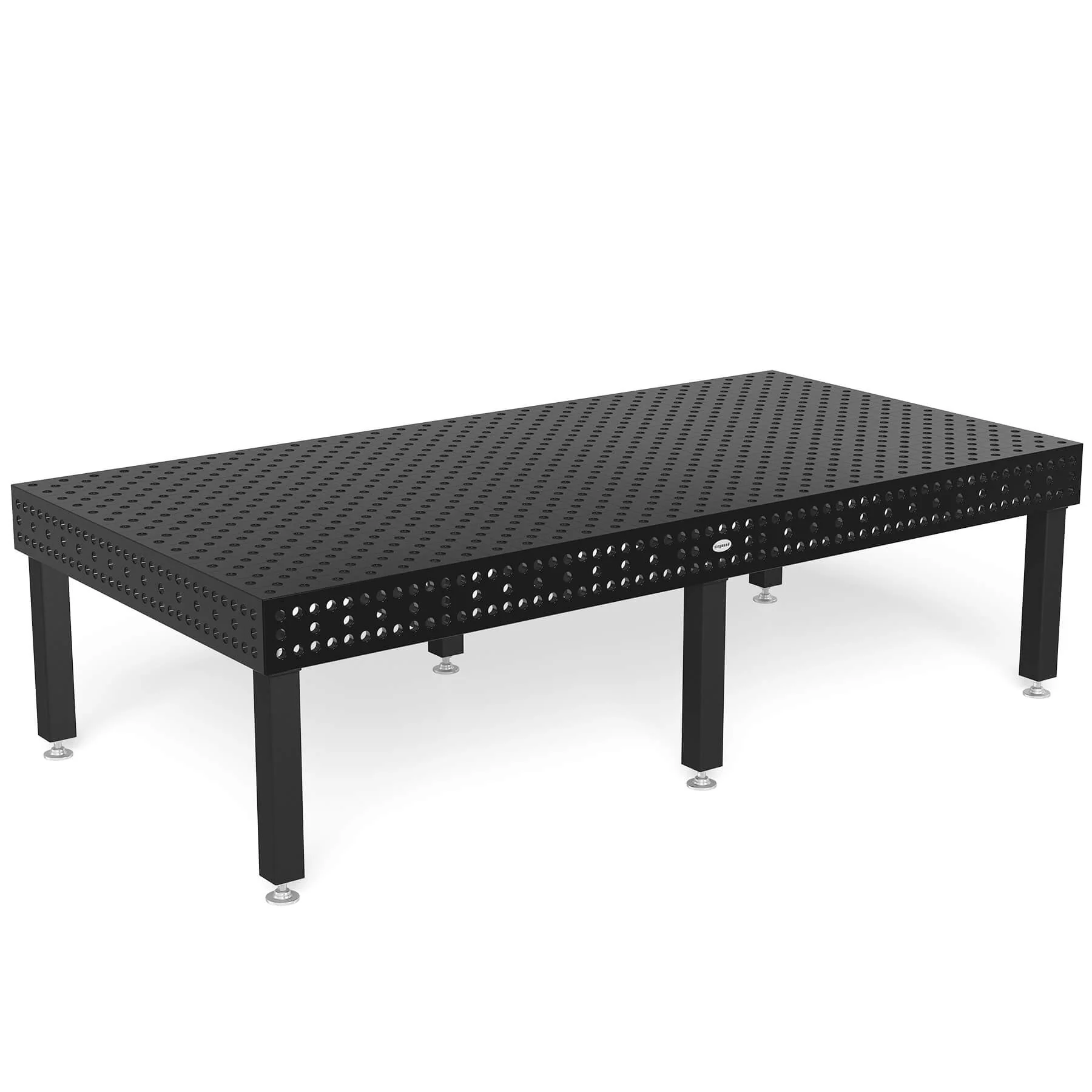

Siegmund 3,000×1,500mm 8.7 Series System 28 Welding Table, Model 4-280040.XD7D – NEW

Welding Table Specs and Features:

• Overall Tabletop Size: 3,000 x 1,500 x 200mm (118″ x 59″ x 7.87″)
• Borehole: Ø 28mm (1.10″)
• Welding Table Series: Professional Extreme 8.7 Series
• Welding Table Material Thickness: Approx. 24.5 – 27mm (0.96″ – 1.06″)
• Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
• Table Surface Hardness: 450-850 Vickers
• Official Siegmund Welding Table Part No.: 4-280040.XD7D
• Maximum Weight Load: 14,459 lbs. (Based on Even Distribution)
• Approximate Table Weight: 3,141 lbs. / 1,425 kg.

1. Boreholes on the Surface are in a Diagonal Grid Configuration.
2. Boreholes have a radius of 3mm (0.118″).
3. Radius 3mm (0.118″) / 6mm (0.236″) on table edges and corners.
4. Height of table side 200mm (7.87″) – Borehole spacing of table side 50mm (1.96″)
5. Metric Scaling on the surface.
6. Construction reinforced with ribbing.
