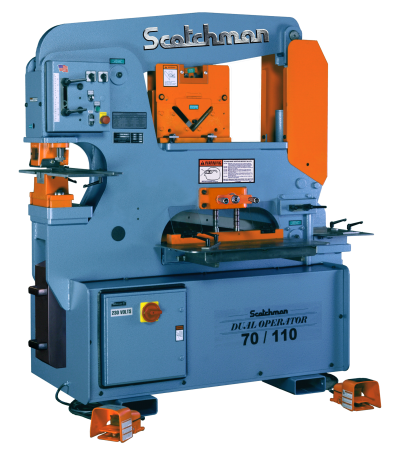

Scotchman 70 Ton Dual Operator Ironworker, Model DO 70/110-24M – NEW
SKU # 3010009
Specifications:
| Rated on: | 65,000 PSI Tensile |
| Punching Capacity | 70 ton 1-1/8″ in 3/4″ |
| Special Tooling | 4″ Max. Dia. |
| Throat Depth | 9″ |
| Flat Bar Shear (Sabre Blade – Std) |
110 ton 24″ Length 1″ x 6″ 3/4″ x 10″ 1/2″ x 14″ 3/8″ x 24″ |
| Angle Shear 90° | 6″ x 6″ x 1/2″ |
| Angle Shear 45° (with Bar Shear) |
3″ x 3″ x 3/8″ 4″ x 4″ x 1/2″ |
| Brake 12″ | 65 ton |
| Brake 24″ | 45 ton |
| Open End Brake | Max. 1/4″ x 6″ Flat or Angle Iron |
| Pipe Notcher Schedule 40 I.D. |
3/4″ 1″ 1-1/4″ 1-1/2″ 2″ |
| 90° V. Notcher | 6″ x 6″ x 5/16″ |
| Rectangle Notcher
V. Notch Notching in Leg of |
3″ x 5″ x 3/8″ 3″ x 4″ x 1/2″3″ x 3″ x 3/8″6″ to 10″ |
| Channel Shear | 2″ to 6″ Adj. |
| Strut Shear | Samples Required |
| Rod Shear Round Rod (Max.) Square Rod (Max.) |
1/4″ to 1-1/4″, 9 Cav. 1/4″ to 1″, 1 Cav. |
| Square Tube Shear | 1/2″ to 2″, 12 gauge |
| Picket Tool | 1/2″ 3/4″ 1″ 16 gauge |
| Offset Die Holder | Max. 40 ton |
| Strokes Per Minute in Light Material | 1/4″ Stroke [Punch Station] |
| Strokes Per Minute in Heavy Material | 3/4″ Stroke [Punch Station] |
| Hydraulics | 3,000/3,000 psi |
| Motors Standard | 10 hp 3 ph 230/460 208/380/575 |
| Motors Optional | 10 hp 1 ph 230v |
| Dimensions | W-30″ L-65″ H-72-1/8″ |
| Shipping Weight | 3,800 lbs. |
