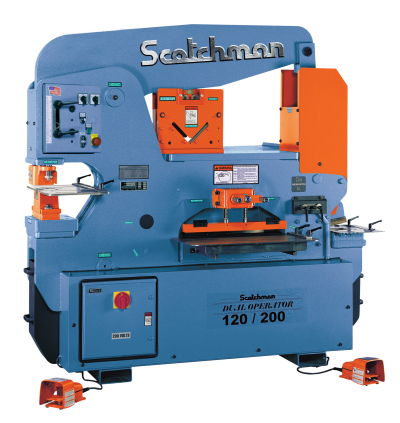

Scotchman 120 Ton Dual Operator Ironworker, Model DO 120/200-24M – NEW
SKU # 3010011
Specifications:
| Rated on: | 65,000 PSI Tensile |
| Punching Capacity | 120 ton 1-1/2″ in 1″ |
| Special Tooling | 4″ Max. Dia. |
| Throat Depth | 12″ |
| Flat Bar Shear (Sabre Blade – Std) |
200 ton, 24″ Length 1″ x 12″ 3/4″ x 20″ 1/2″ x 24″ |
| Angle Shear 90° | 6″ x 6″ x 1/2″ |
| Angle Shear 45° (with Bar Shear) |
3″ x 3″ x 3/8″ 4″ x 4″ x 1/2″ |
| Brake 12″ | 75 ton |
| Brake 24″ | 55 ton |
| Open End Brake | Max. 1/4″ x 5″ Flat or Angle Iron |
| Pipe Notcher Schedule 40 I.D. | 3/4″ 1″ 1-1/4″ 1-1/2″ 2″ |
| 90° V. Notcher | 6″ x 6″ x 5/16″ |
| Rectangle Notcher
V-Notch Notching in Leg of |
3″ x 5-3/4″ x 1/2″
3″ x 3″ x 1/2″ 6″ to 10″ |
| Channel Shear | 2″ to 6″ Adj. |
| Strut Shear | Samples Required |
| Rod Shear Round Rod (Max.) Square Rod (Max.) |
1/4″ to 1-1/4″, 9 Cav. 1/4″ to 1″, 1 Cav. |
| Square Tube Shear | 1/2″ to 2″, 12 ga. |
| Picket Tool | 1/2″ 3/4″ 1″ 16 ga. |
| Offset Die Holder | Max. 40 ton |
| Strokes Per Minute in Light Material | 1/4″ Stroke [Punch Station] |
| Strokes Per Minute in Heavy Material | 3/4″ Stroke [Punch Station] |
| Hydraulics | 3,500/3,500 psi |
| Motors Standard | 10 hp 3 ph 230/460 208/380/575 |
| Motors Optional | 10 hp 1 ph 230v |
| Dimensions | W-34″ L-77.25″ H-74.25″ |
| Shipping Weight | 6,204 lbs. |
