Description

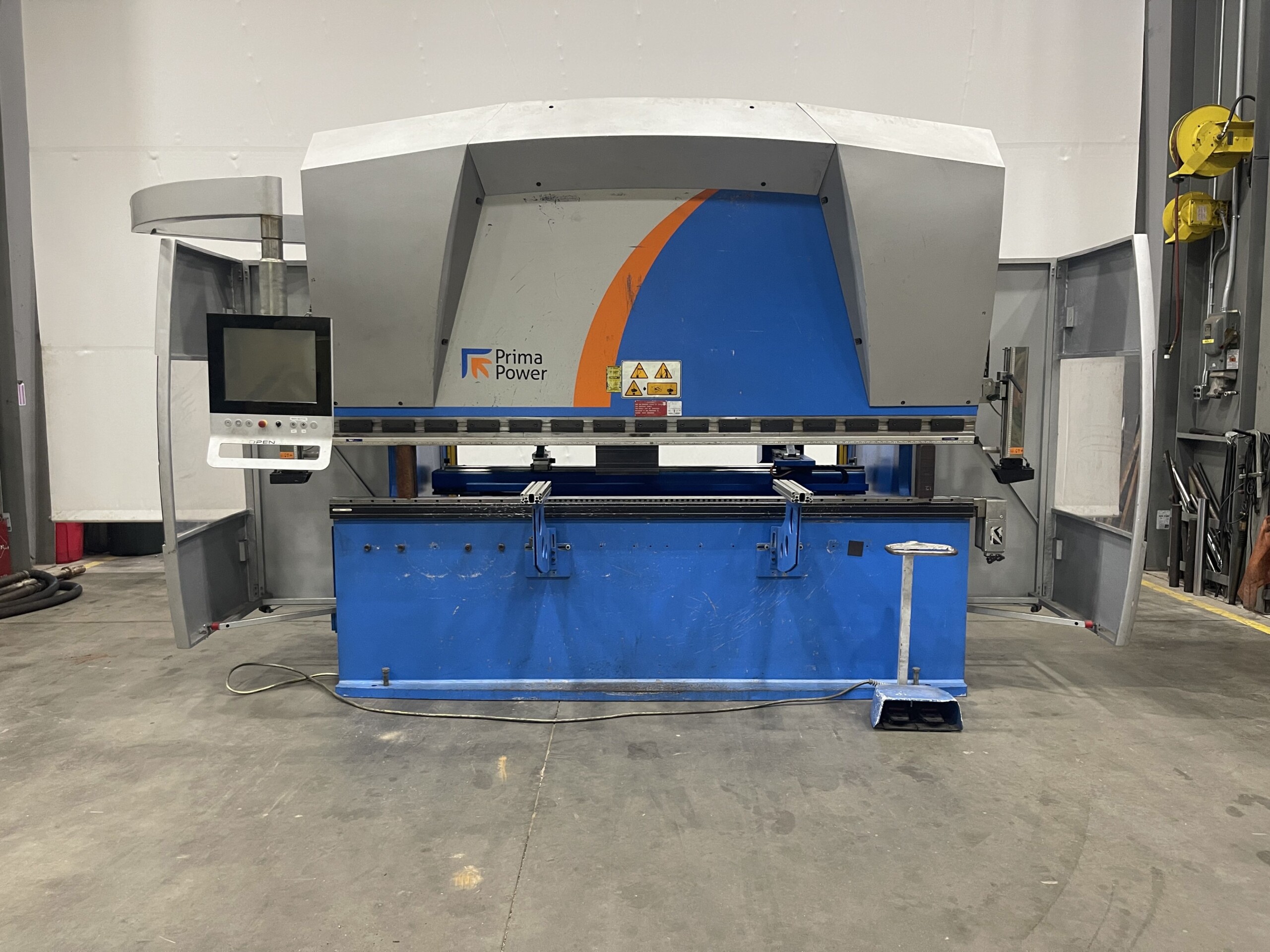

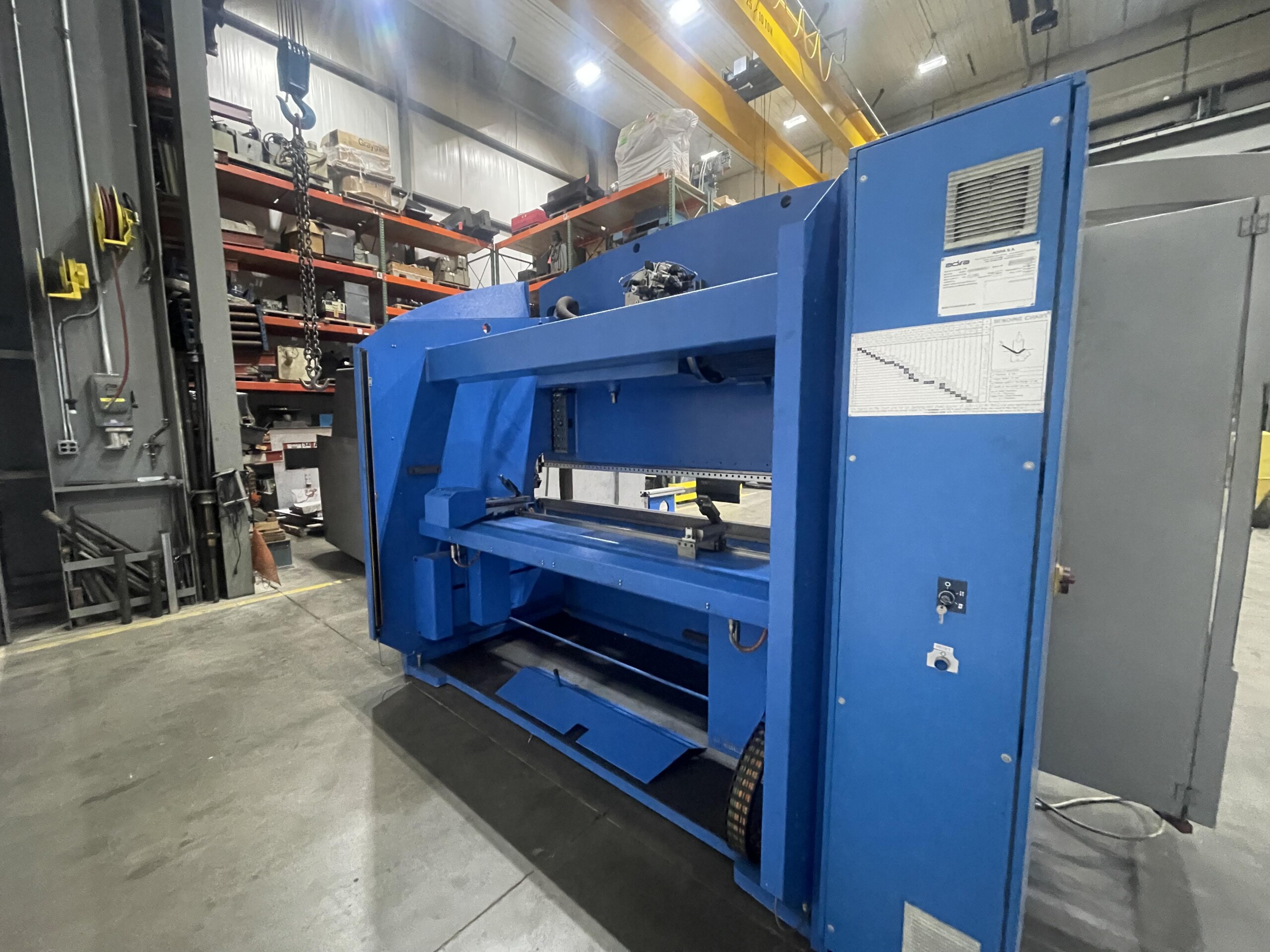

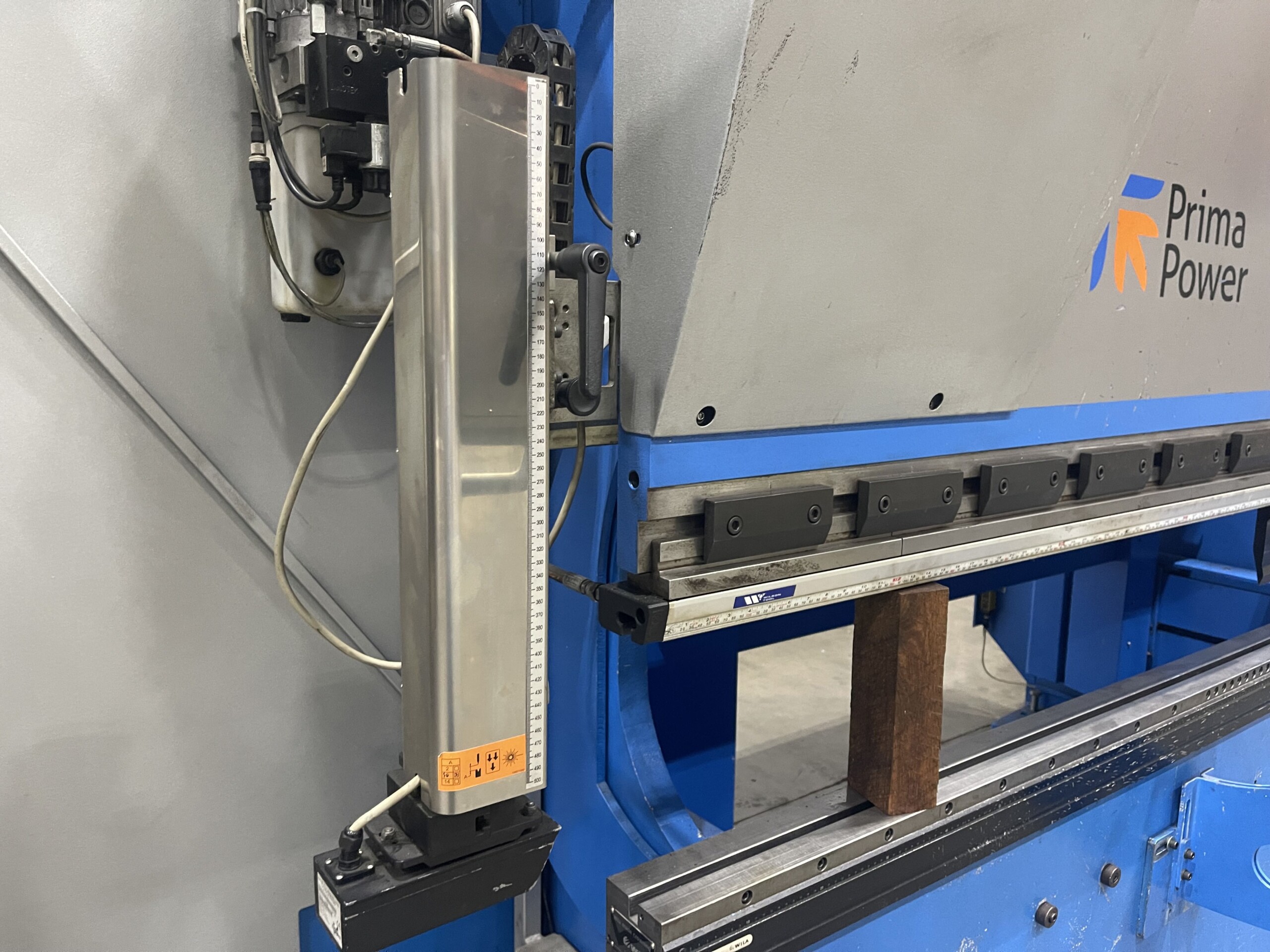

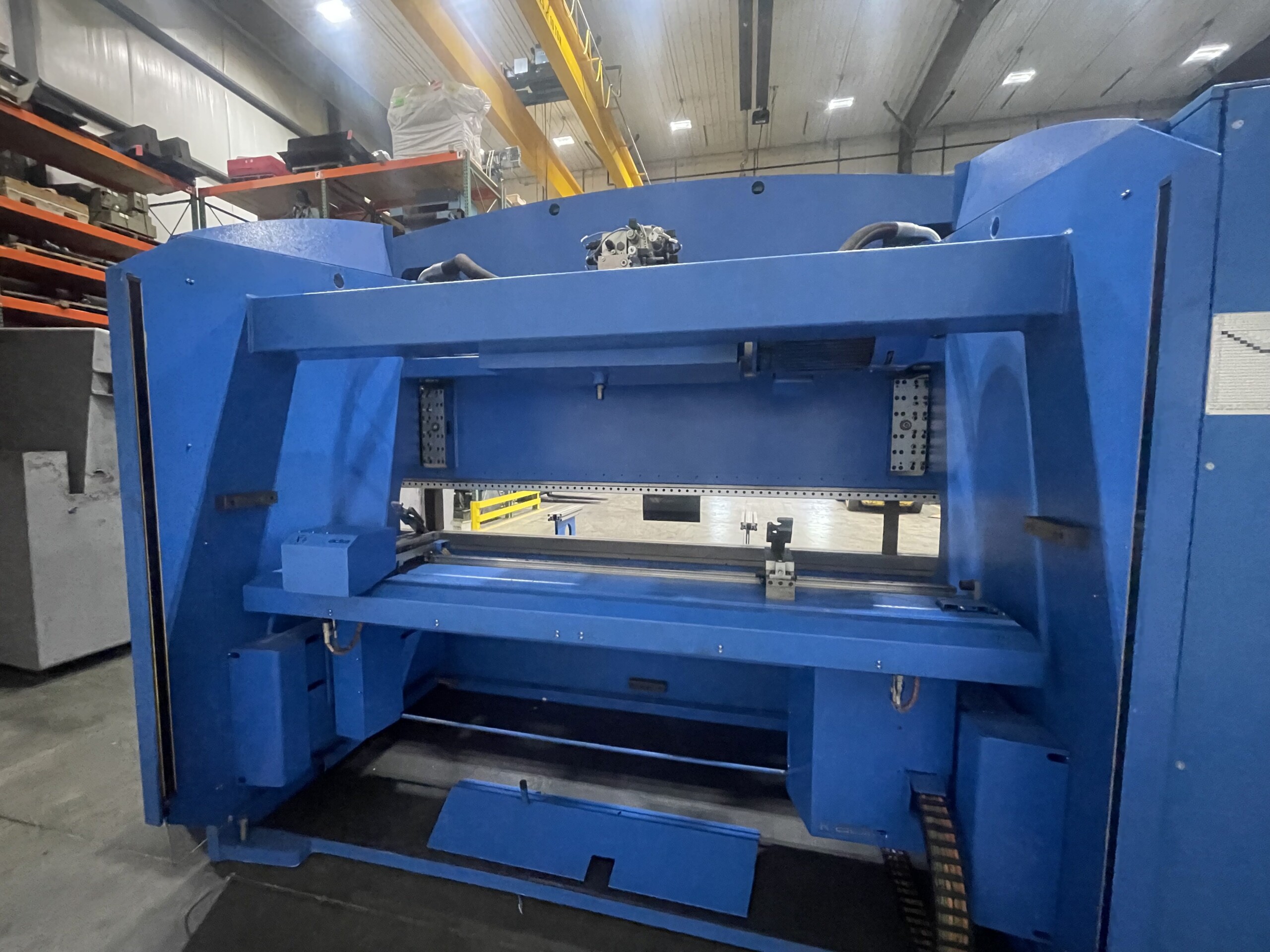

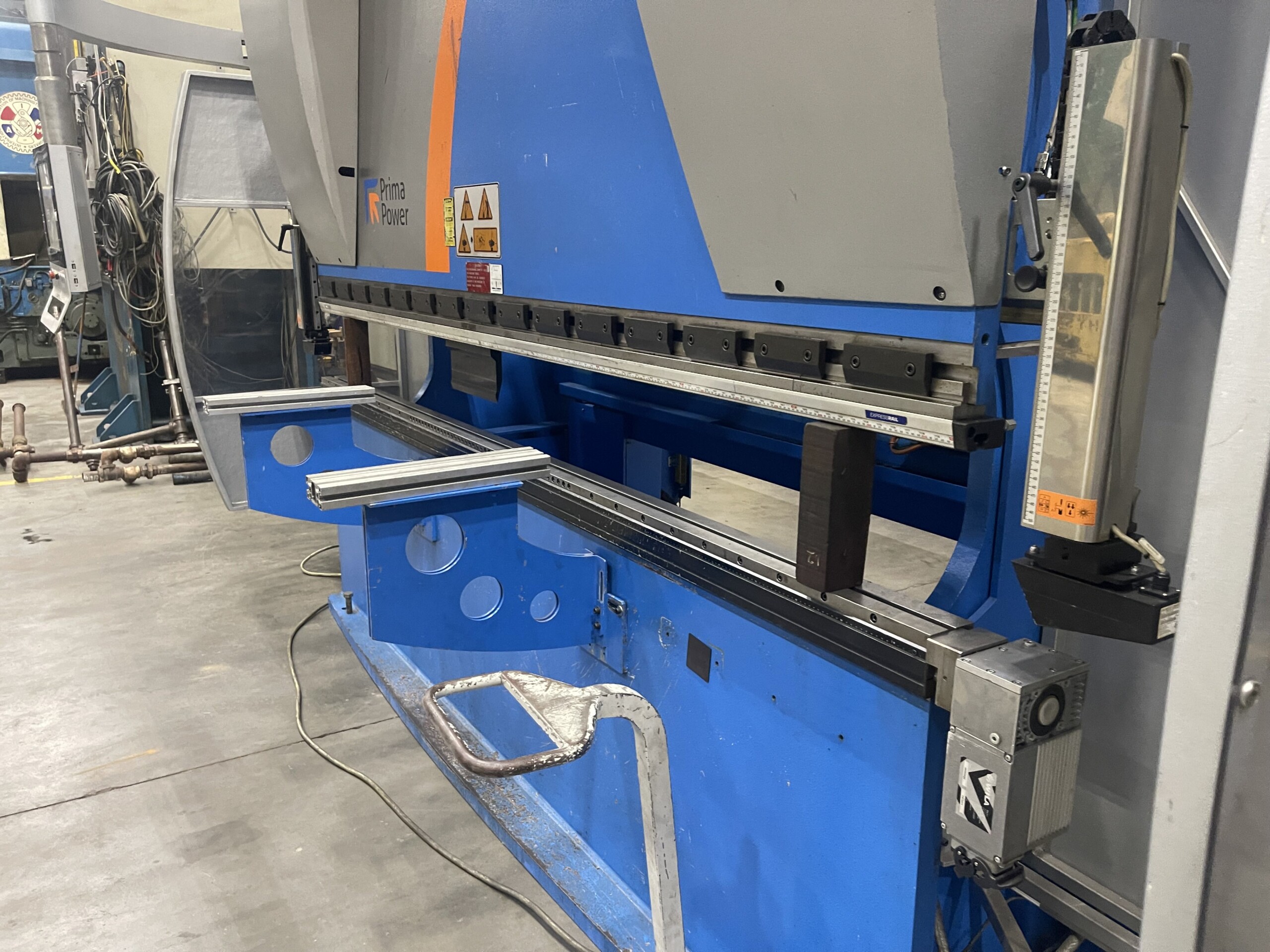

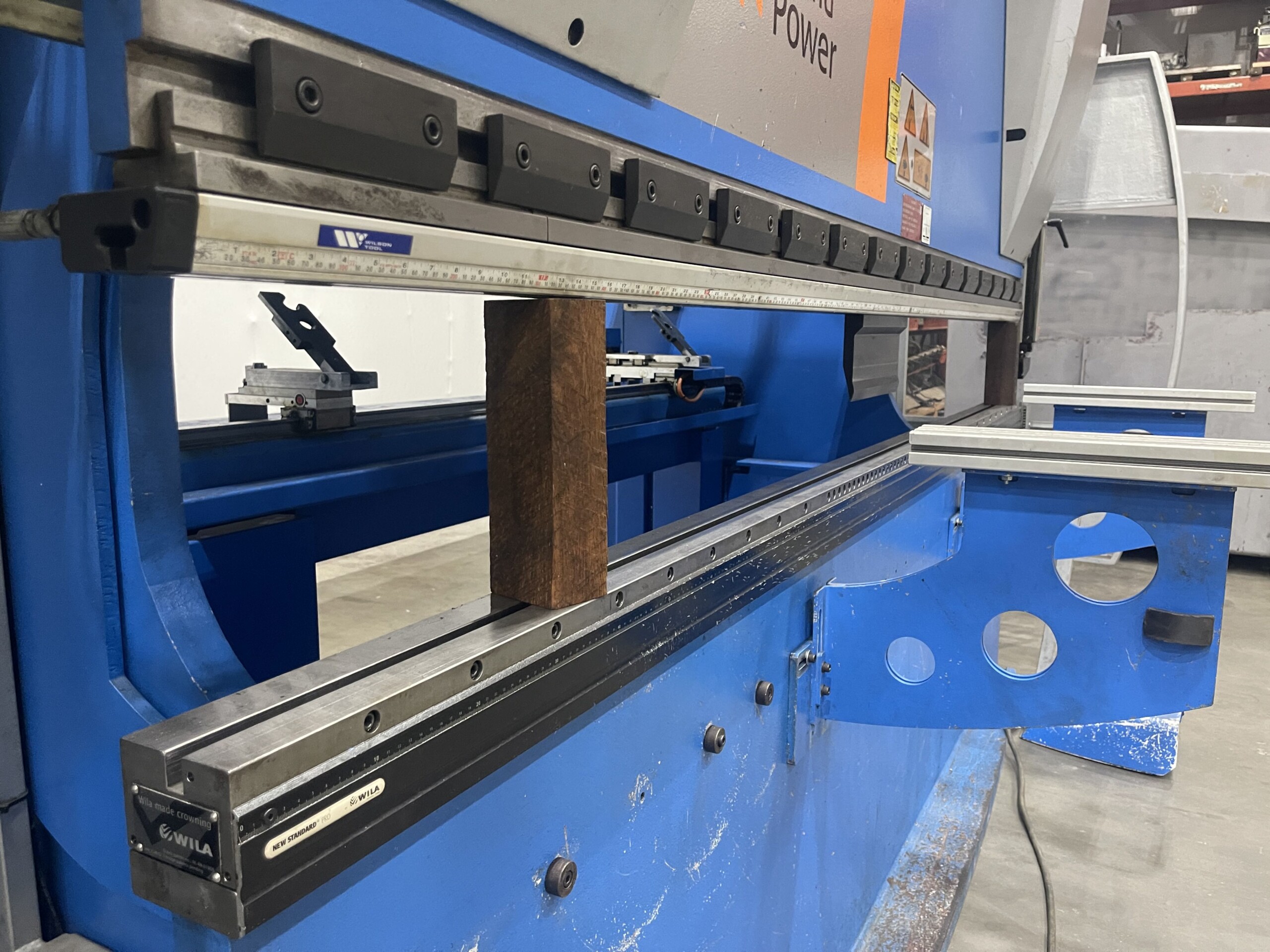

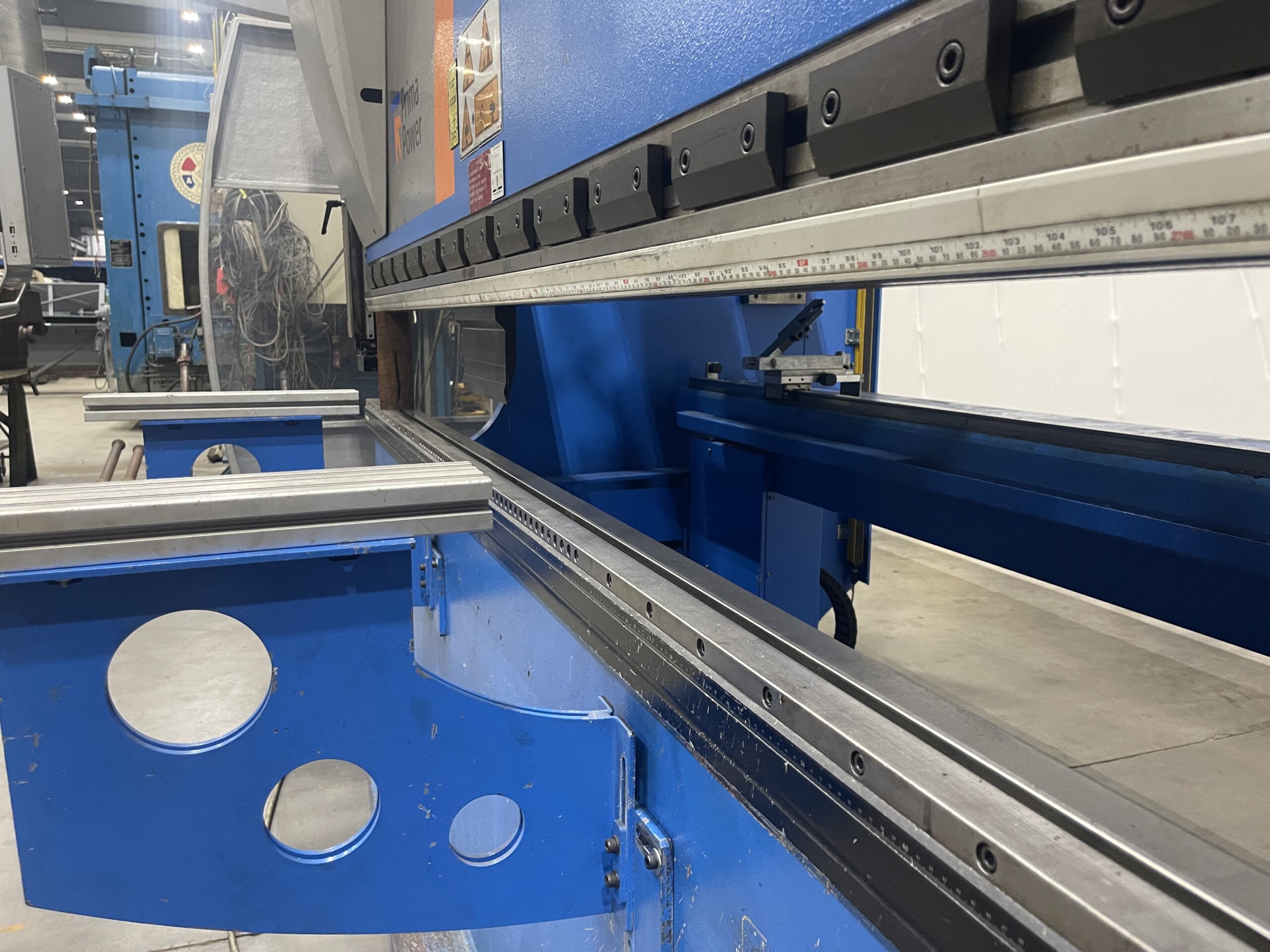

Adira Prima Power 10′ Press Brake
Asset # 17271C
Serial # QUO-0012-V3-0042

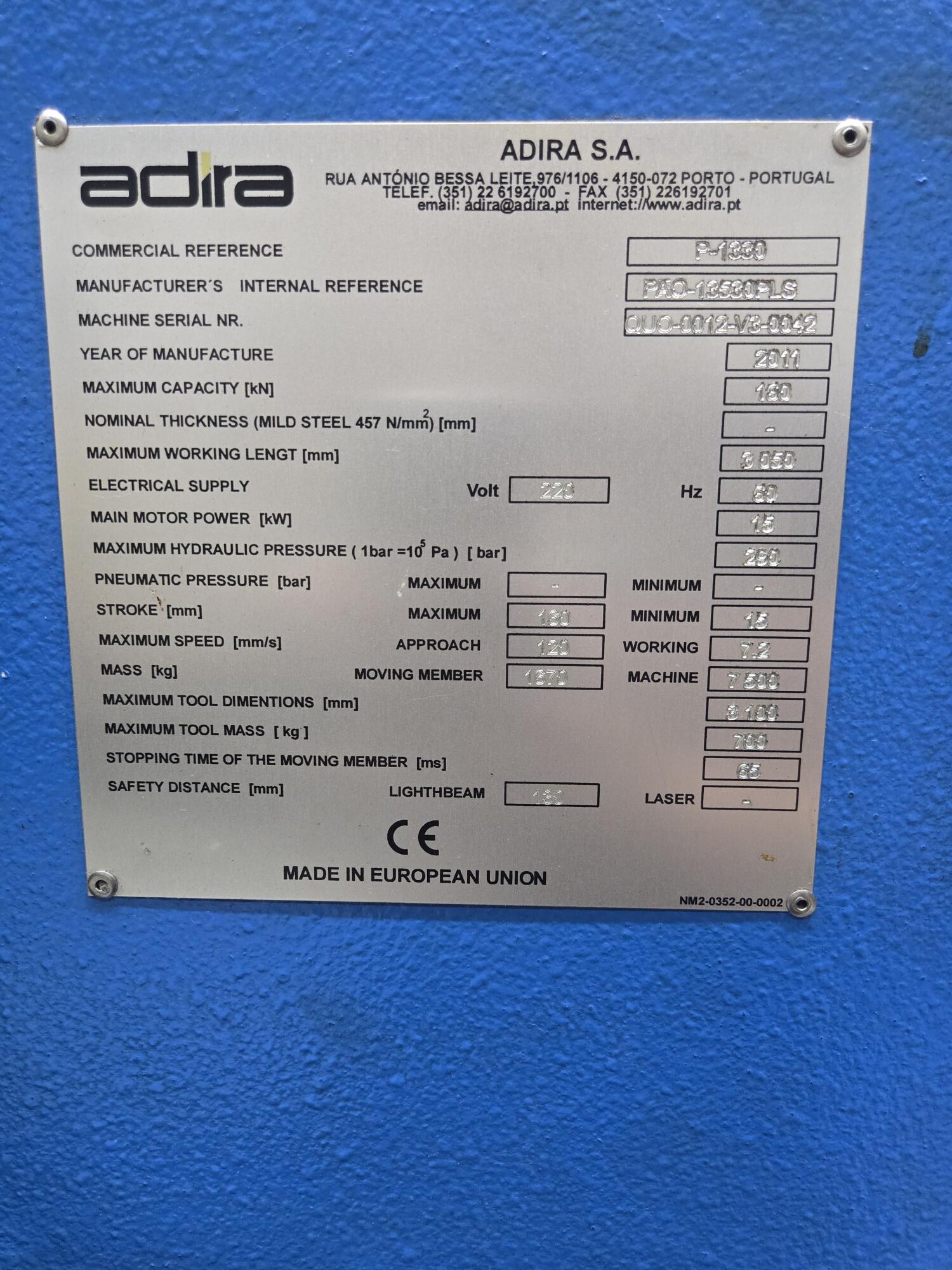

COMMERCIAL REFERENCE P-1330
MANUFACTURER’S INTERNAL REFERENCE PAO-13530PLS
MACHINE SERIAL NR. QUO-0012-V3-0042
YEAR OF MANUFACTURE 2011
MAXIMUM CAPACITY [Ton] 110
NOMINAL THICKNESS (MILD STEEL 457 N/mm) [mm] –
MAXIMUM WORKING LENGT [inch] 120
ELECTRICAL SUPPLY 220 V60 HZ
MAIN MOTOR POWER [kW] 15
MAXIMUM HYDRAULIC PRESSURE ( 1bar =10 Pa) [ bar] 290
PNEUMATIC PRESSURE [bar] – MAXIMUM – MINIMUM –
STROKE[inch] MAXIMUM 6.3 MINIMUM –
MAXIMUM SPEED [in/s] Approach 4.72 WORKING 0.28
MASS [lbs] Moving Member 3,682 MACHINE 16,535
MAXIMUM TOOL DIMENTIONS [in] 122
MAXIMUM TOOL MASS [lbs] 1544
STOPPING TIME OF THE MOVING MEMBER [ms] 65
SAFETY DISTANCE [inch] LIGHTHBEAM 5.12 Laser –
PRELIMINARY SPECS – SUBJECT TO VERIFICATION
