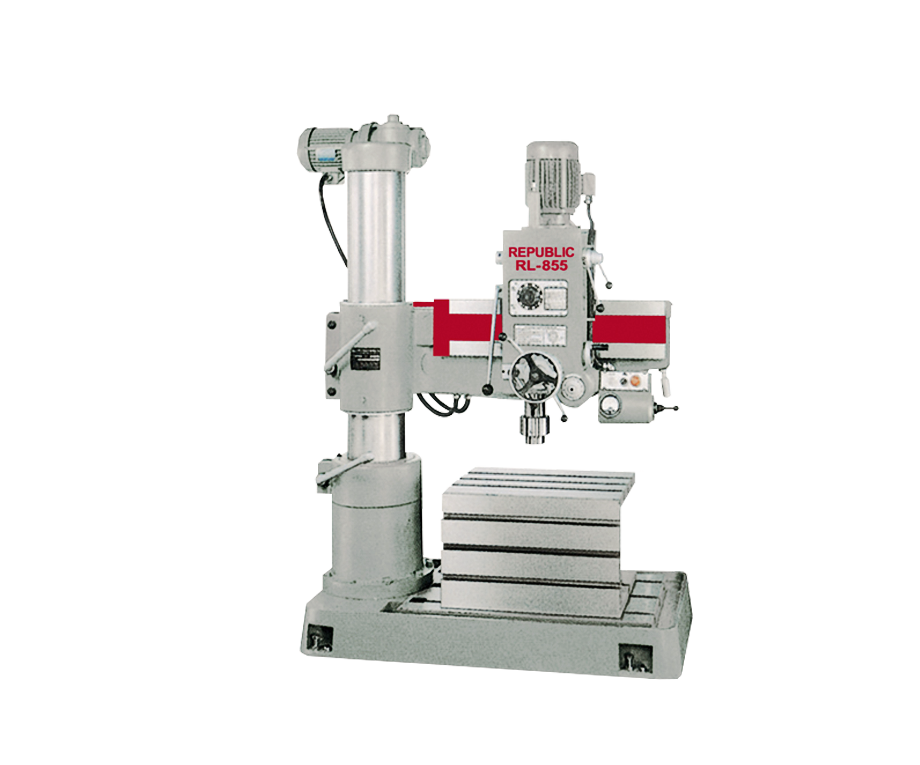

Lagun 21″ / 25″ x 8″ Radial Drill, Models 855 & 955 – NEW
SKU #4206000
| Dimensions |
855 | 955
|
| Column Diameter |
8.3″
|
| Column Surface to Spindle Center-Min. |
8.7″
|
| Maximum Column Surface to Spindle Center |
29.5″ | 33.5″
|
| Travel of Head on Arm Ways |
20.9″ | 24.8″
|
| Minimum Spindle Face to Base Top |
10.23″ | 13.77″
|
| Maximum Spindle Face to Base Top |
41.73″ | 47.63″
|
| Arm Travel on Column (Elevating Height of Arm) |
23.8″ | 25.6″
|
| Base and Column Height |
72.8″ | 79.1″
|
| Maximum Machine Height From Floor |
85.4″ | 91.3″
|
| Effective Area of Box Table |
23.6” x 17.5″ x 14.9”
|
| Dimensions of Base |
49.6″ x 25.2″ x 6.3″
|
| Shipping Dimensions |
65″ x 33″ X 85″ | 67″ x 33″ X 87″
|
| Spindle |
855 | 955
|
| Spindle Taper |
MT #4
|
| Stroke of Spindle |
8.3”
|
| Spindle Speeds (RPM x Steps) |
88 to 1,500 RPM x 6
|
| Spindle Power Feeds (Rev. x Steps) |
0.0019” – 0.0035″ – 0.0059” x 3
|
| Capacities |
855 | 955
|
| Drilling Capacity in Steel |
1.5”
|
| Drilling Capacity in Cast Iron |
2”
|
| Tapping in Steel |
1”
|
| Tapping in Cast Iron |
1.25”
|
| Boring in Steel |
2.75”
|
| Boring in Cast Iron |
4”
|
| Motors |
855 | 955
|
| Direct Drive Main Motor |
2 HP
|
| Arm Elevating Motor |
1 HP
|
| Clamping |
Manual
|
| Coolant Pump Motor |
1/8 HP
|
| Weights |
855 | 955
|
| Approximate Net Weight |
2,469 lb | 2,645 lb
|
| Approximate Gross Weight |
2,755 lb | 2,945 lb
|
