Description

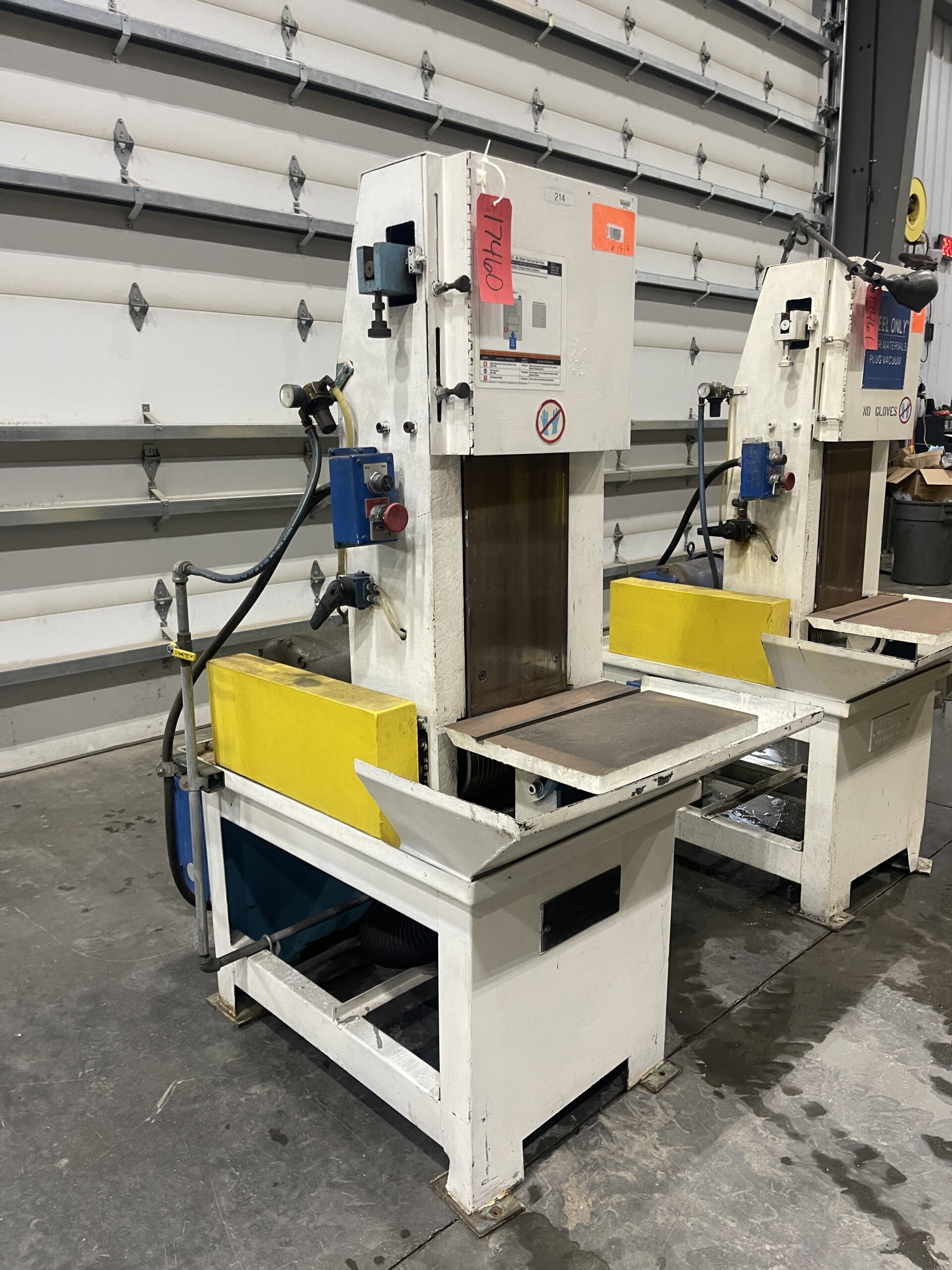

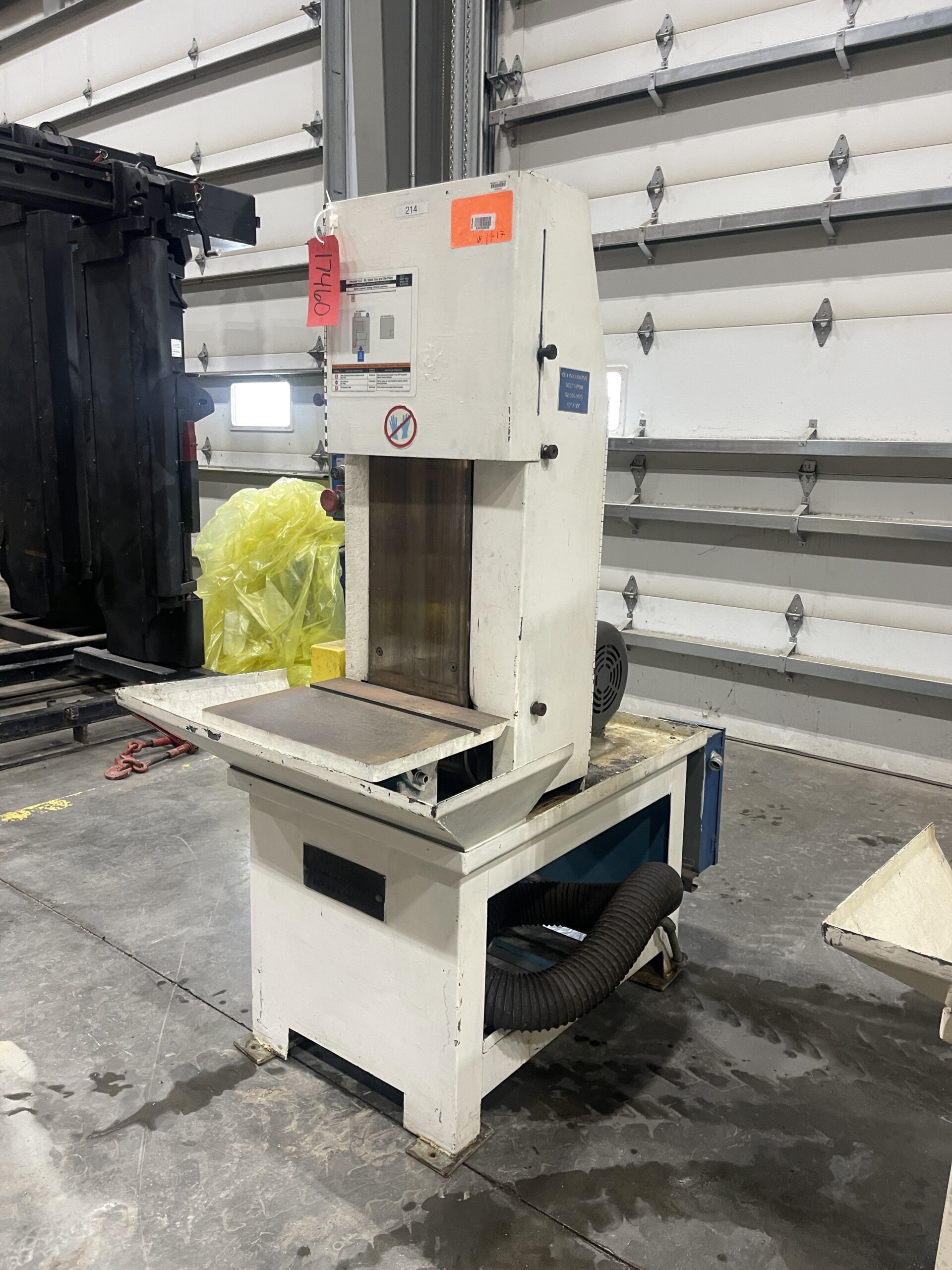

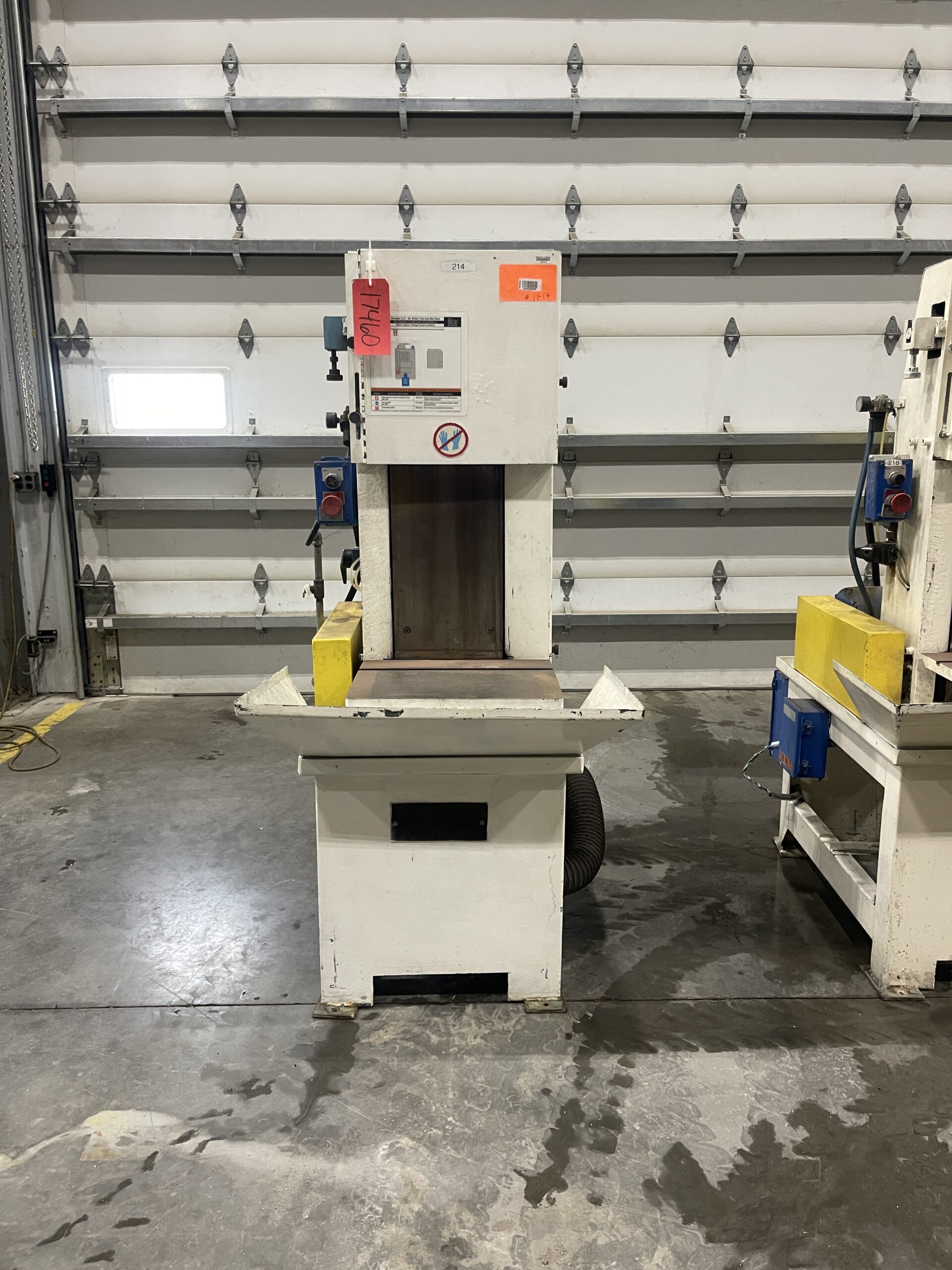

Kalamazoo 10″ x 90″ Belt Sander
Asset # 17461
Machine Features
Motor specifications: 10 HP 3PH
24V at the on/off switch.
Sanding belt jog switch.
Steel 10-gallon coolant tank and pump with splash bar.
Belt size: 10″x 90″
Belt SFPM: 3500 SFPM
Steel 10″ x 29″ platen that’s reversible and replaceable.
Work Surface: 10″x 29″
Cast iron work table with fixture slot that’s removable. The table tilts 45° down and 15° up.
Air Tension on the sanding belt. There must be constant air pressure to track the belt (0-55 PSI required).
V-belt driven
Shipping dimensions: L 48″ x W 53″ x H 80″
Belt sander shipping weight: 1600 lbs.
