Description

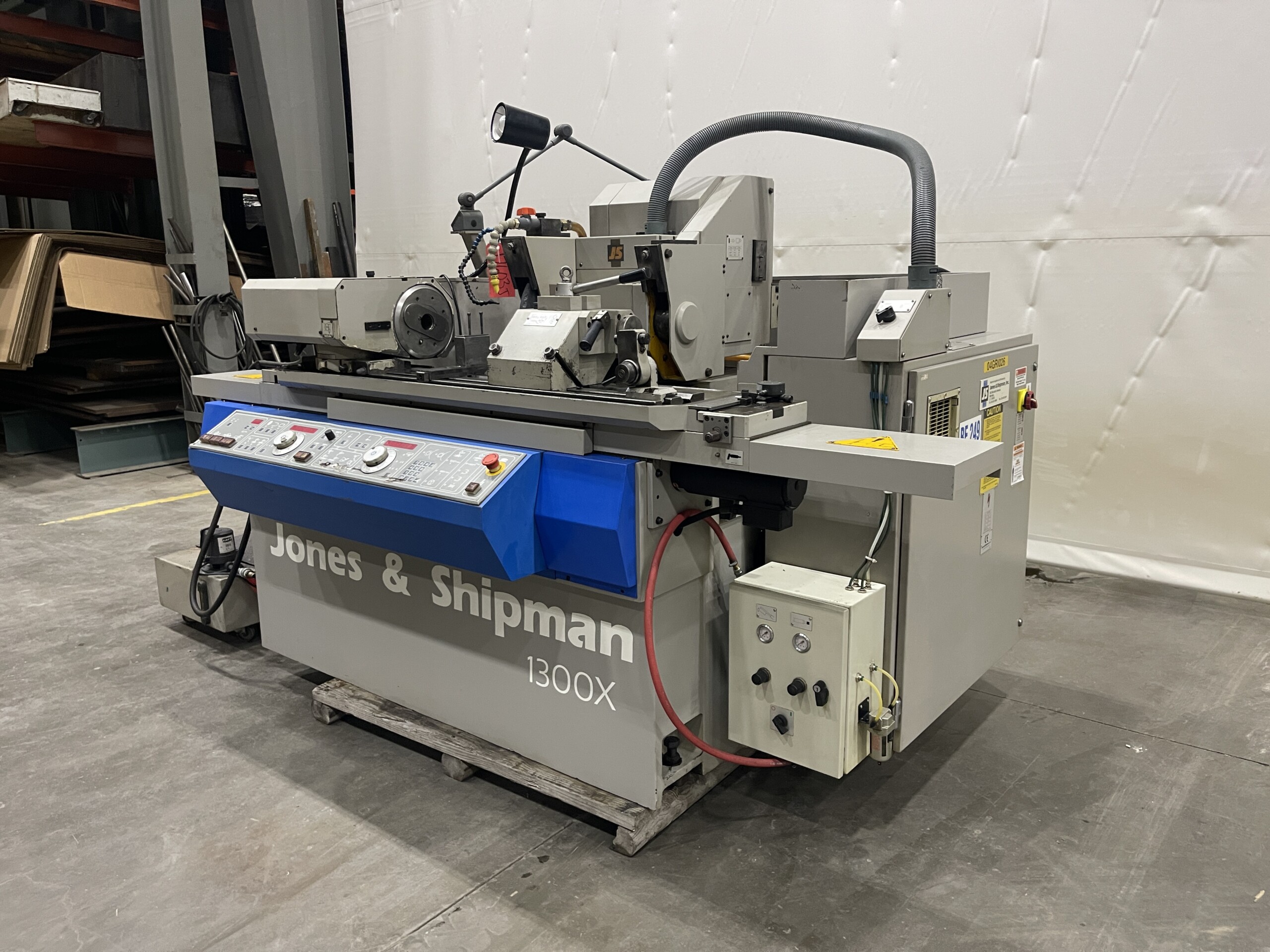

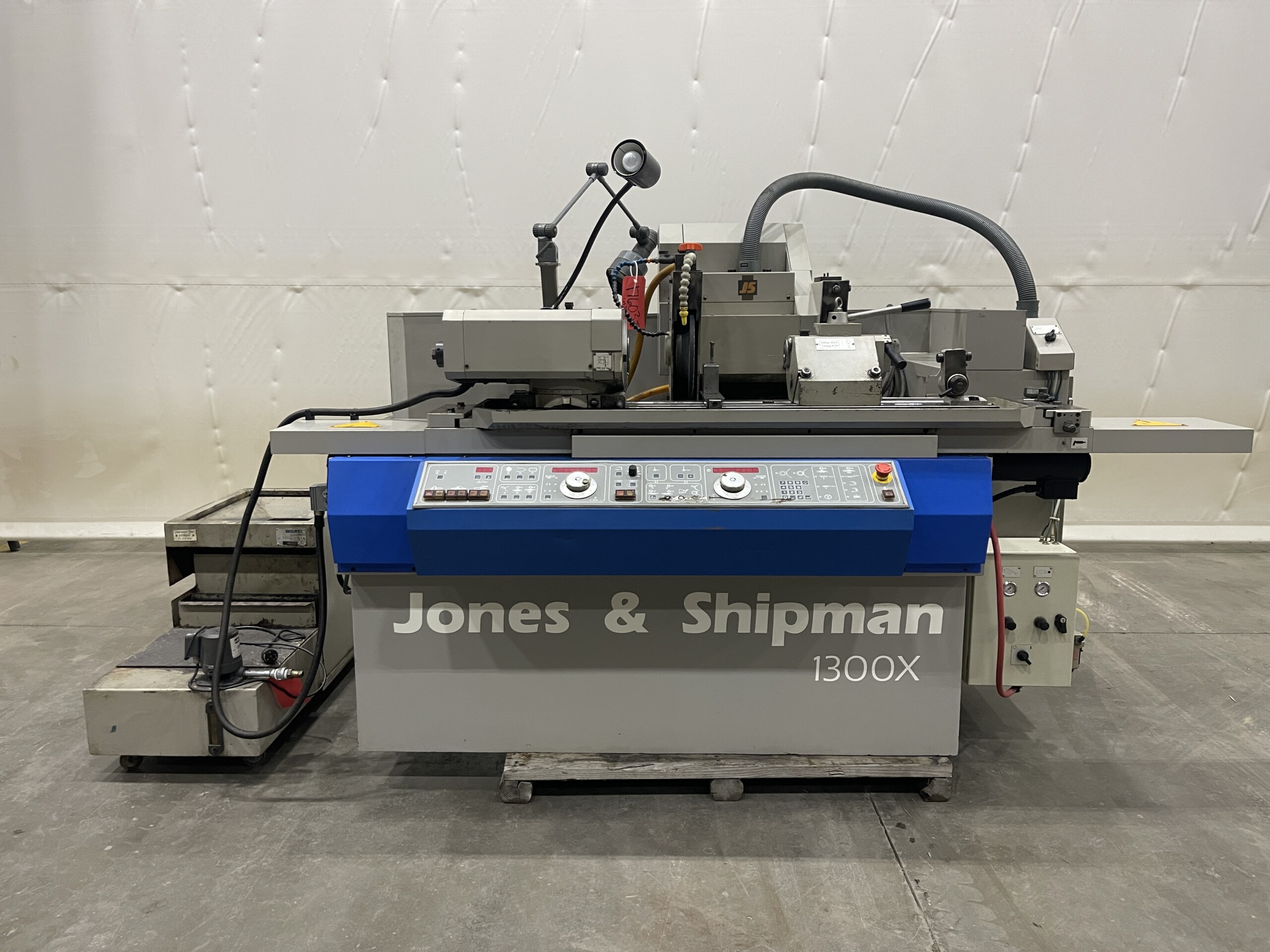

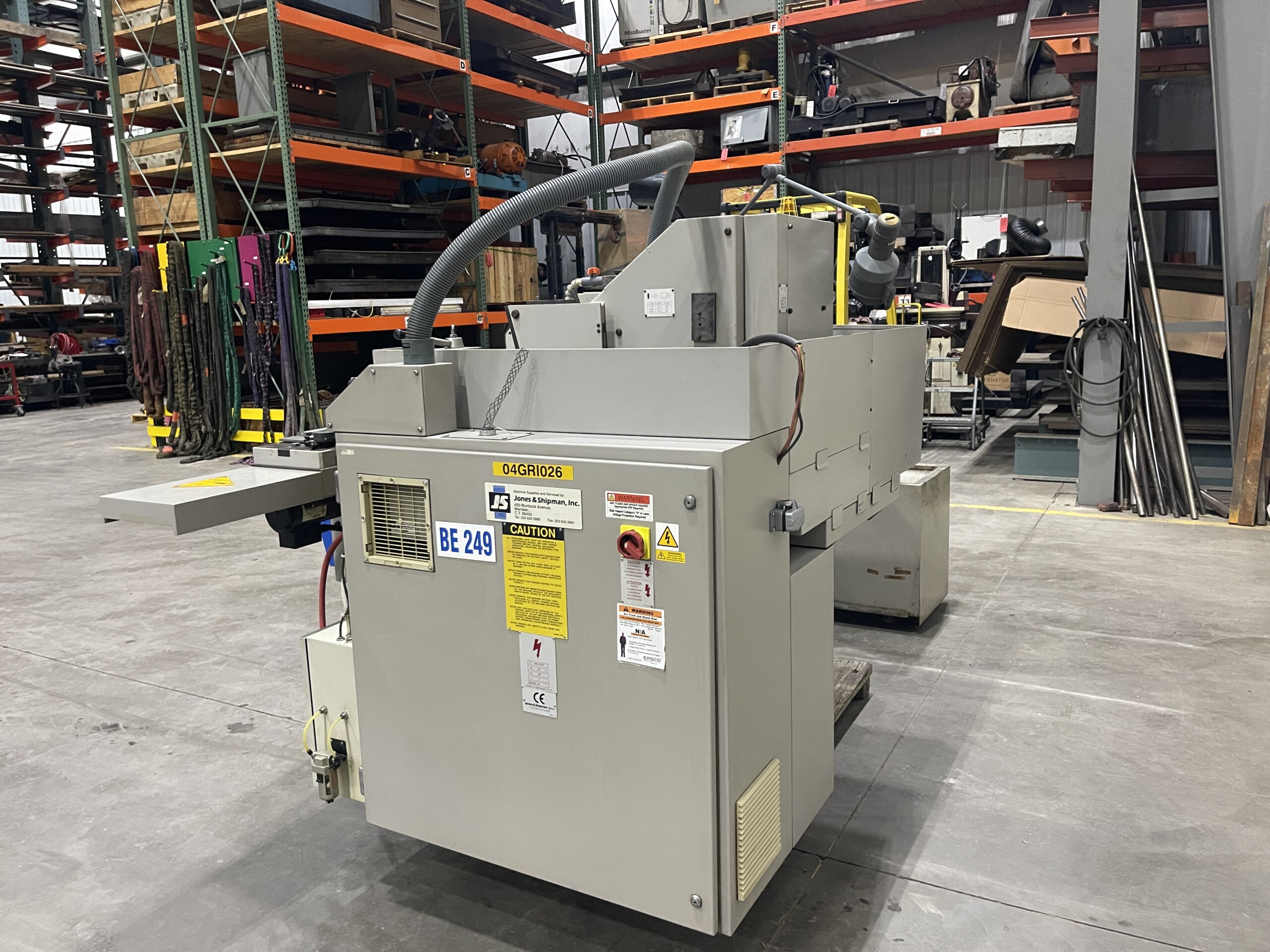

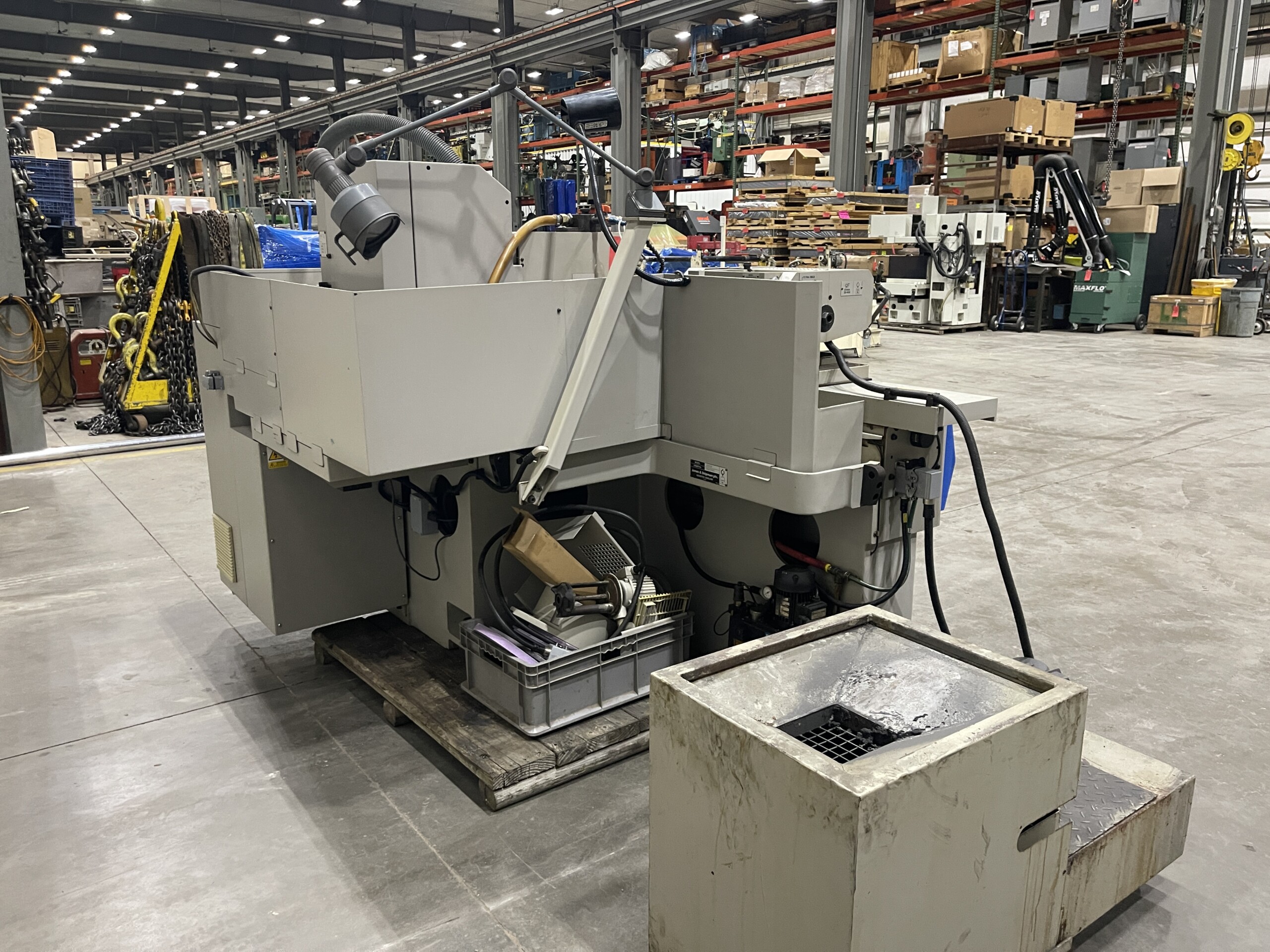

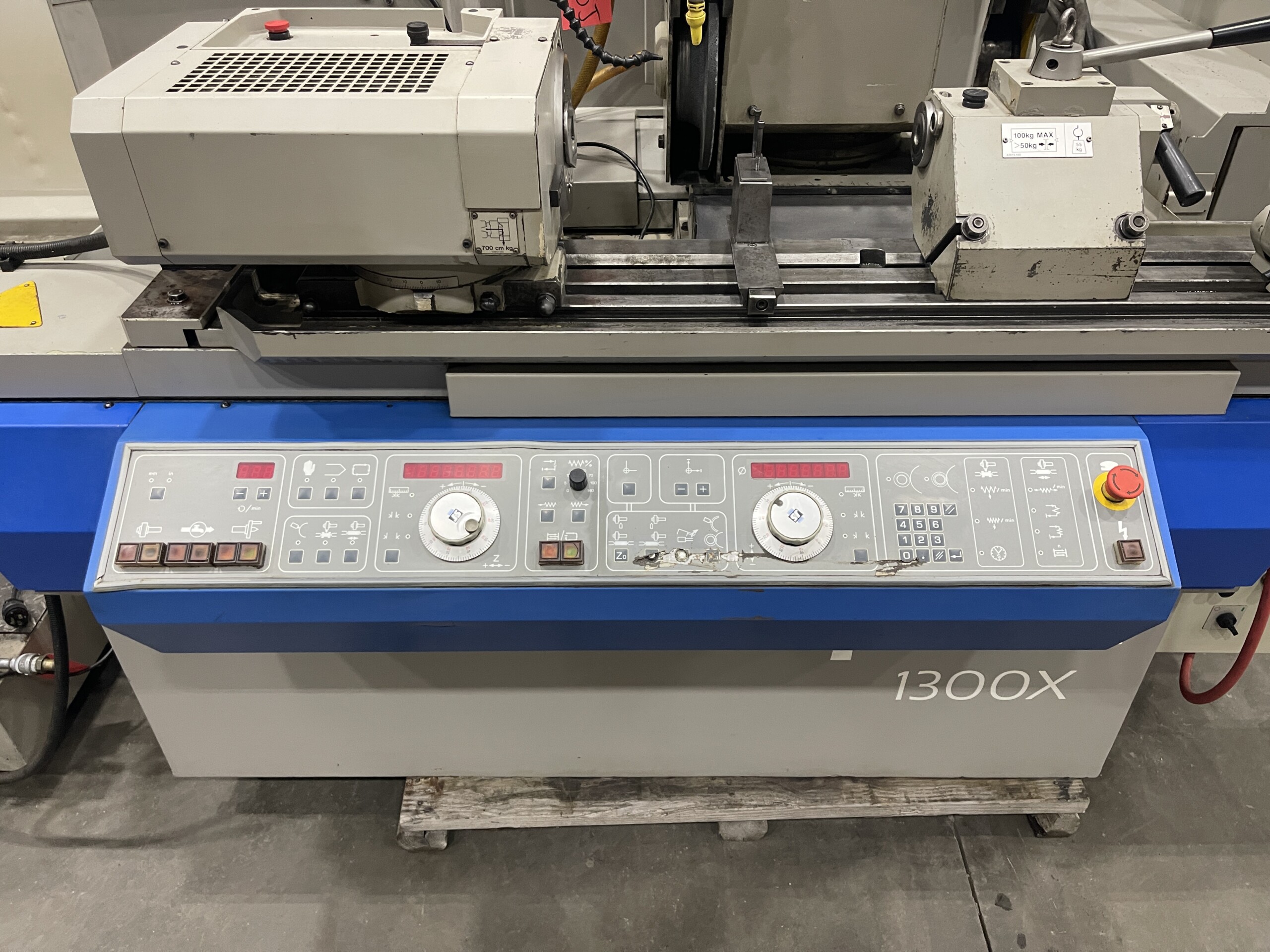

Jones & Shipman 1300X Twin Wheel Universal Cylindrical Grinder, 12″ Swing, 27″ Grinding Length
Asset # 17603J

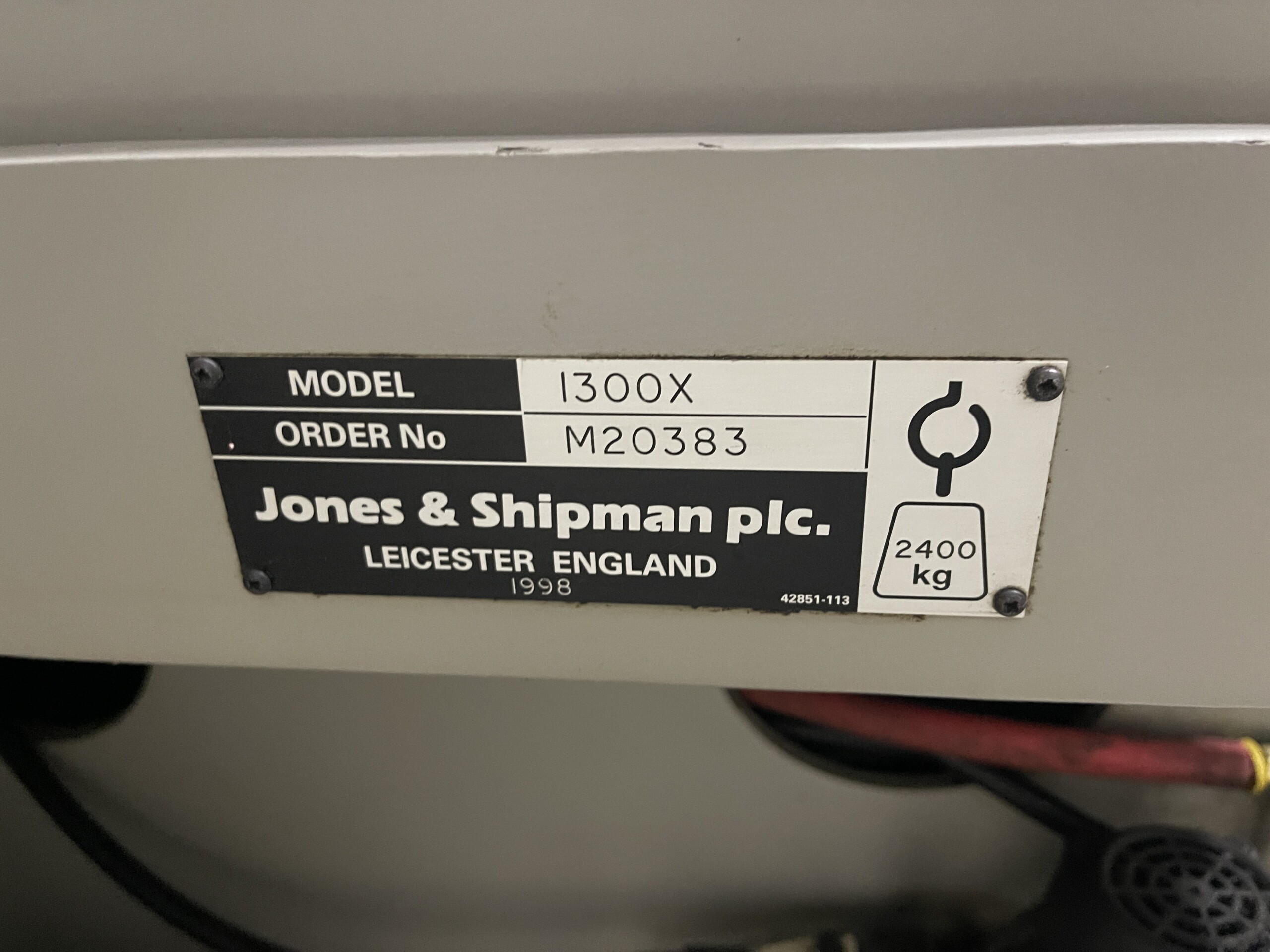

Serial # M20383
Specifications:
Max. Diameter Ground with 14″ Wheel 12″
Max. Diameter Ground with 12″ Wheel 14″
Total Infeed 9.6″
Max. Grinding Length Between Centers 27″
Maximum Work Weight Between Centers…. 220 LBS 220 LBS
Wheelhead Swivel 190/45 Deg
External Grinding Wheel Size, Left 14″ x 2″ x 5″
External Grinding Wheel Size, Right 12″ x 1″ x 5″

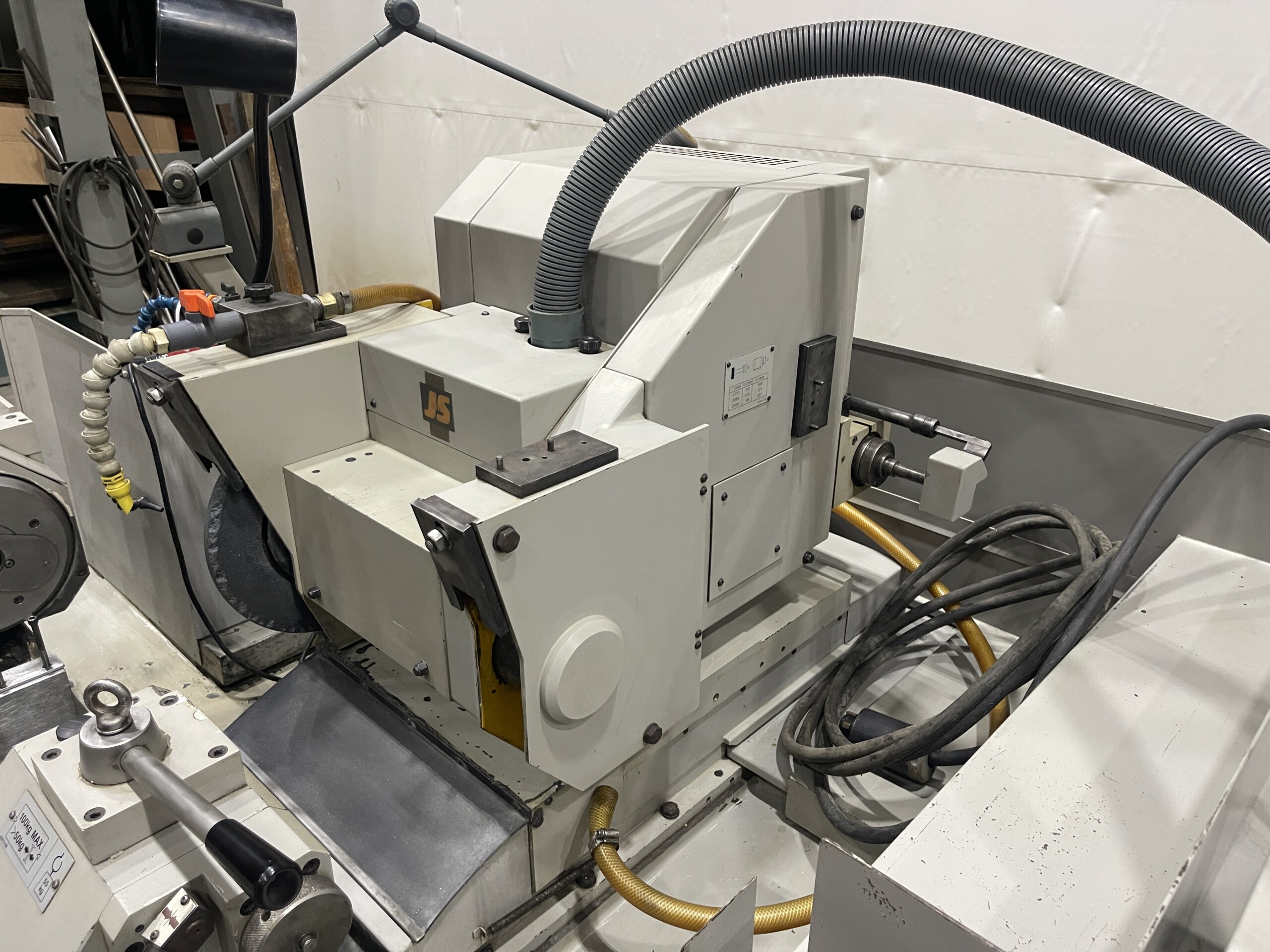

External Wheelhead Motor 5.5 HP
Internal Wheel Size 0.75″-1.5″
Internal Wheel Speeds 16500, 24000, 10500 RPM
Internal Wheel Motor 3 HP
Max. Traverse Speed 197 IPM
Table Swivel, Clockwise 16 Degrees
Table Swivel, Counter-Clockwise 18 Degrees
Workhead Speed Range 1-660 RPM
Equipped With:

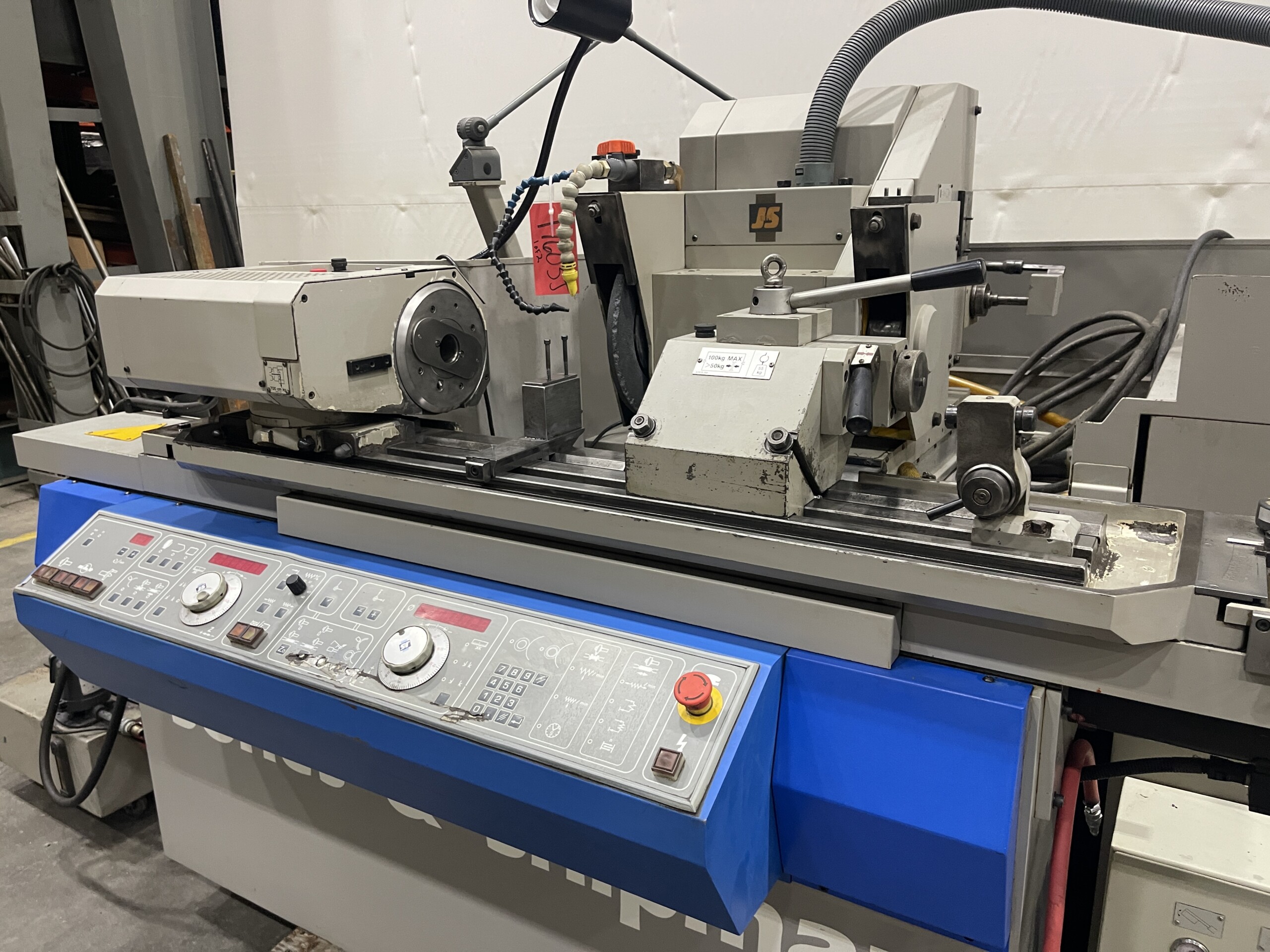

Microprocessor Control
ID Grinding Spindle
Taper Grinding
Tailstock
Steady Rest

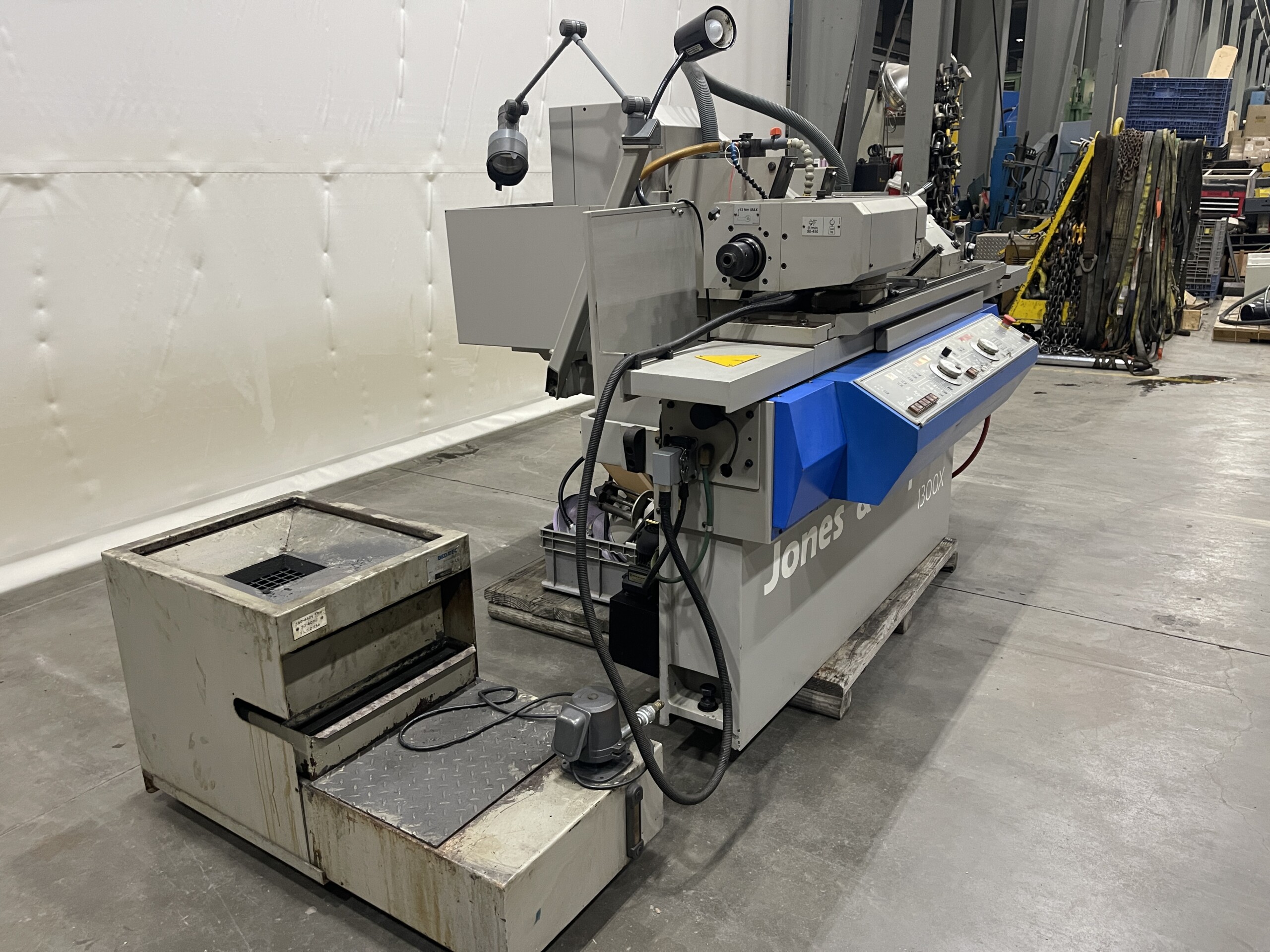

Coolant
