Description

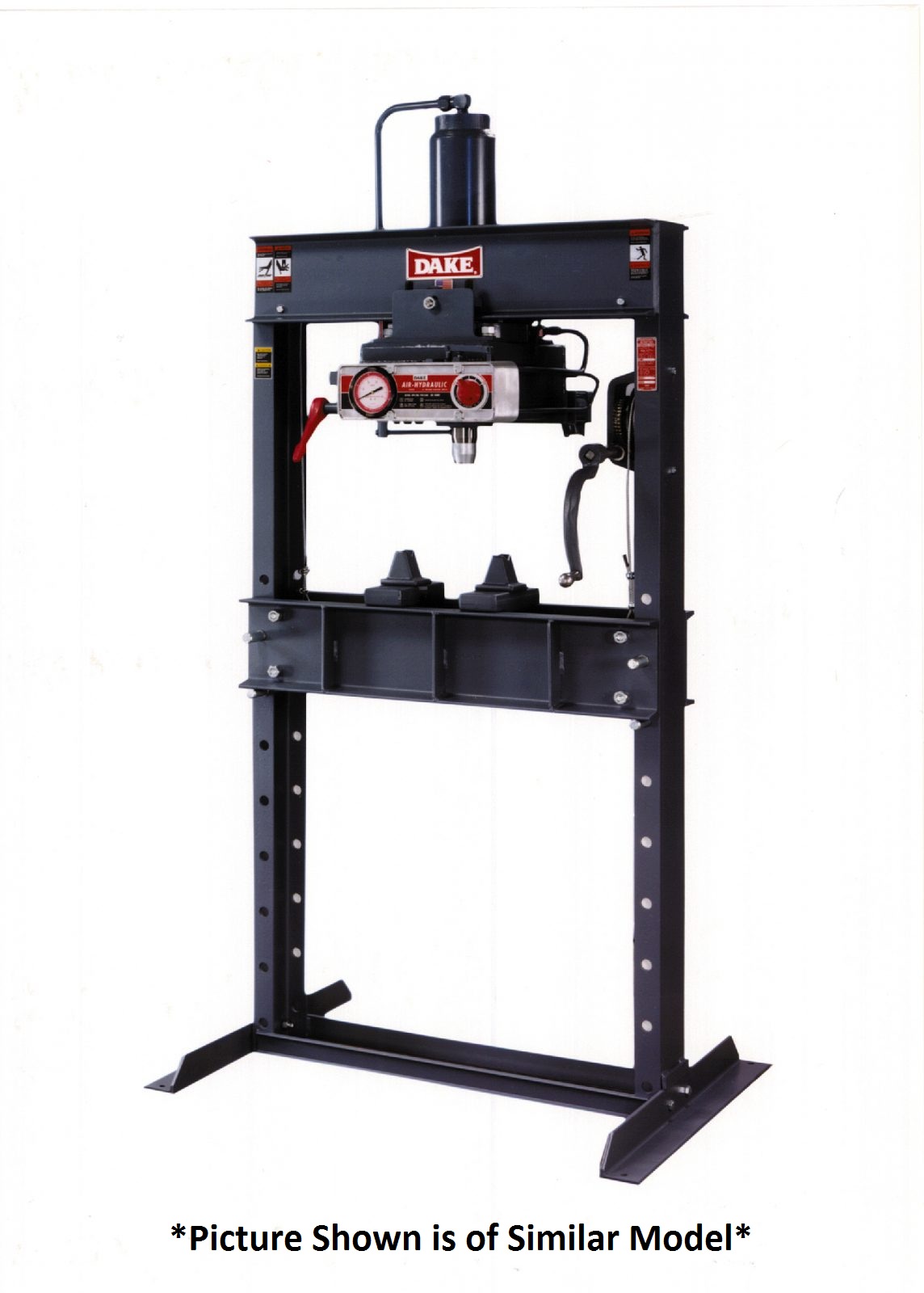

Dake 75 Ton Air Operated H-Frame Press, Model 6-475 – NEW
SKU #0914009
| Number | 906475 |
| Capacity | 75 tons |
| Operation | Air |
| Horsepower | n/a |
| Voltage | n/a |
| Width between uprights | 44″ |
| Width between table channels | 8-1/4″ |
| Minimum ram to table | 6″ |
| Maximum ram to table | 36″ |
| Ram travel | 10″ |
| Screw Travel | n/a |
| Horizontal workhead travel | 24-5/8″ |
| Footprint | 55″ x 36″ |
| Height | 86″ |
| Weight | 1550 lbs |
| Base | 55″ x 36″ |
| Ram advance speed | 40 ipm |
| Pressing speed | 3-1/2 ipm |
| Number of Pumps | 2 |
| Air Pressure | 90-125 psi |
