Description

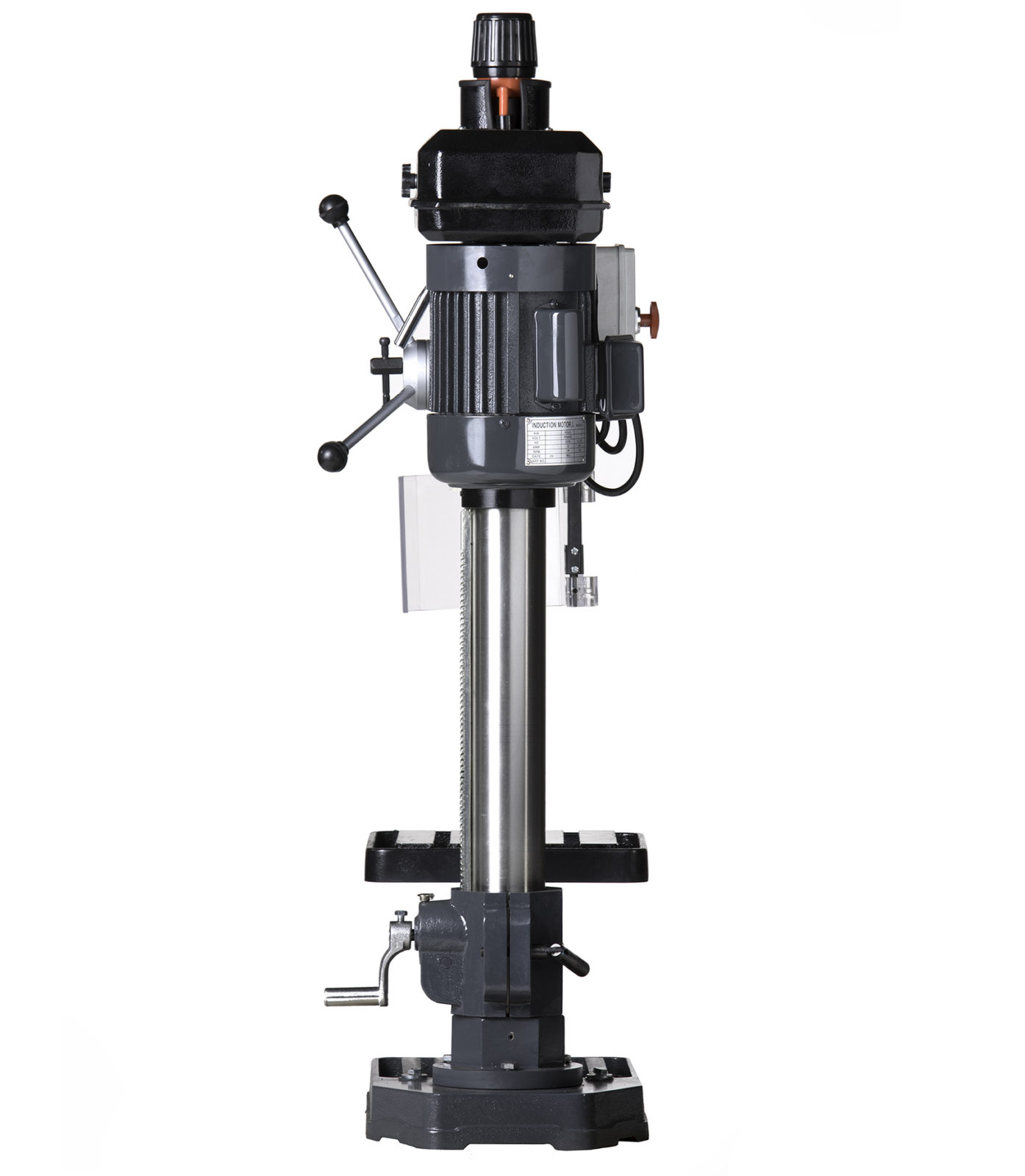

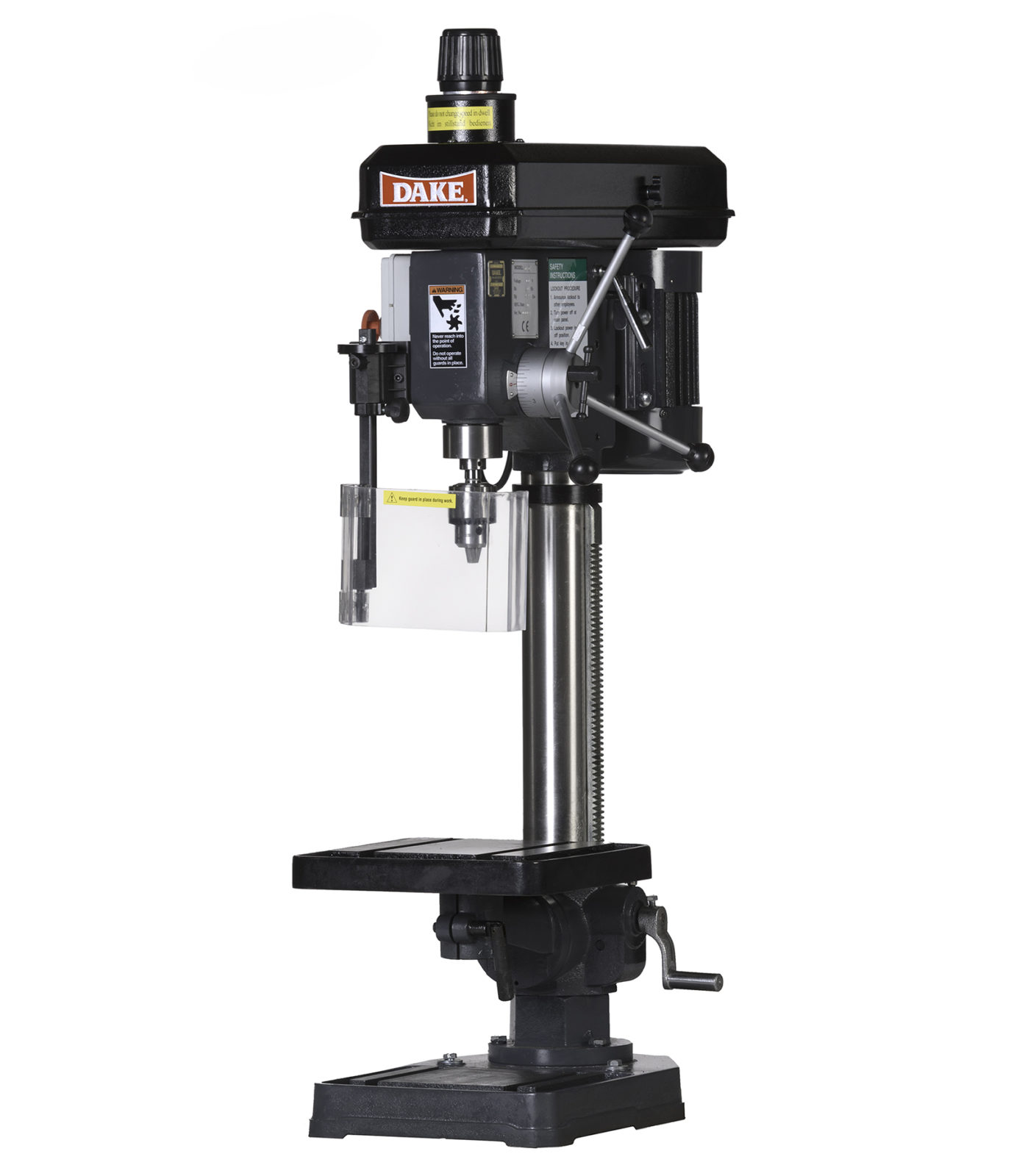

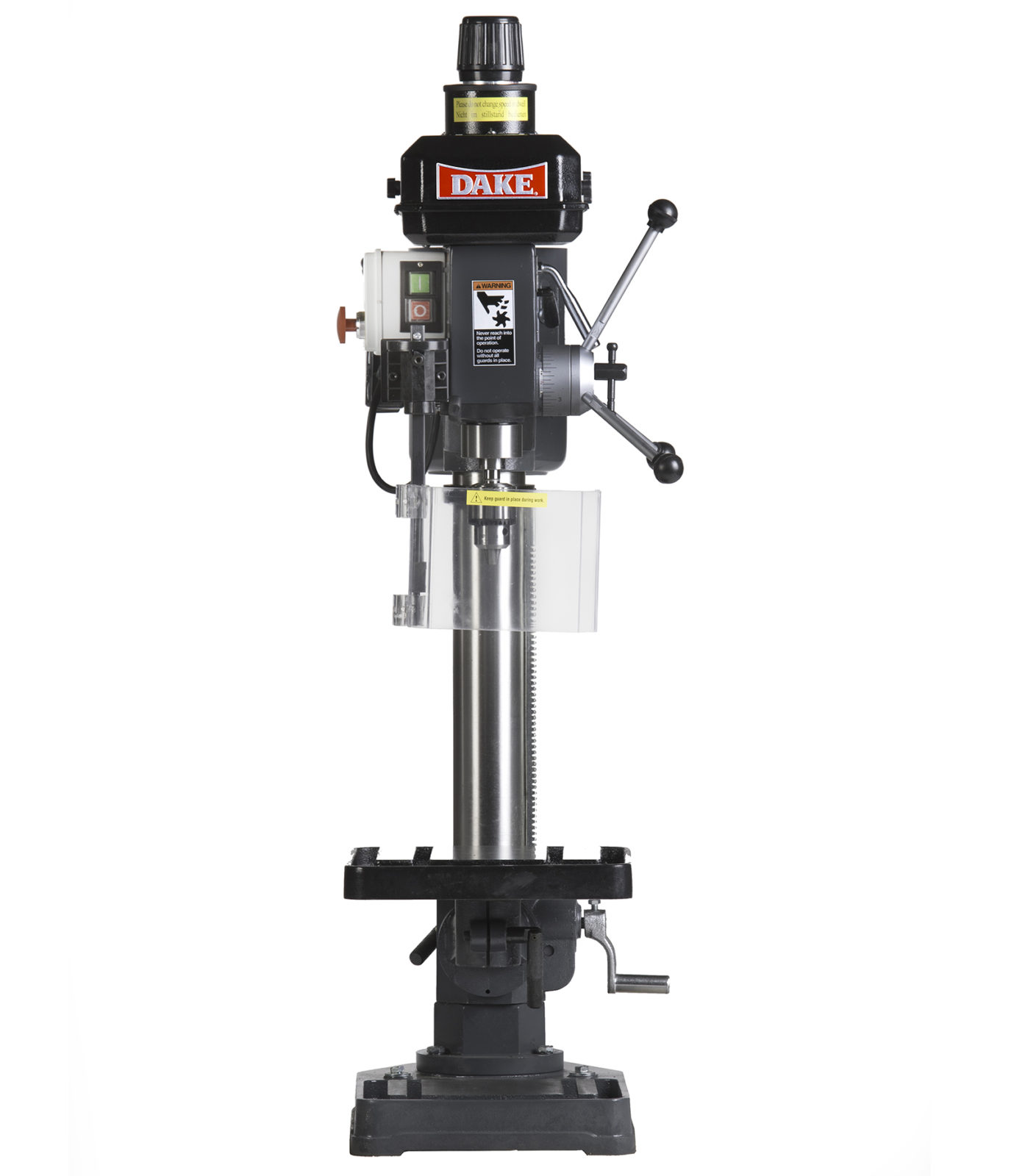

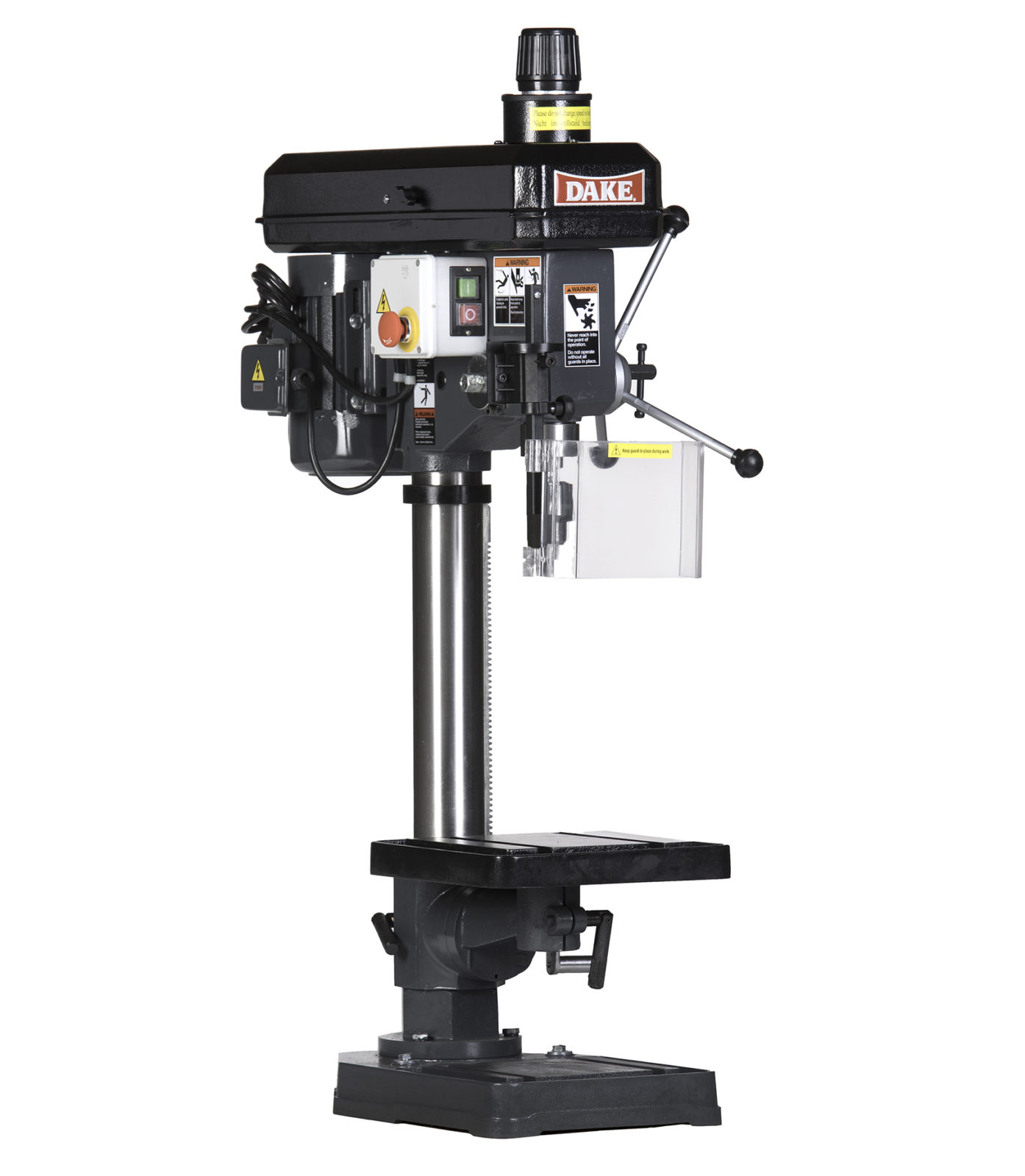

Dake 14″ Bench Drill Press, Model TB-16V – NEW
SKU #0905001
| Number | 977102-1 |
| Drill capacity | 5/8” |
| Horsepower | 1/2 |
| Motor | n/a |
| Spindle taper | MT2 |
| Working diameter | 14-1/8” |
| Number of speed | Mechanical variator |
| Spindle speed range | 545-4,000 rpm |
| Electrics | 110V 1PH |
| Weight | 175 lbs |
| Spindle travel | 3-1/8” |
| Column diameter | 3-1/8” |
| Table depth | 11-3/4” |
| Table width | 11-3/4” |
| Base depth | 17-3/4” |
| Base width | 12-1/4” |
| Spindle to table | 16-1/2” |
| Spindle to base | 26-1/2” |
| Overall height | 42-1/2” |
