Description

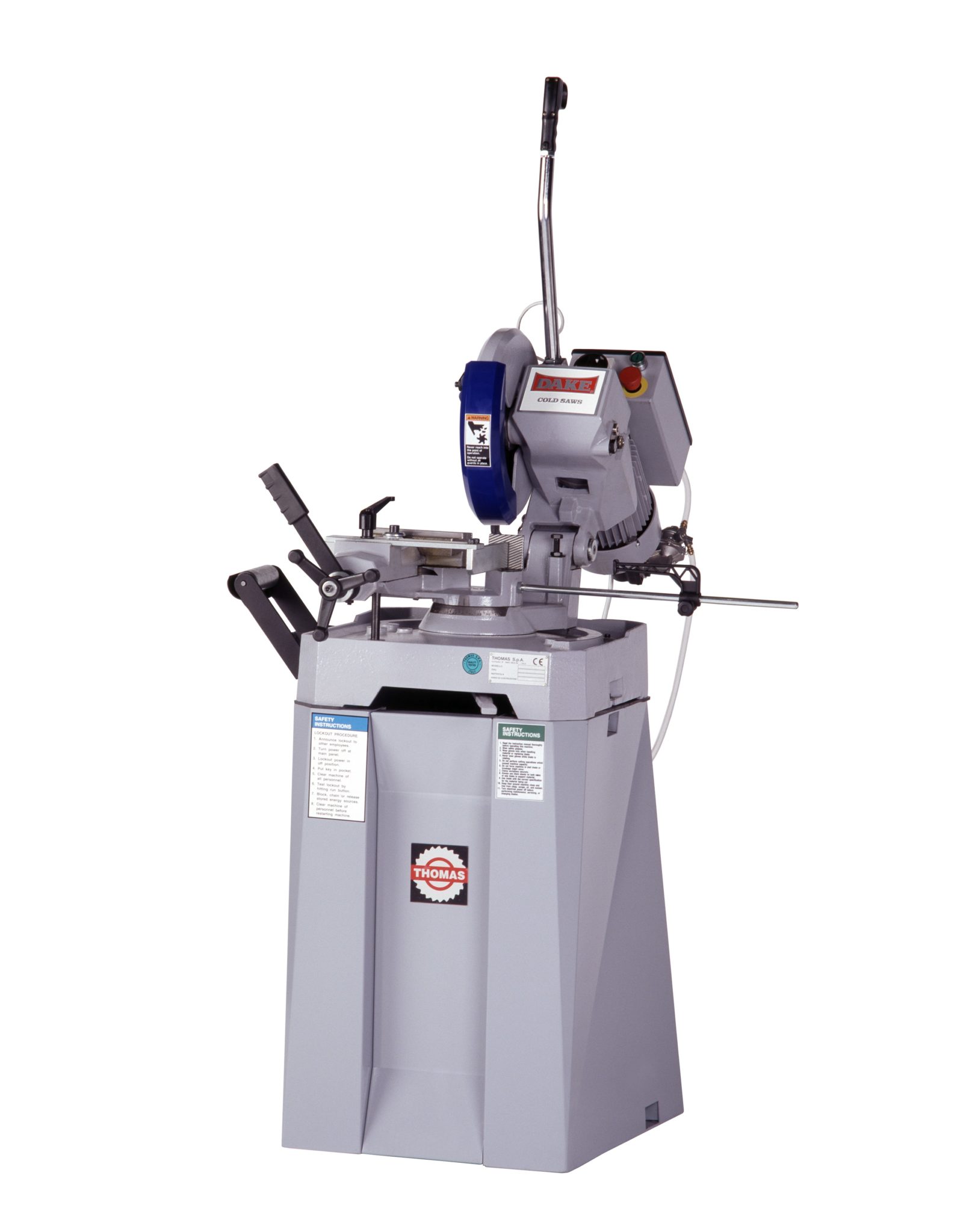

Dake 12 1/2″ Manual Cold Saw, Model Super Cut 315 – NEW
SKU #0919001
| Number | 9743151PH-1, 974315-2 |
| Voltage | 220V/440V 3 Phase; 120V 1 Phase |
| Horsepower | 1.6 HP – 2.35 HP |
| Cutting Ability | Ferrous/non-ferrous/plastics |
| Maximum blade diameter | 12-1/2” |
| Maximum vise opening | 4-5/8″ |
| Maximum feed vise opening | n/a |
| Maximum Angle | 45° right/left |
| Slotting | No |
| Phase | 3 Phase/1 Phase |
| Speeds | Three Phase: 22/44 rpm Single Phase: 44 rpm |
| Weight | 450 lbs |
| Solid round 90˚ capacity | 2-5/8” |
| Solid round 45˚ capacity | 2-1/2” |
| Tube 90˚ capacity | 3-5/8” |
| Tube 45˚ capacity | 3-1/2” |
| Square 90˚ capacity | 3-1/4” |
| Square 45˚ capacity | 3-1/8” |
| Rectangle 90˚ capacity | 4-1/4” x 2-3/4” |
| Rectangle 45˚ capacity | 3-1/4” x 2-3/4” |
| Work height | 38-1/2” |
| Height | 59” |
| Width | 26″ |
| Depth | 36” |
