Description

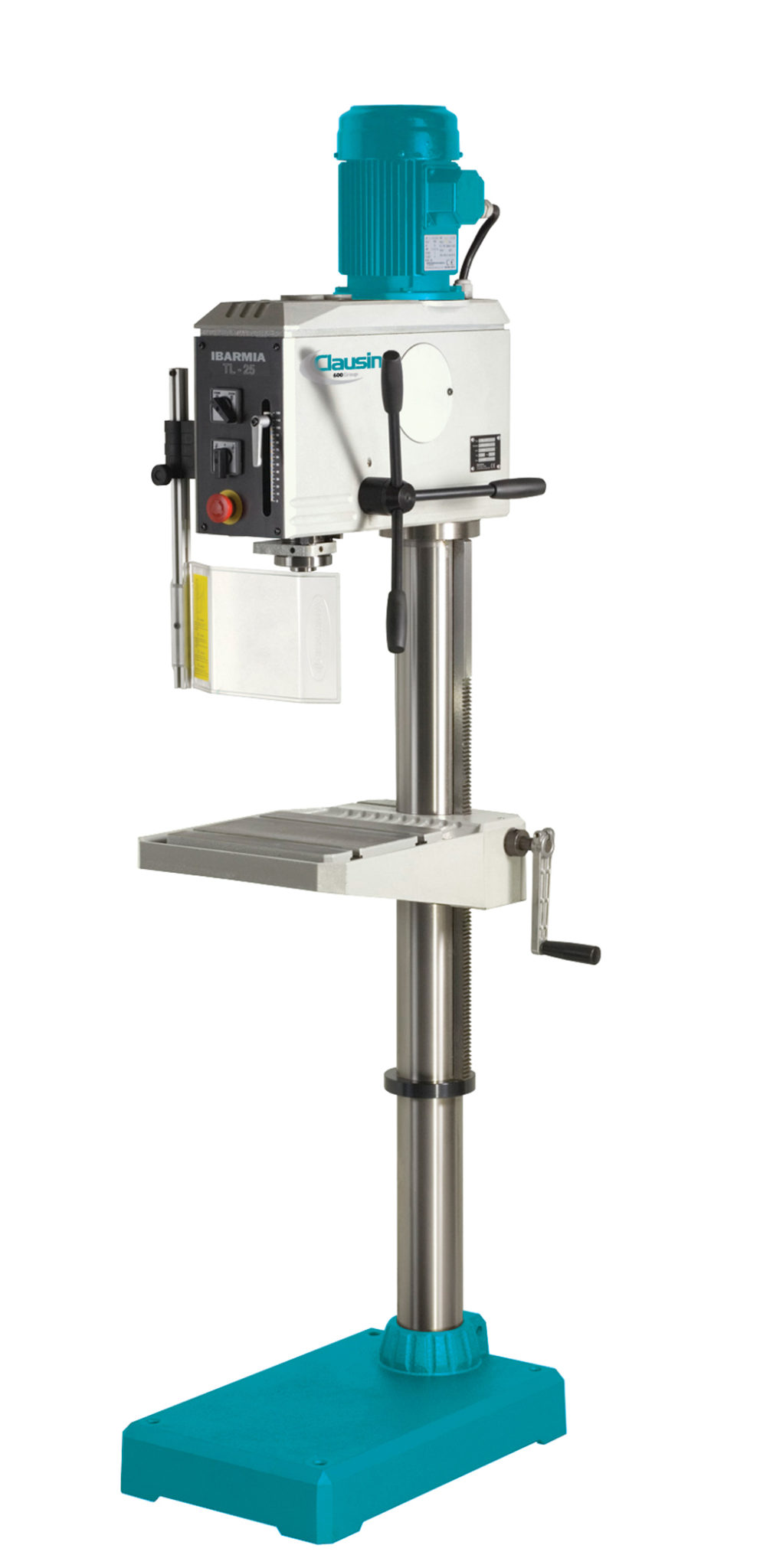

Clausing Ibarmia 19.5″ Round Column Geared Head Drill, Model TL-25 – NEW
Prices subject to change every 10 days due to economic changes please call us to verify the price!
SKU # 0705002
Standard Features…
- Drilling capacity in steel: 1″ (25mm) maximum
- Drilling capacity in cast iron: 1.18″ (30mm) maximum
- Tapping capacity in steel: .71″ (18mm) maximum
- Tapping capacity in cast iron: .87″ (22mm) maximum
- Depth scale and adjustable depth stop
- “RS” models are equipped with automatic feed reversing TL25 system for tapping
- Thermomagnetic switch
- Spindle reversing switch
- Automatic tool ejector
- Emergency STOP
- High/low speed range selector
- Drill guard with microswitch
| Models |
TL25
|
|
| Auto feed reversing “RS” Models |
TL25RS
|
|
| Capacities | ||
| Maximum drilling capacity in steel |
1″ (25mm)
|
|
| Maximum drilling capacity in cast iron |
1.18″ (30mm)
|
|
| Maximum tapping capacity in steel |
.71″ (18mm)
|
|
| Maximum tapping capacity in cast iron |
.87″ (22mm)
|
|
| Specifications | ||
| Spindle taper |
3MT
|
|
| Quill diameter |
2.44″ (62mm)
|
|
| Spindle travel (drilling depth) |
4.72″ (120mm)
|
|
| Main motor power |
1/1.5 Hp (.73/1.1 Kw)
|
|
| No. of speeds (see speed charts) |
8
|
|
| Dimensions and Weights | ||
| Height (A) |
75.8″
(1925mm) |
|
| Height (A1) |
–
|
|
| Base: length x width (B) |
24″ x 15″ (600x380mm)
|
|
| Base to spindle (C) |
47.6″ (1210mm)
|
|
| Spindle center to column (D) |
9.84″ (250mm)
|
|
| Spindle to Table (E) | ||
| Â Â Â Â Minimum |
4.13″ (105mm)
|
|
| Â Â Â Â Maximum |
25.2″ (640mm)
|
|
| Worktable: length x width (F) | ||
| Base height (G) |
3.7″ (95mm)
|
|
| Column diameter (H) |
3.94″ (100mm)
|
|
| Floor to top of base (I) |
–
|
|
| Cabinet height (J) |
–
|
|
| Net weight |
408 lbs (185kg)
|
|
| Shipping weight |
496 lbs (225kg)
|
|
| Shipping dimension (length x width x height) |
20″ x 36″ x 75″ (.5 x .9 x 2.1m)
|
|
