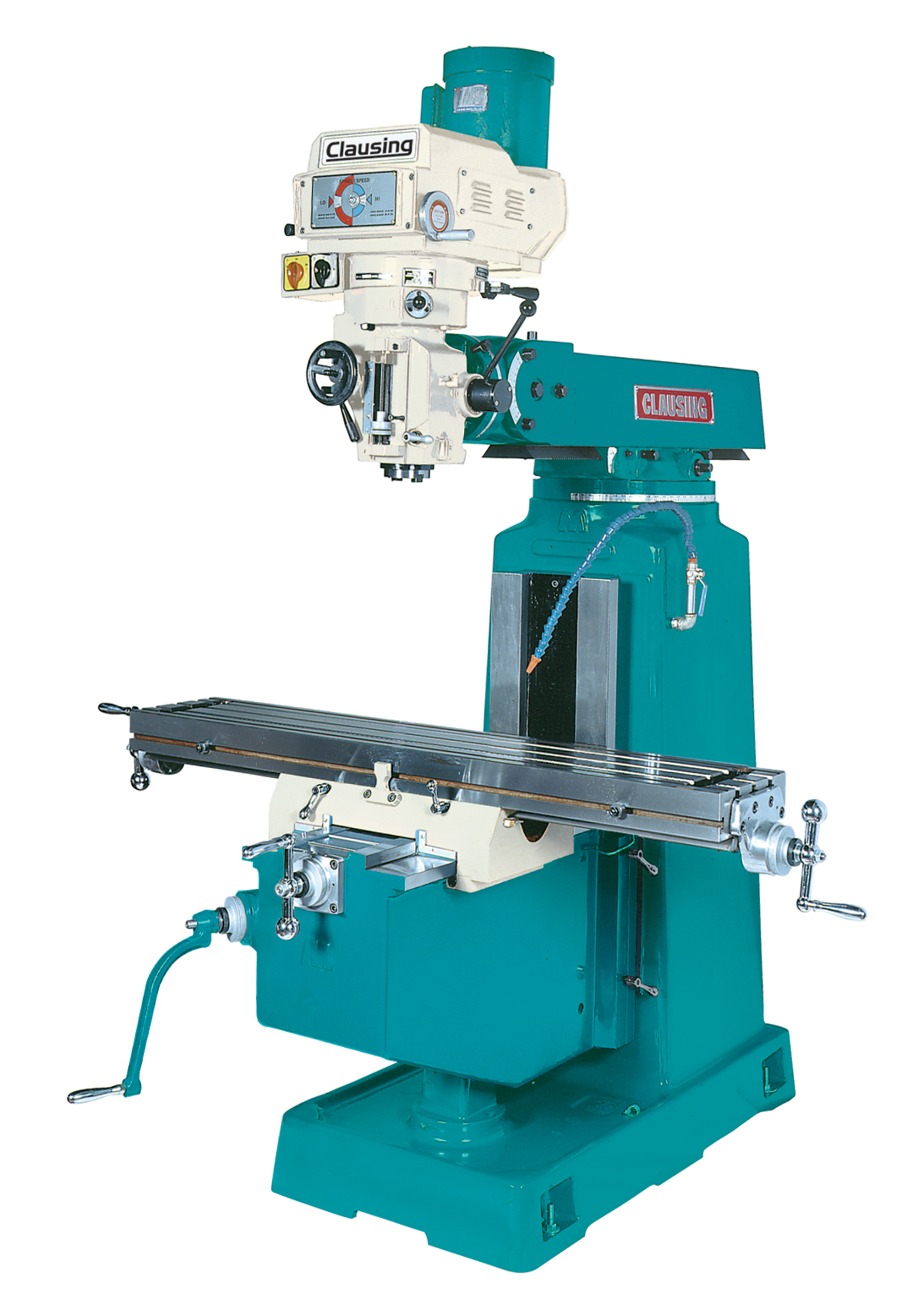

Clausing 4VSQ Vertical Knee Mill, 10″ x 54″, 5 HP – NEW
Prices subject to change every 10 days due to economic changes please call us to verify the price!
SKU #0712002
| Specifications | ||
| Models |
4VSQ
|
|
| Table & Ways | ||
| Table Size |
10″ x 54″ (254x1372mm)
|
|
| No. of T-Slots |
3
|
|
| T-Slot Width |
5/8″ (16mm)
|
|
| T-Slot Center Distance |
2.48″ (63mm)
|
|
| Table Ways |
Dovetail
|
|
| Knee Ways |
Square
|
|
| Column Ways |
Square
|
|
| Travels | ||
| X Longitudinal |
36″ (915mm)
|
|
| Y Cross |
15.74″ (400mm)
|
|
| Knee |
17.4″ (450mm)
|
|
| Ram |
20.5″ (520mm)
|
|
| Motors & Spindle | ||
| Spindle Motor |
5 hp
|
|
| Amp. Draw 208v. |
15
|
|
| Amp. Draw 230v. |
15
|
|
| Amp. Draw 460v. |
8
|
|
| Variable Spindle Speed rpm |
60-4300
|
|
| Low Range rpm |
60-500
|
|
| High Range rpm |
550-4300
|
|
| Main Spindle Taper |
ISO 40
|
|
| Spindle Travel |
5″ (127mm)
|
|
| Quill Feed – in/rev. (mm/rev) |
.0015/.0031/.006 (.004/.008/.015mm)
|
|
| Quill Diameter |
4.13″ (105mm)
|
|
| Construction & Weight | ||
| Column Turret Diameter |
16.33″ (415mm)
|
|
| Knee Width |
14.96″ (380mm)
|
|
| Column Bearing Length |
19.69″ (500mm)
|
|
| Saddle/Table Bearing Length |
20.47″ (520mm)
|
|
| Ram/Turret Bearing Length |
20.67″ (525mm)
|
|
| Ram Length |
38.63″ (980mm)
|
|
| Table Load |
990 Ibs. (450kg)
|
|
| Net Weight |
3,417 Ibs. (1550kg)
|
|
 |
|
| Dimensions | |
| Model |
4VSQ40
|
| A Height |
91″ (2310mm)
|
| B Depth |
80.3″ (2040mm)
|
| C Width |
73.6″ (1870mm)
|
| D Table to Spindle |
1.97″-19.68″ (50-500mm)
|
| E 45° Inward |
0-16.53″ (0-420mm)
|
| F Spindle ø to column |
0-26″ (0-660mm)
|
| G 45° Outward |
8.85″-29.13″ (225-740mm)
|
| H Head Tilt |
90° right & left
|
