Description

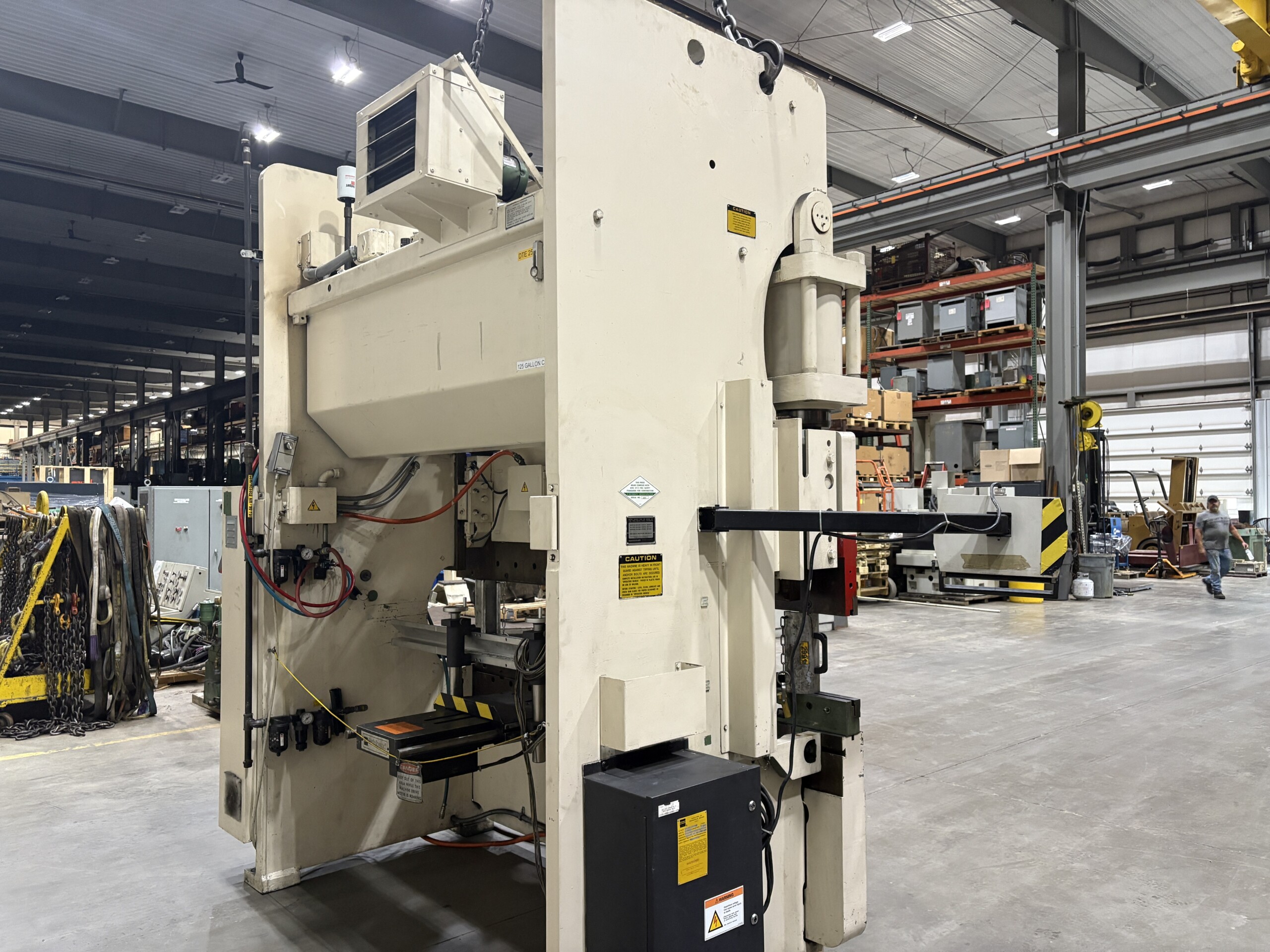

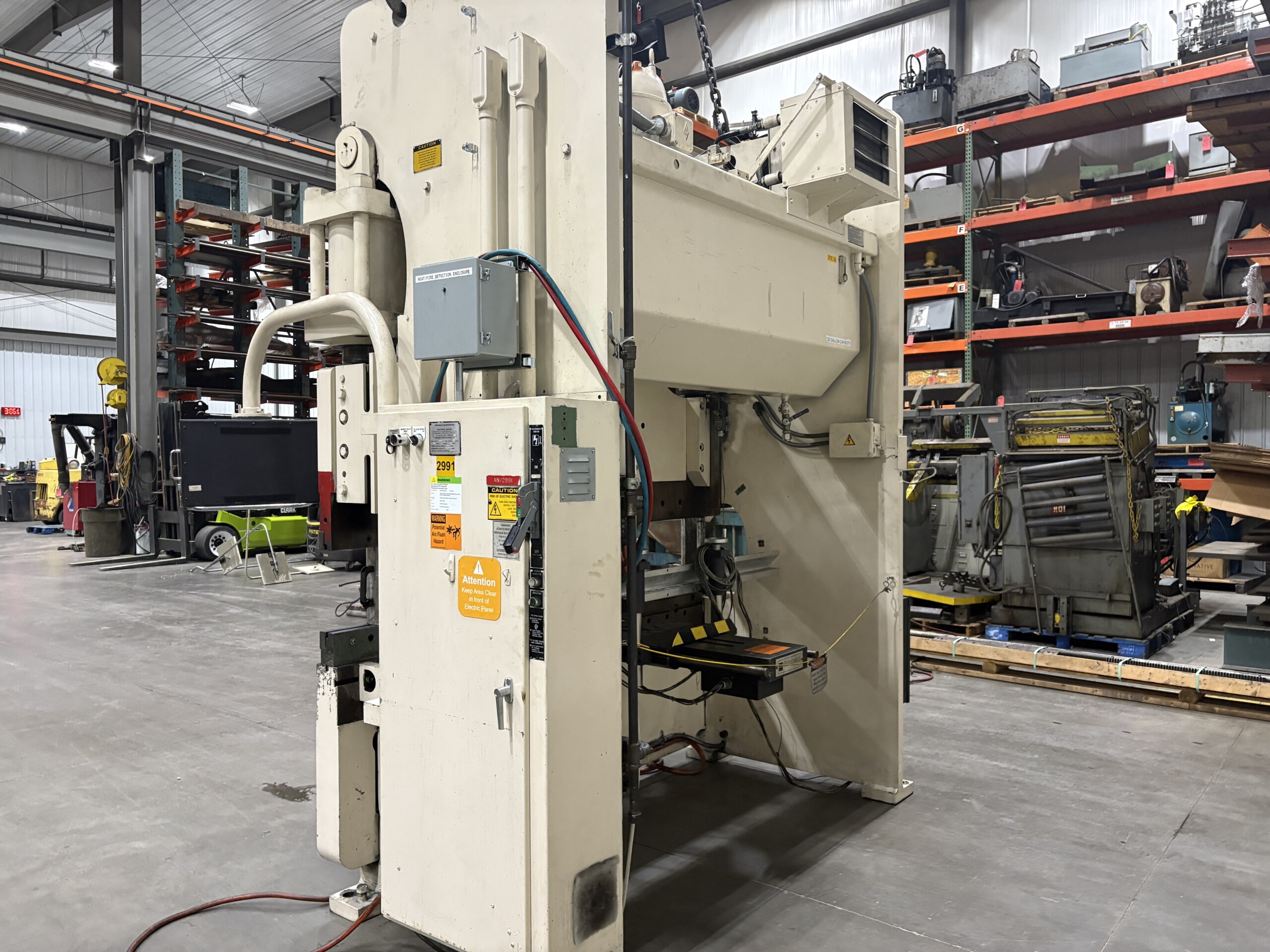

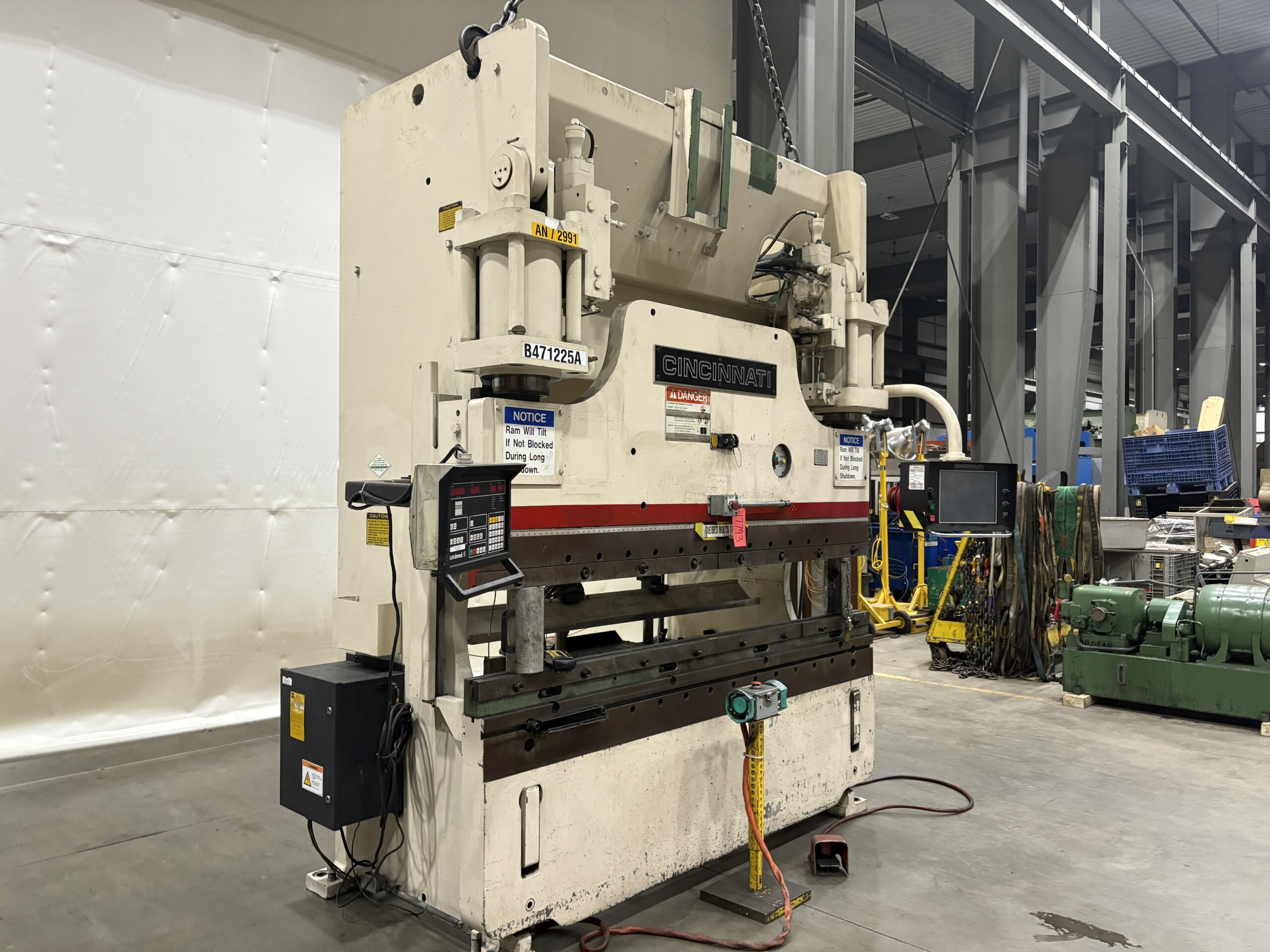

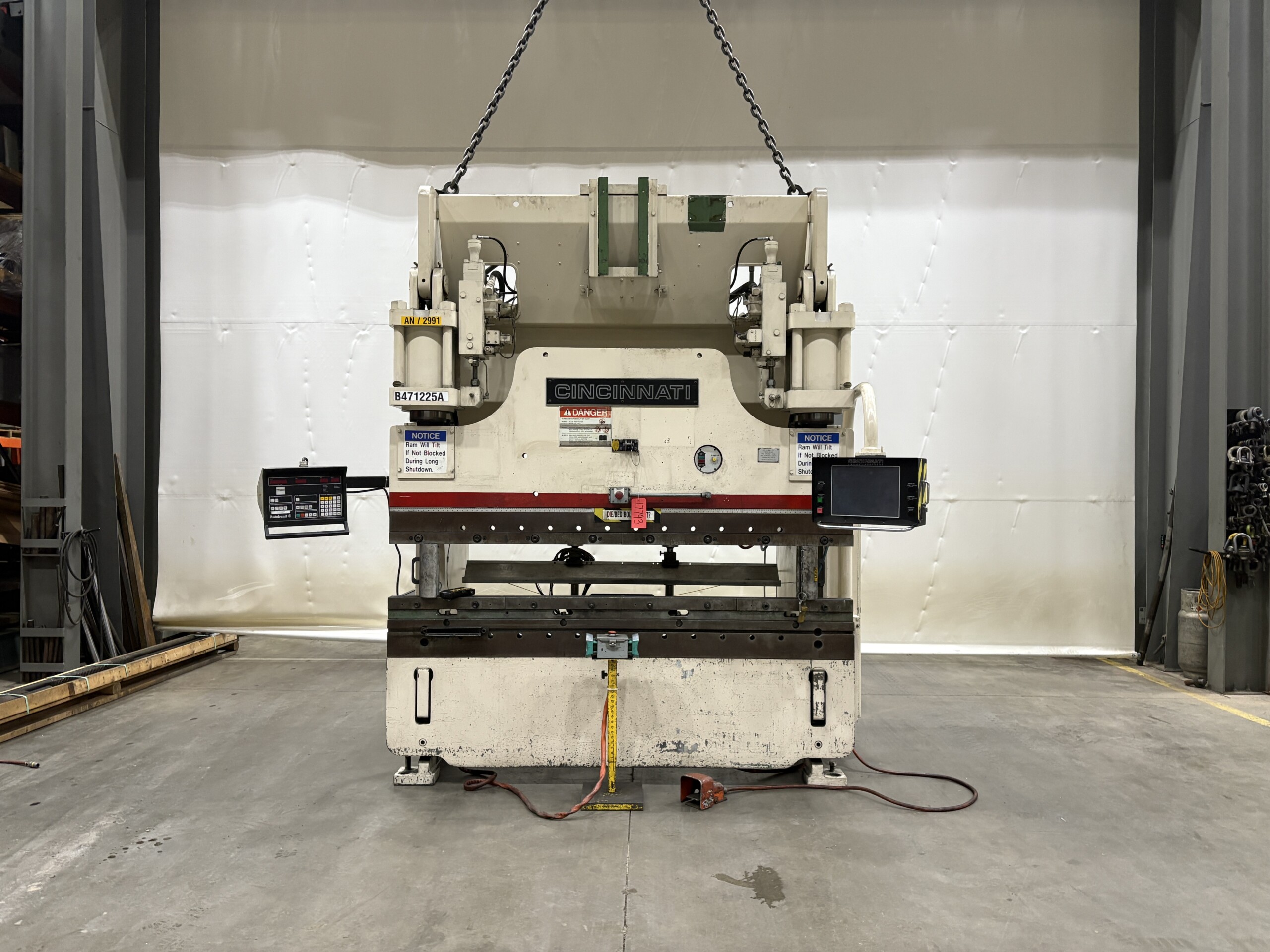

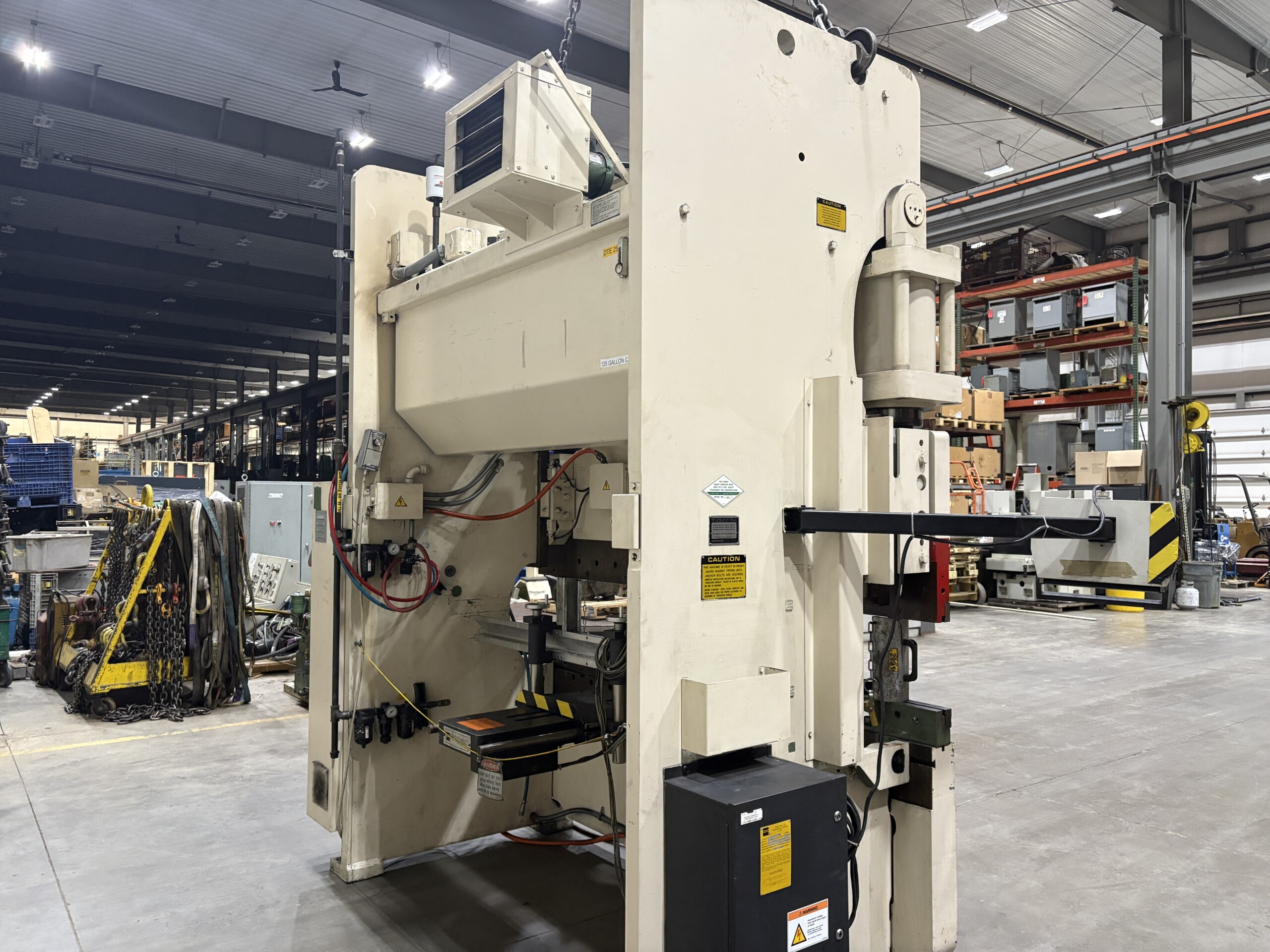

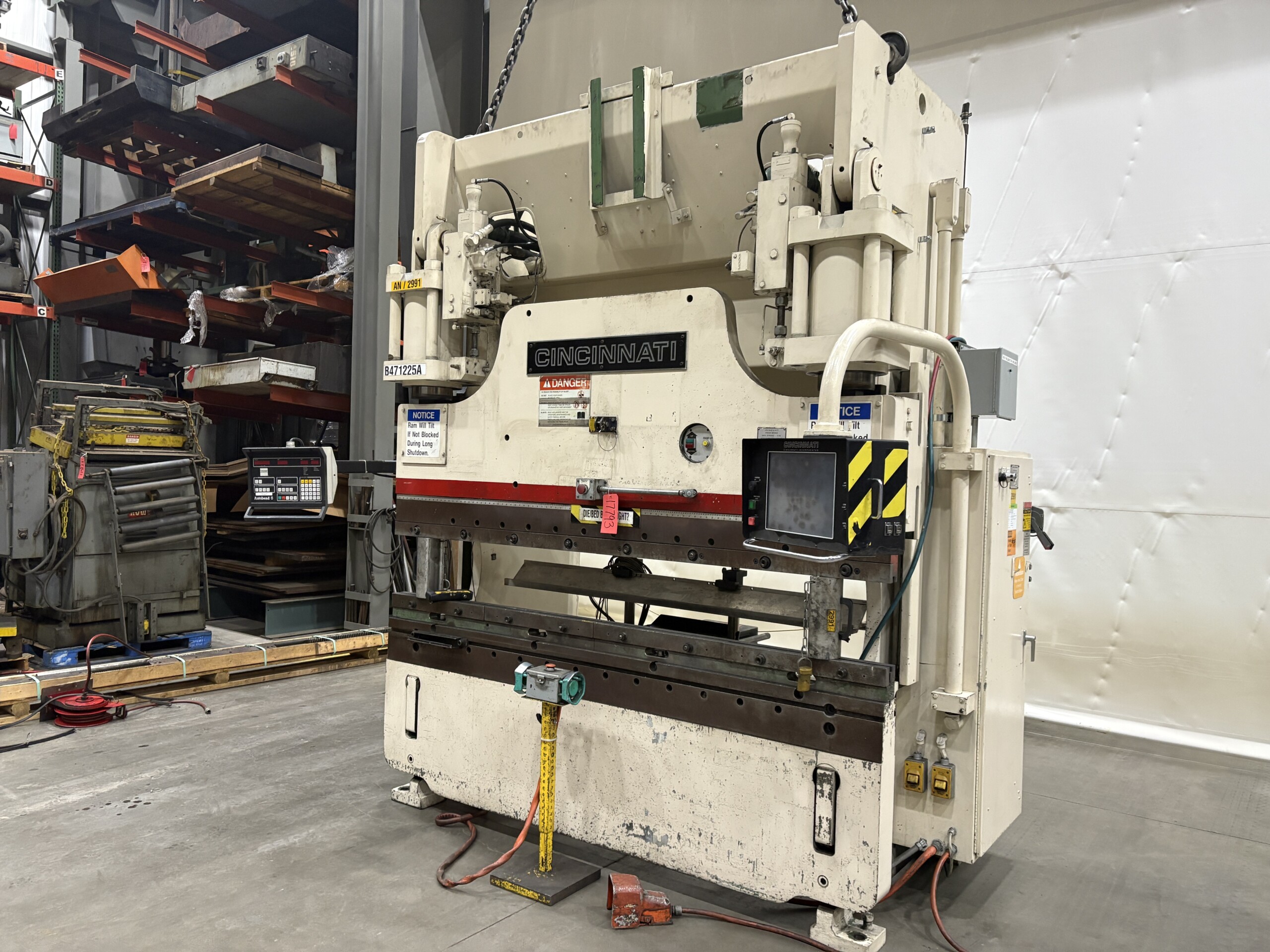

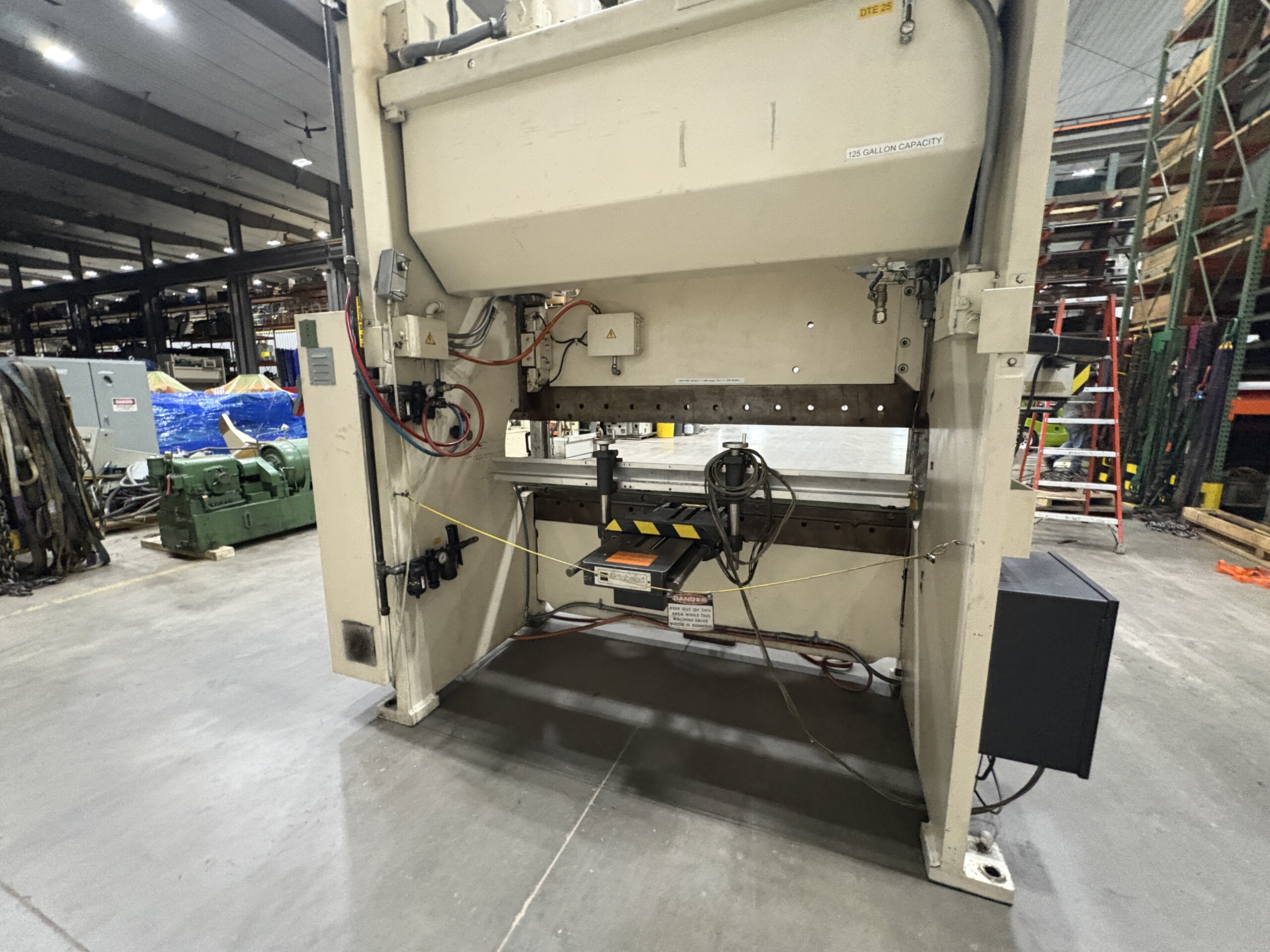

Cincinnati 8’ x 175 Ton Hydraulic Press Brake, Model 175 FMII x 6
Asset # 17793

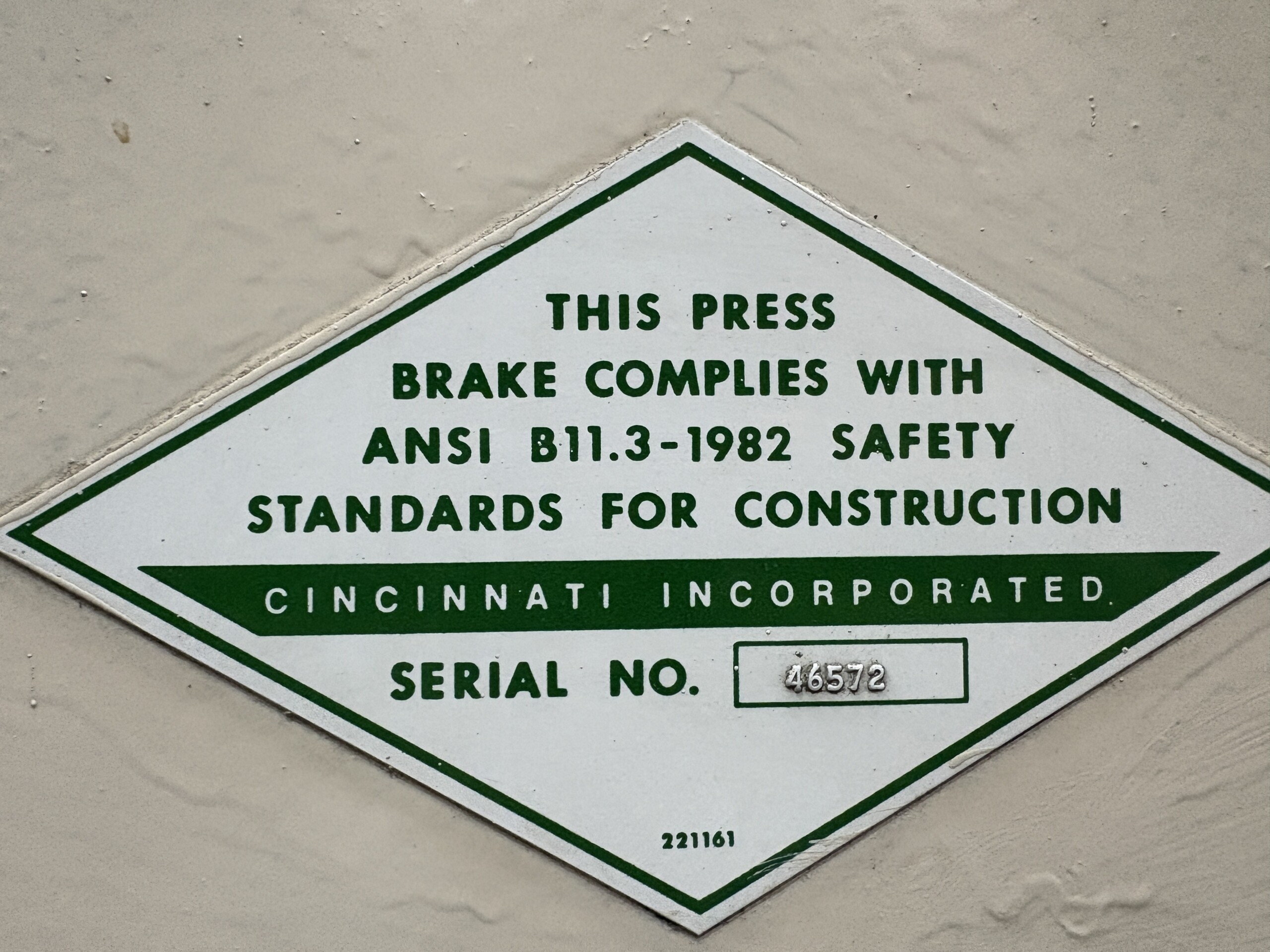

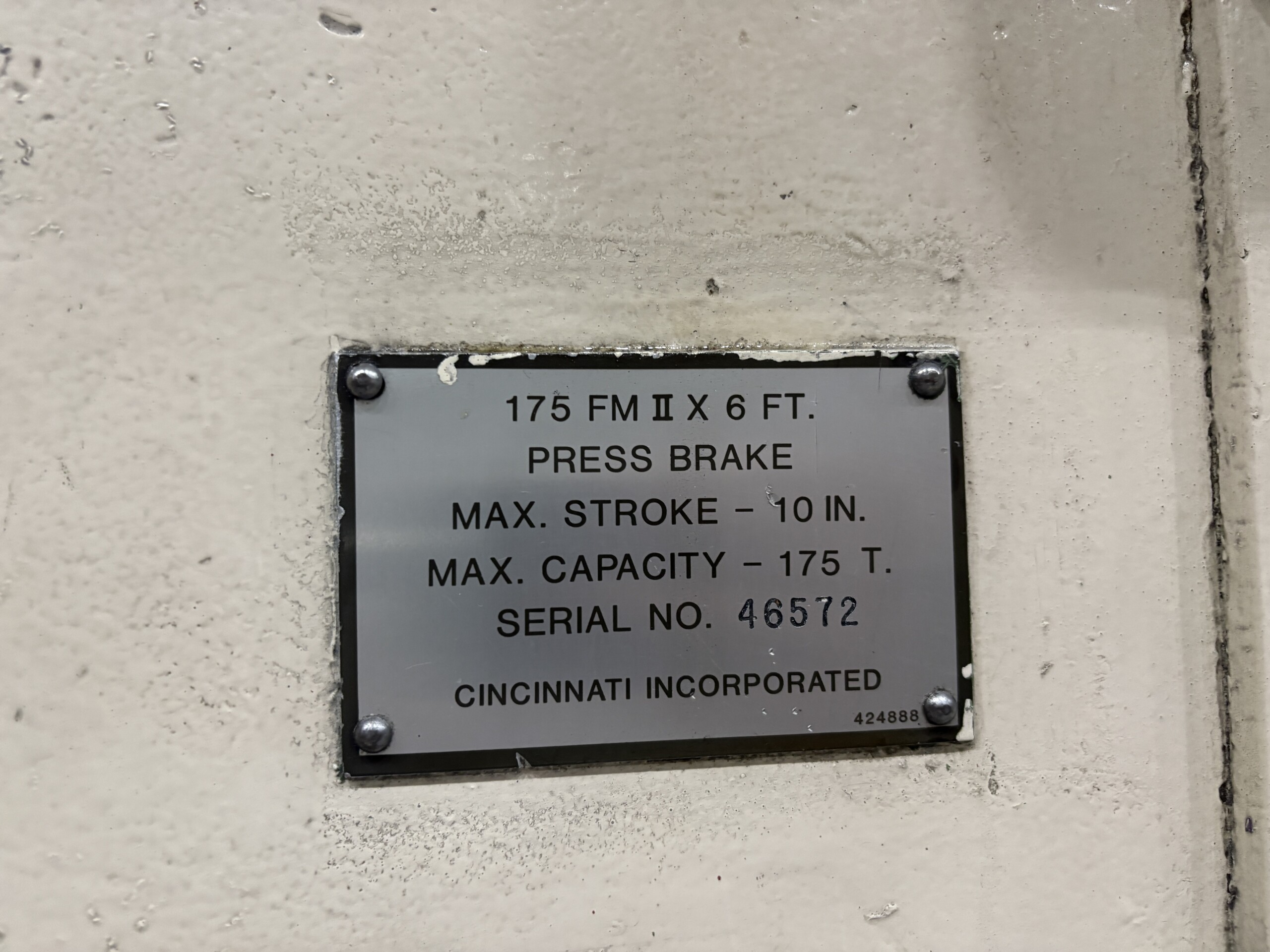

Serial # 46572
Specifications:
Total Die Surface 8’
Tonnage 175 Tons
Clear Distance Between Housings 6’6 ¾”
Distance from Floor to Bed 34”
Bed Width 4 ½”
Capacity for Mild Steel 3/16” x 13’4” (Air Bending)
Over Vee Die Opening 1 ½”
Maximum Speed at Full Tonnage 49 IPM
Maximum Tonnage at Full Forming Speed 130 Tons
Standard Stroke Length 10”
Throat Clearance from Die Centerline 8”
Open Height 17”
Closed Height 7”
High Approach 260 IPM
Variable Forming 1 to 65 IPM
Variable Return 1 to 290 IPM
Standard Motor 25 HP
Overall Height 123 ½”
Overall Dimensions 61” x 96”
Standard Weight 18,500 lbs.

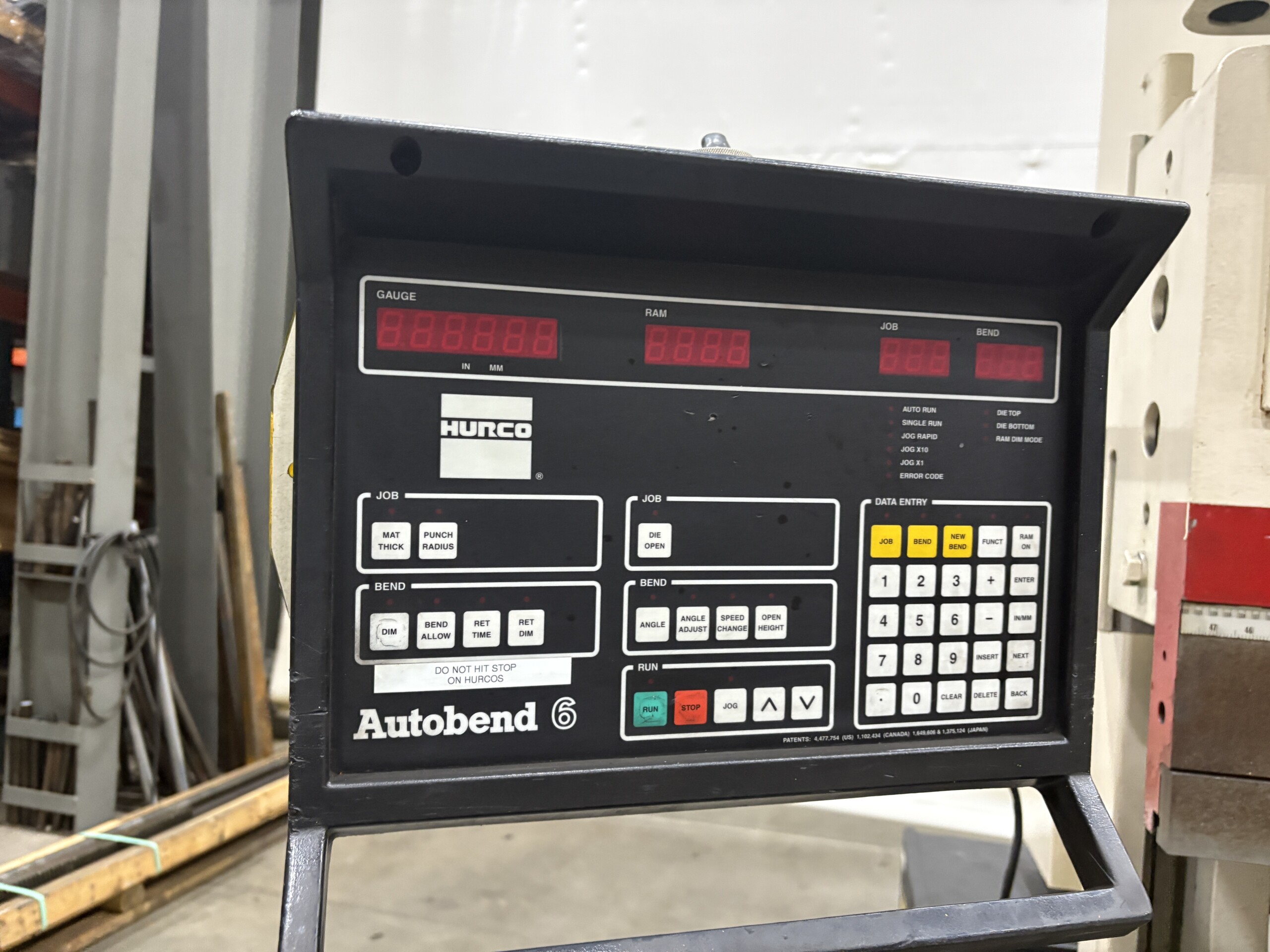

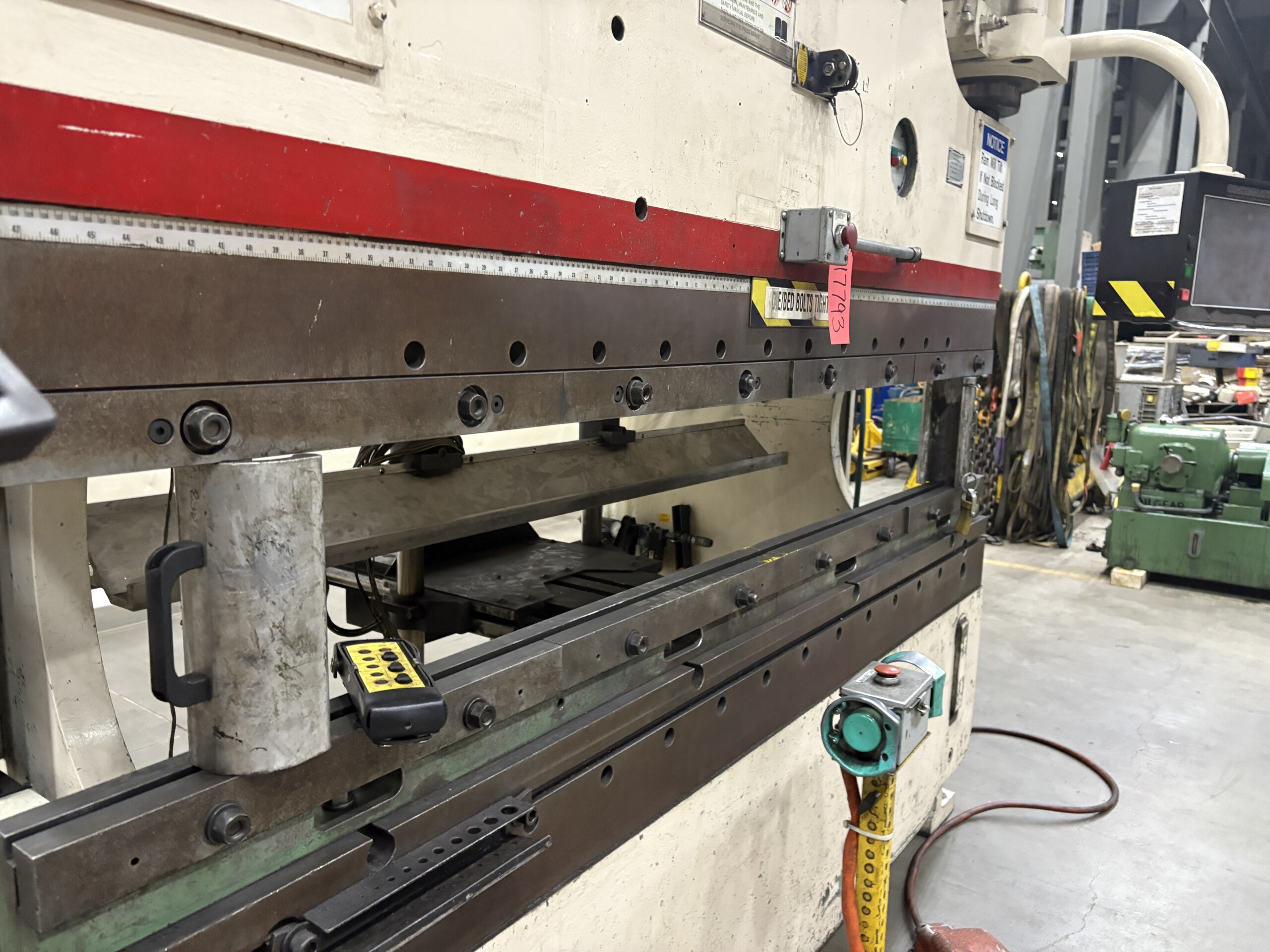

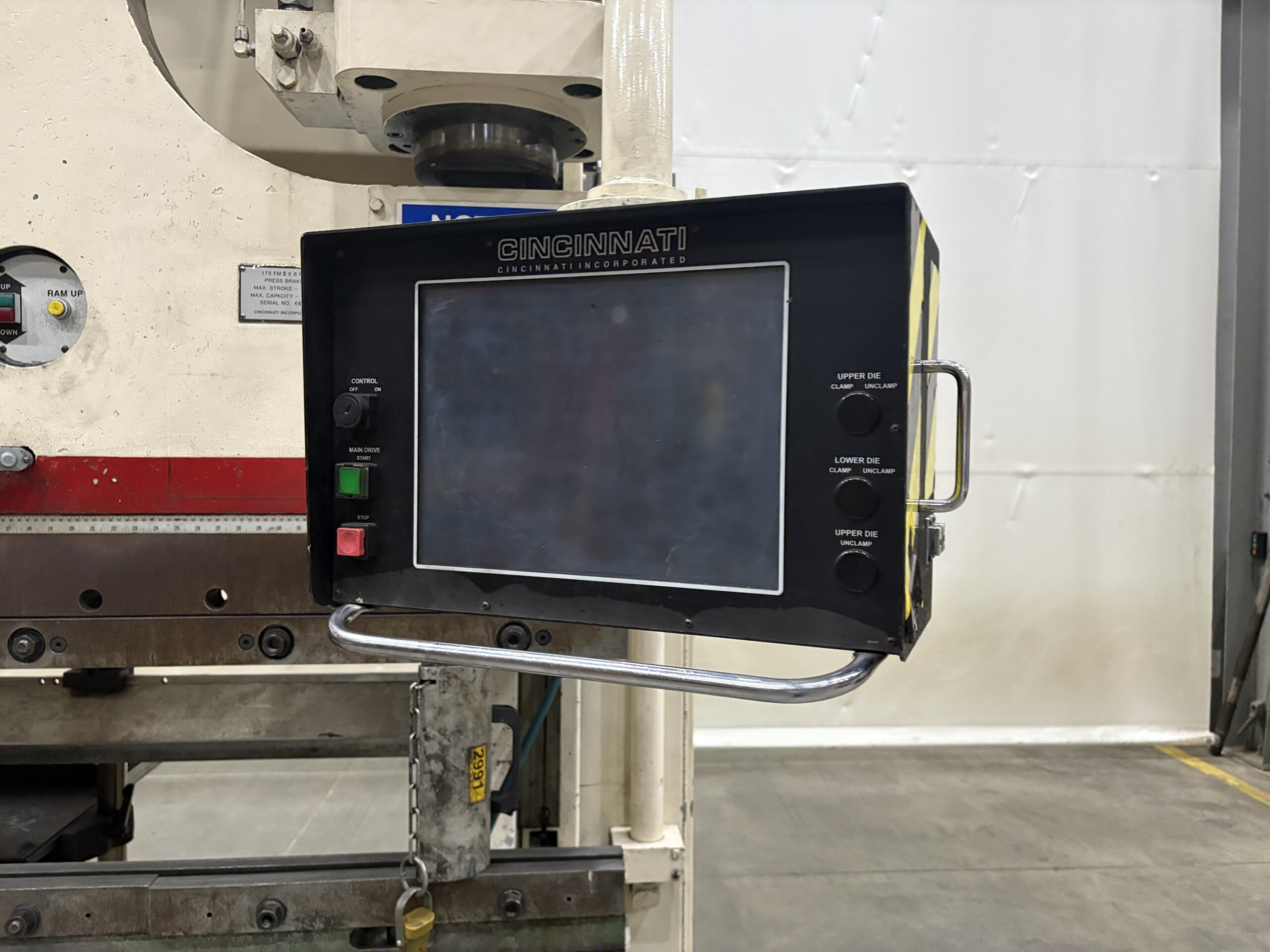

Cincinnati touchscreen control and Hurco 36″ Backgauge.
Preliminary Specifications – Subject to Verification
