Description

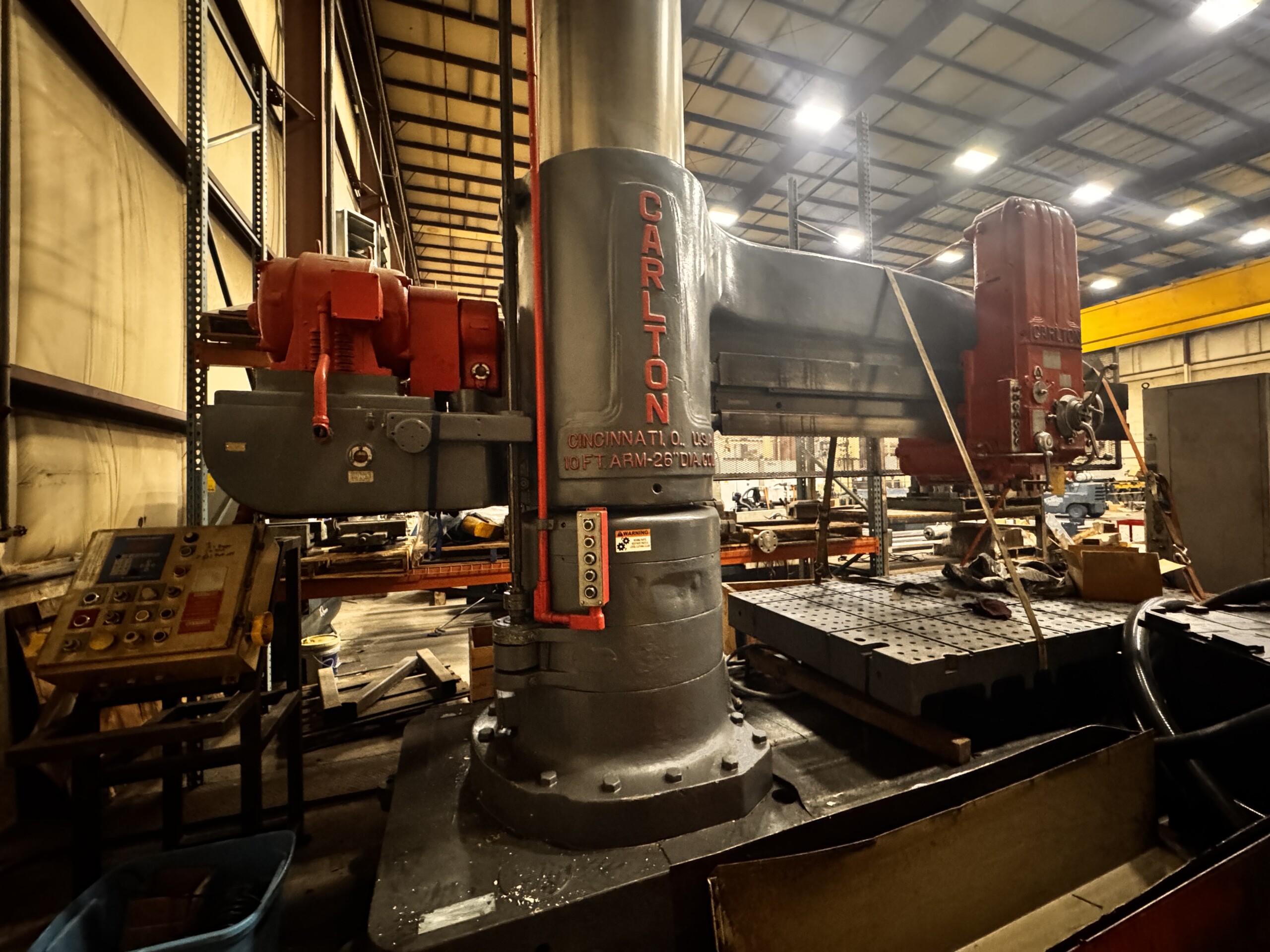

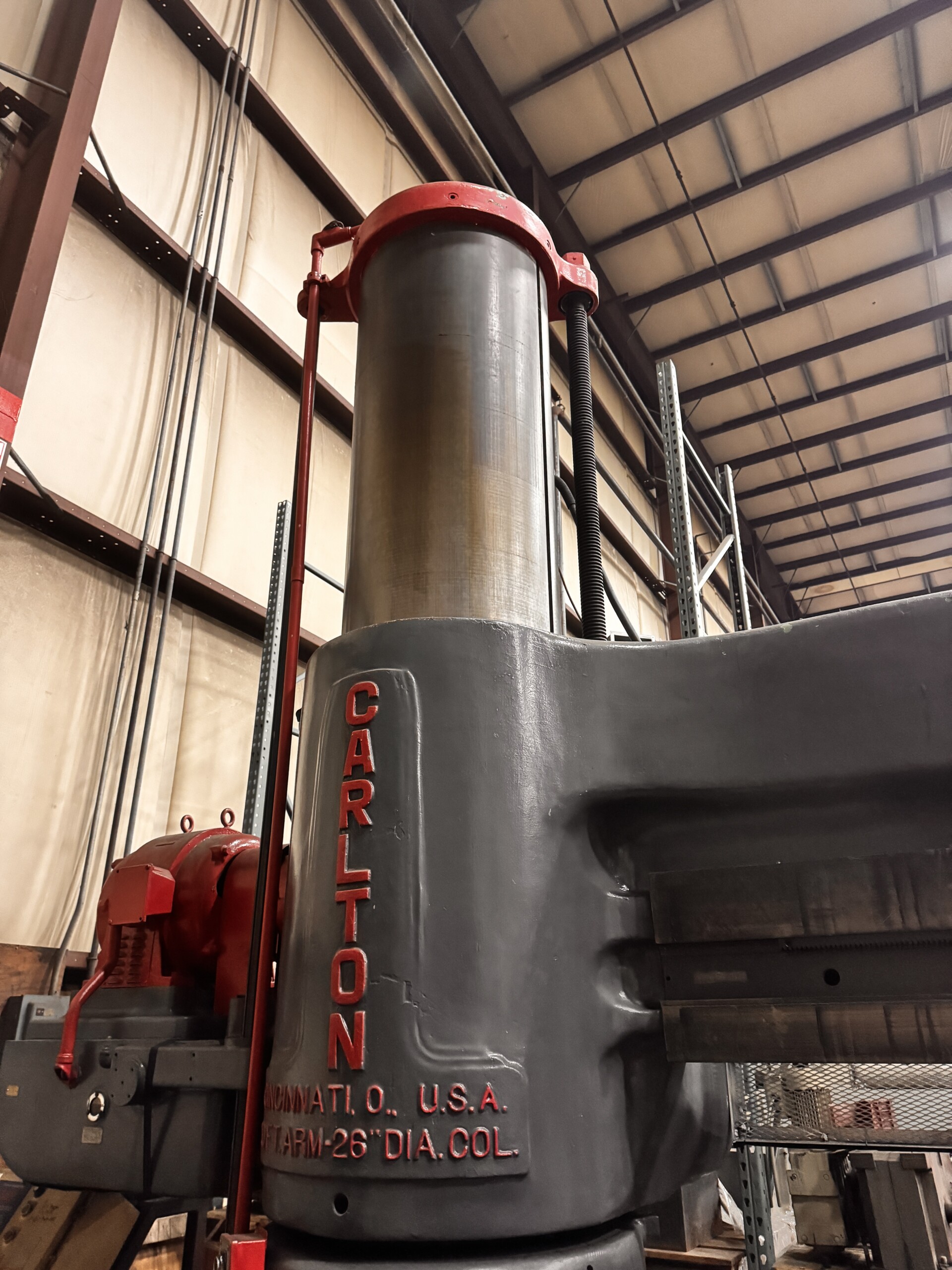

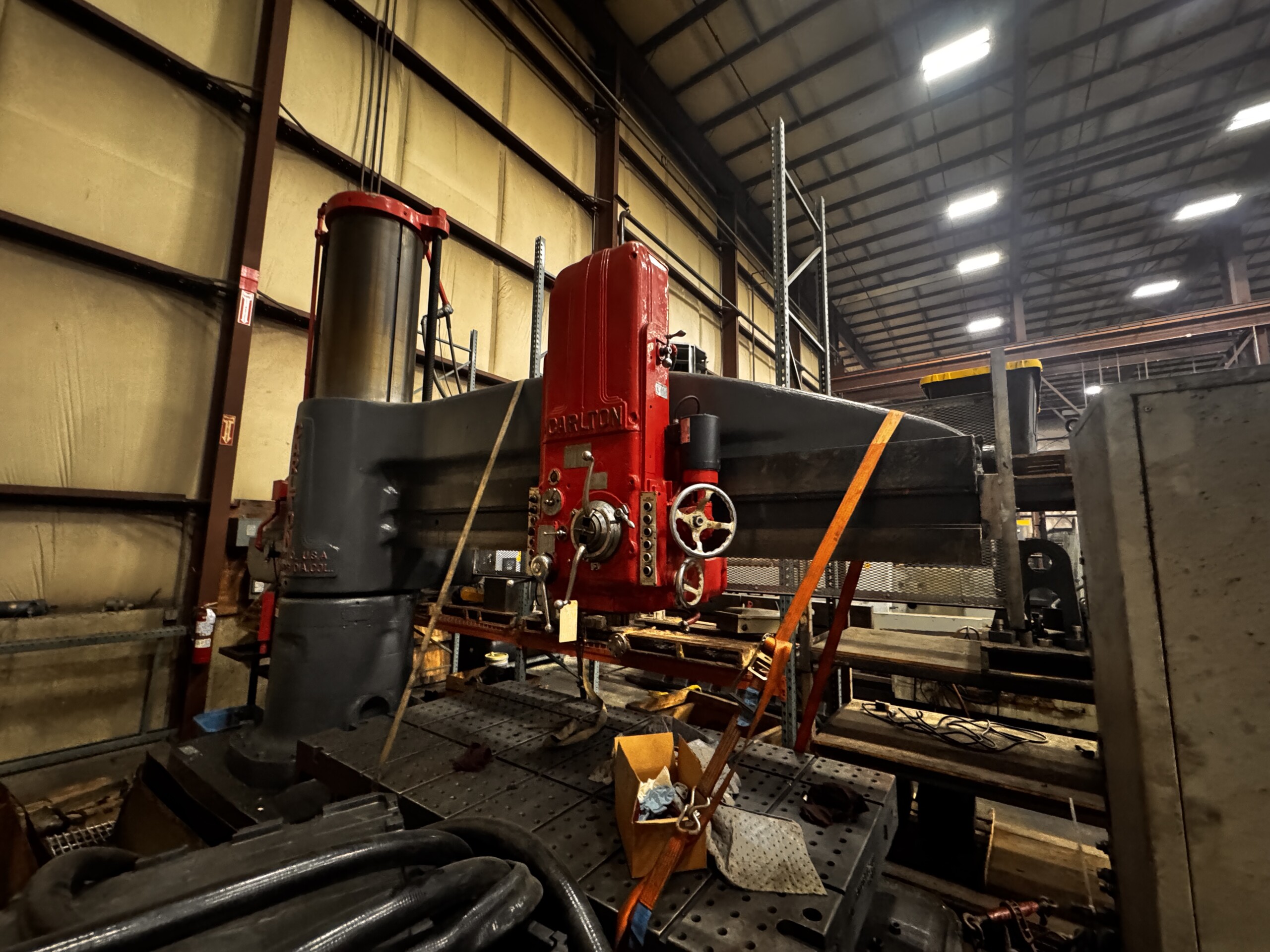

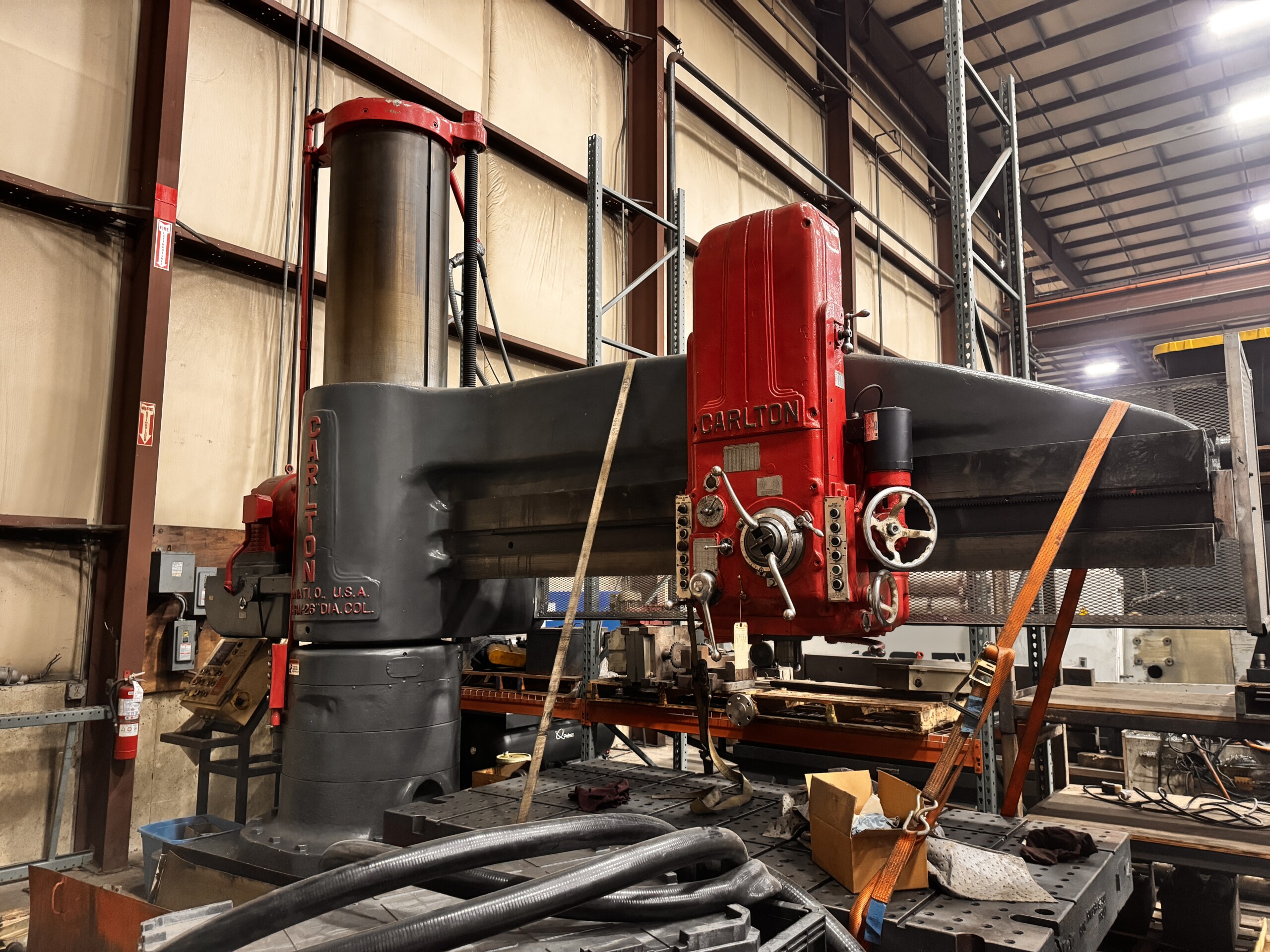

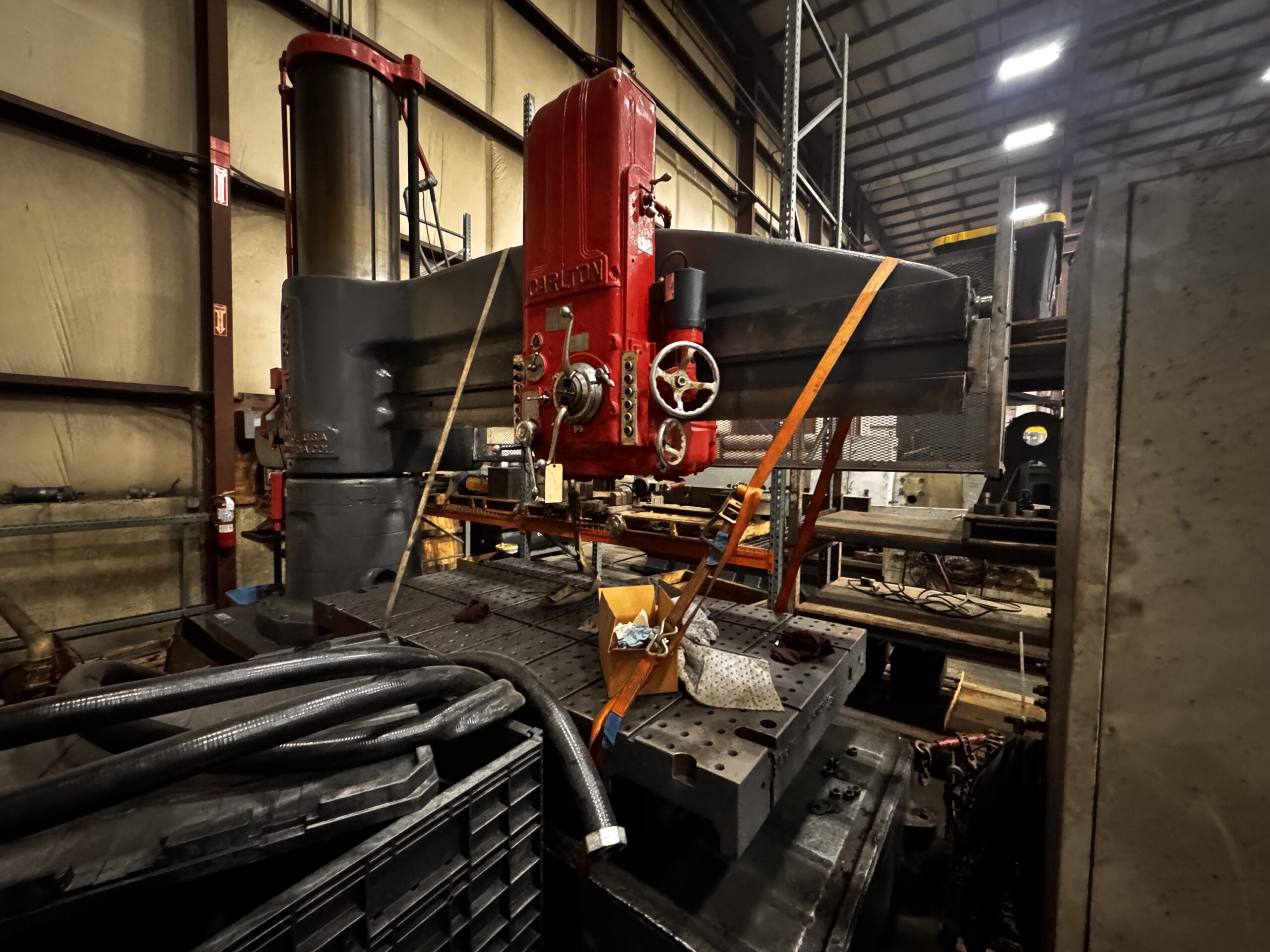

Carlton 10′ x 26″ Model 5A Radial Drill
Asset # 17865
| Distance from Face of Column to Center of Spindle | 10.0-16.5″ | Traverse of Head on Arm | 8’8″ |
| Spindle Radius | 34″-11’6″ | Drills to Center of Circle | 20′ |
| Spindle to Base Distance | 10.5″-8’4″ | Swing of Arm | 12’9″ |
| Working Surface of Base | 4’9″W x 10’6″L | Plain Box Table – Top Working Surface | 26″ x 40″ |
| Height of Base | 23″ | Plain Box Table – Side Working Surface | 14″ x 40″ |
| Vertical Travel of Spindle in Head | 24″ | Plain Box Table – Height | 20″ |
| Bearing of Head on Arm | 23.25″ | Universal Table – Top Working Surface | 28″ x 32″ |
| Bearing of Arm on Column | 52″ | Universal Table – Side Working Surface | 18″ x 28″ |
| Maximum Height over Head | 14.8″ | Universal Table – Height | 24″ |
| Height Over Column Cap | 14’5″ | Net Weight of Bare Machine (less motor) | 56,690lbs |
| Spindle Diameter | 4″ | Shipping Weight of Bare Machine (less motor) | 56,690lbs |
| Morse Taper in Spindle | #6 | Shipping Weight of Plain Box Table | 1,025lbs |
| Traverse of Arm on Column | 4’7.5″ | Shipping Weight of Universal Table | 1,280lbs |
