Description

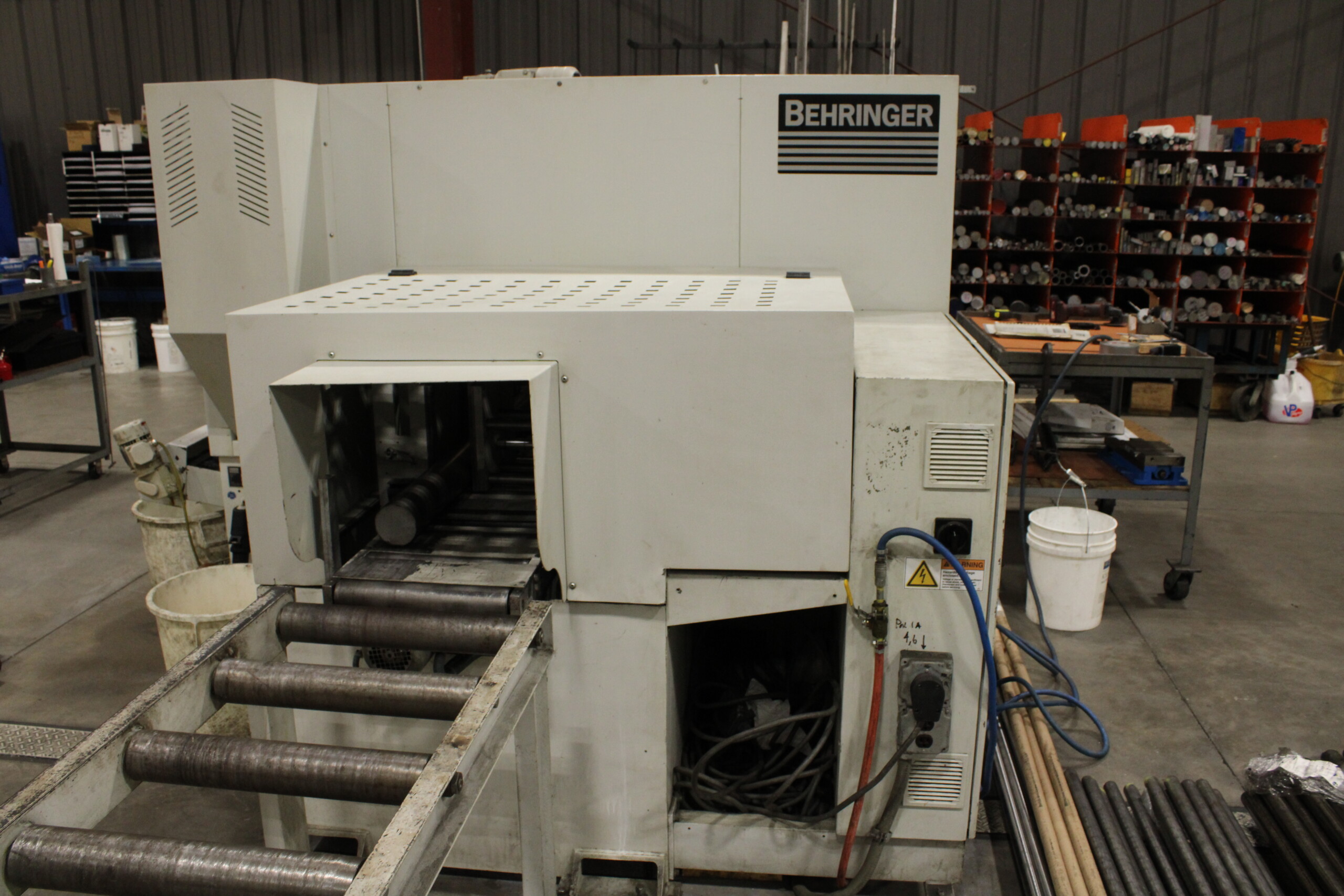

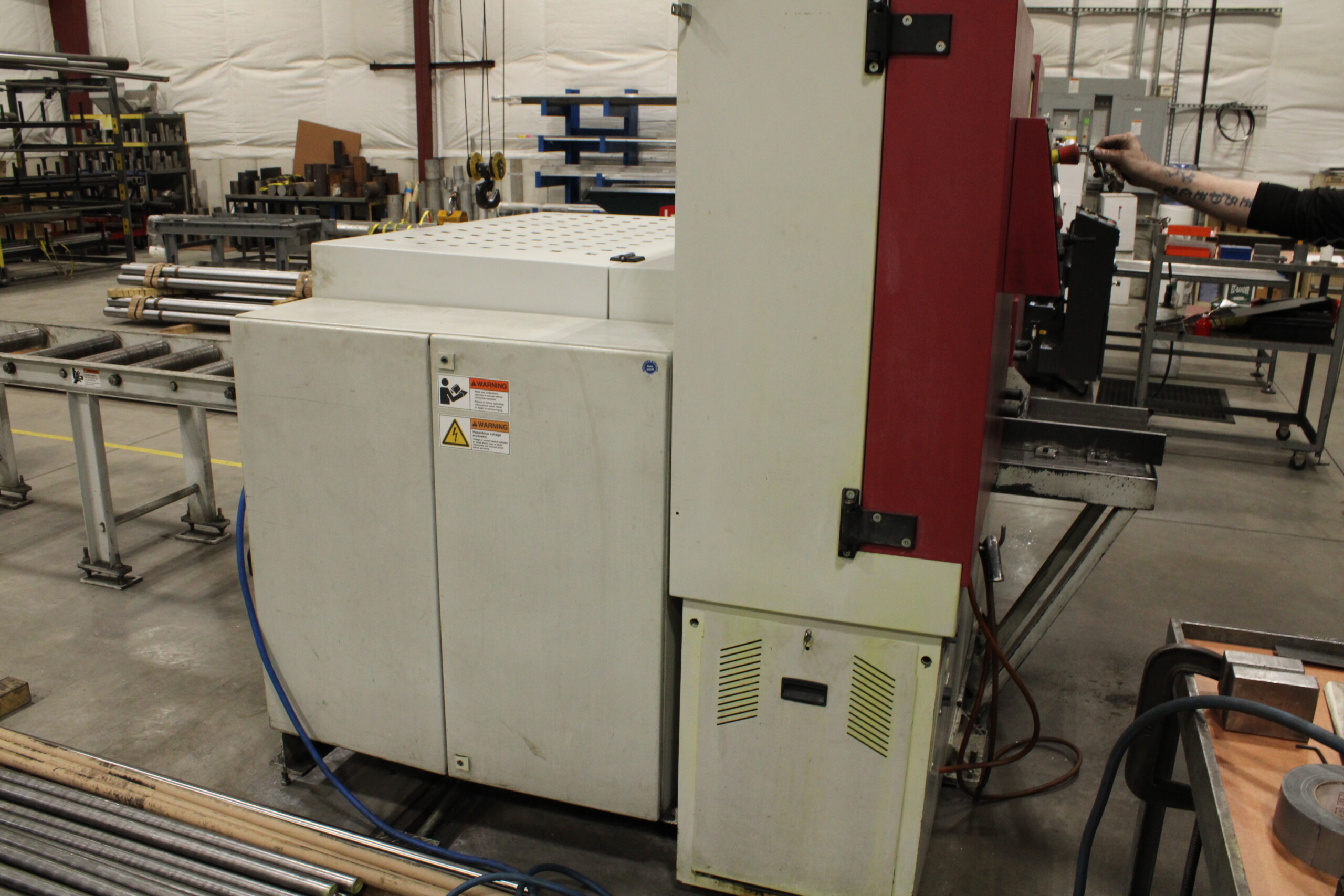

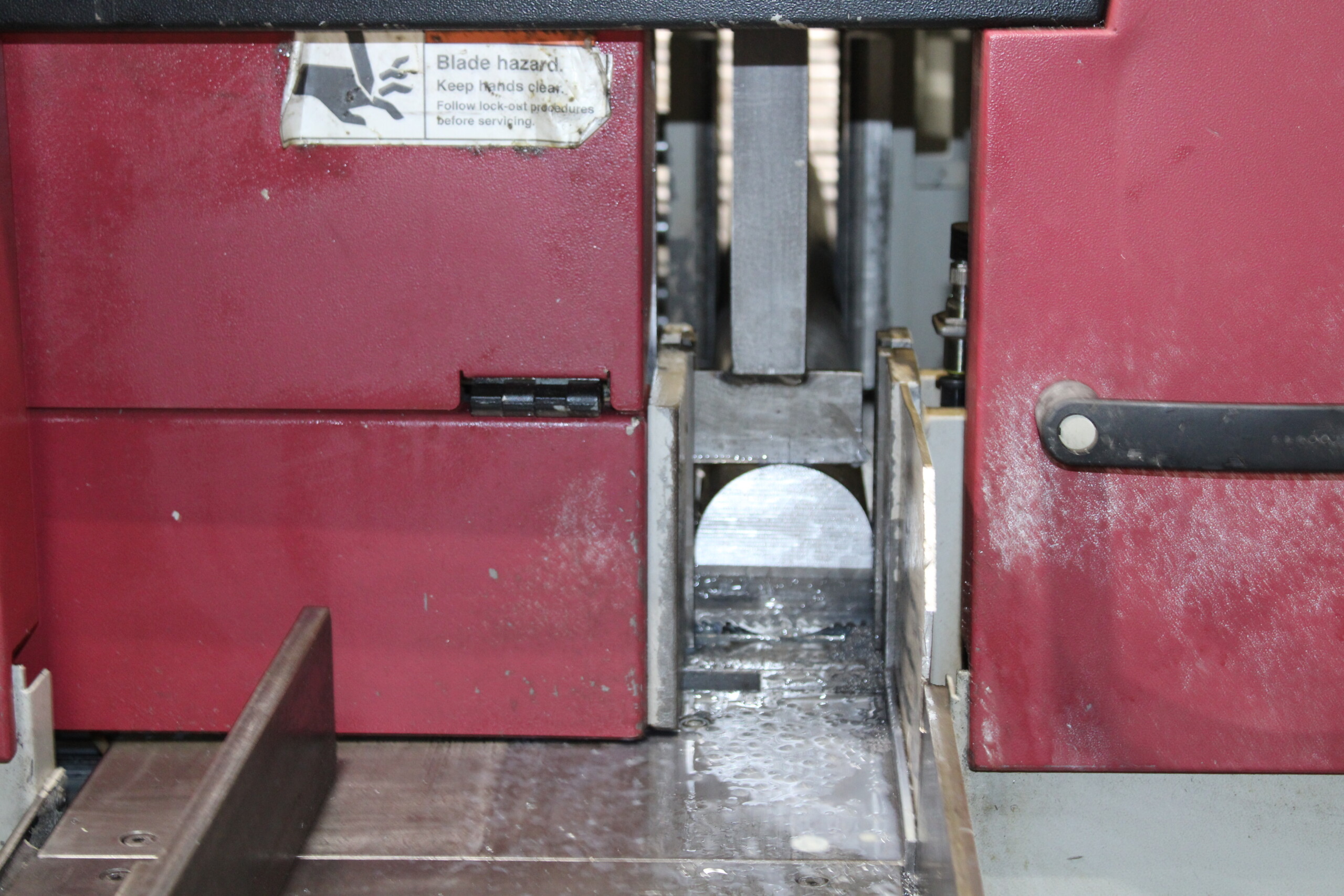

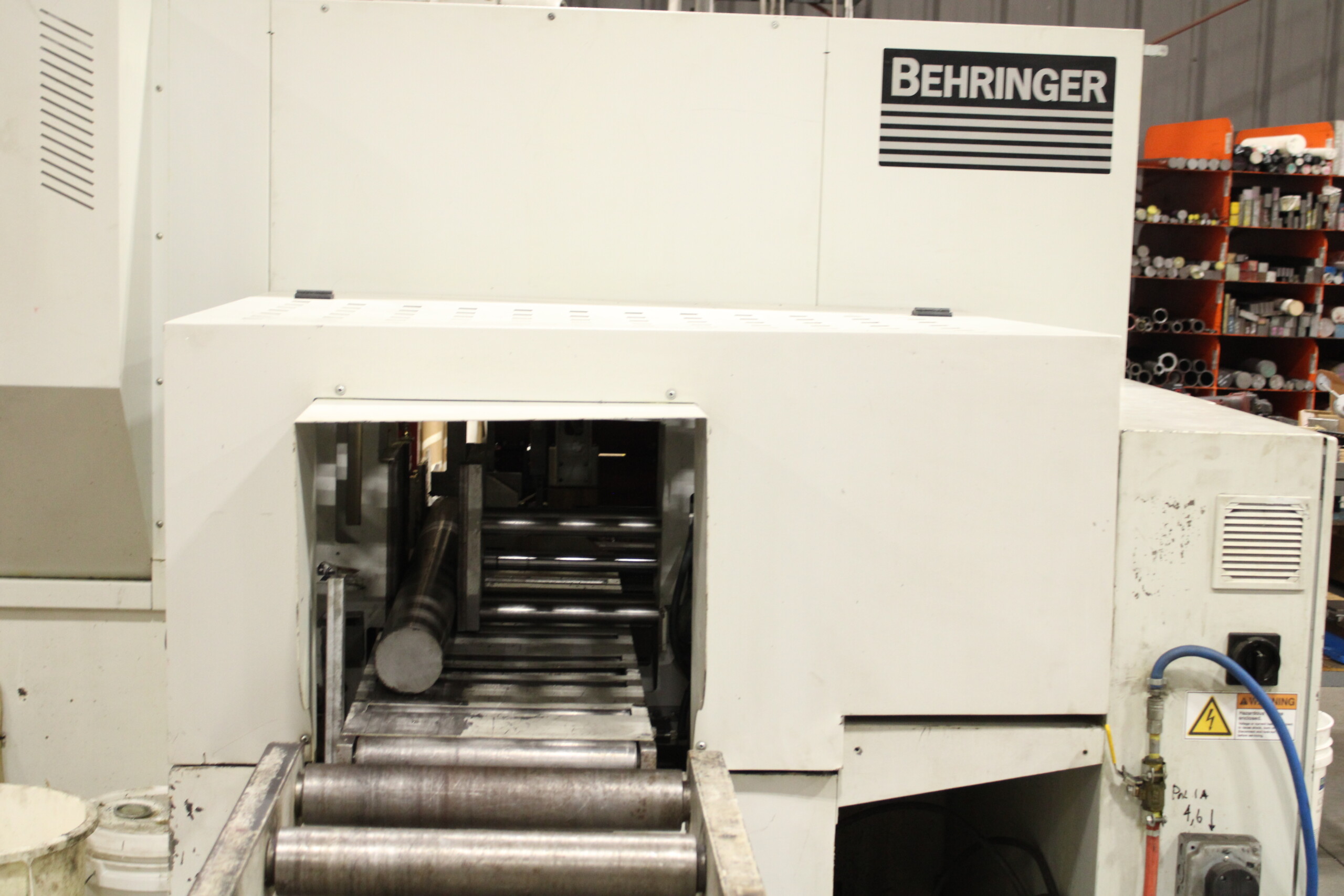

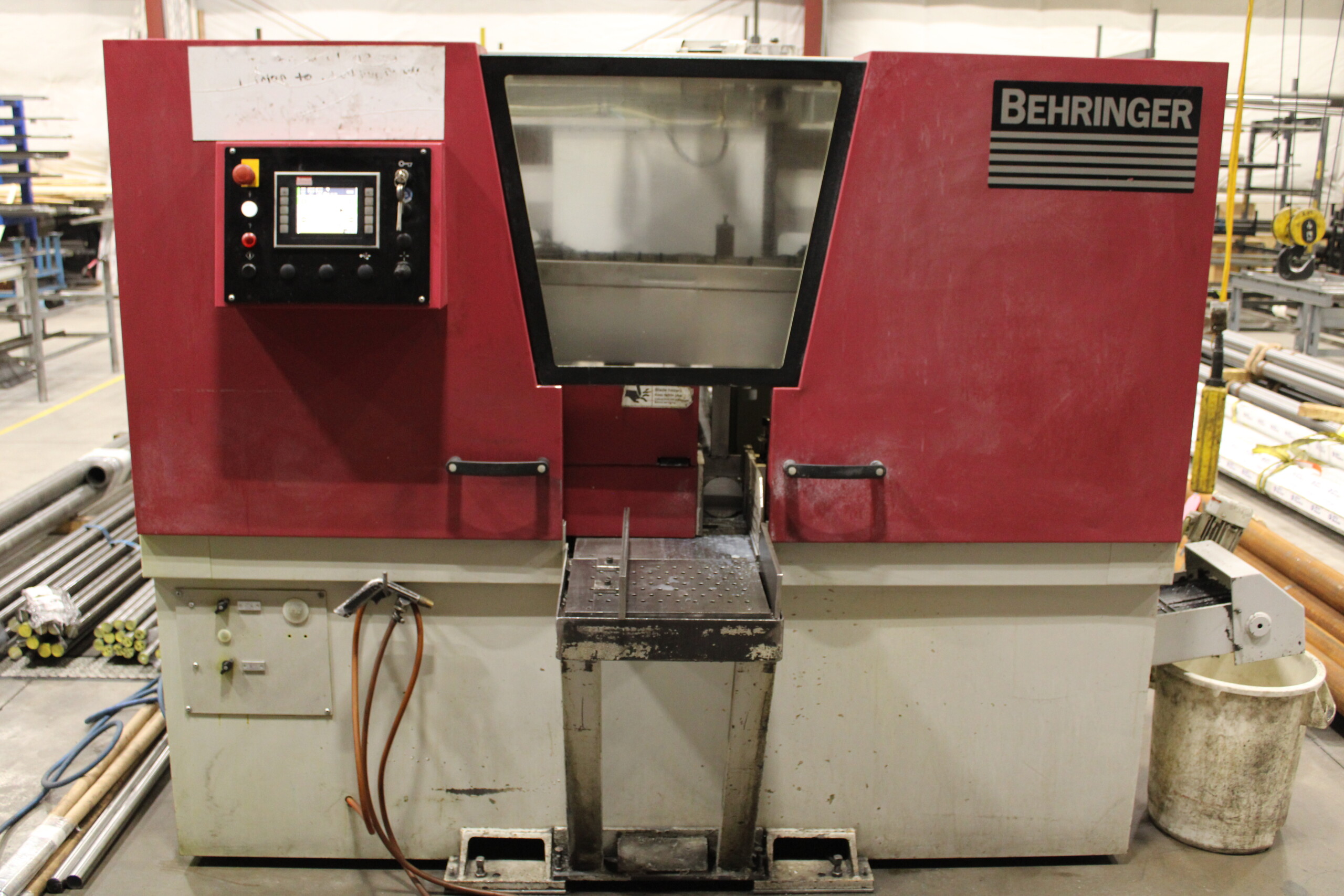

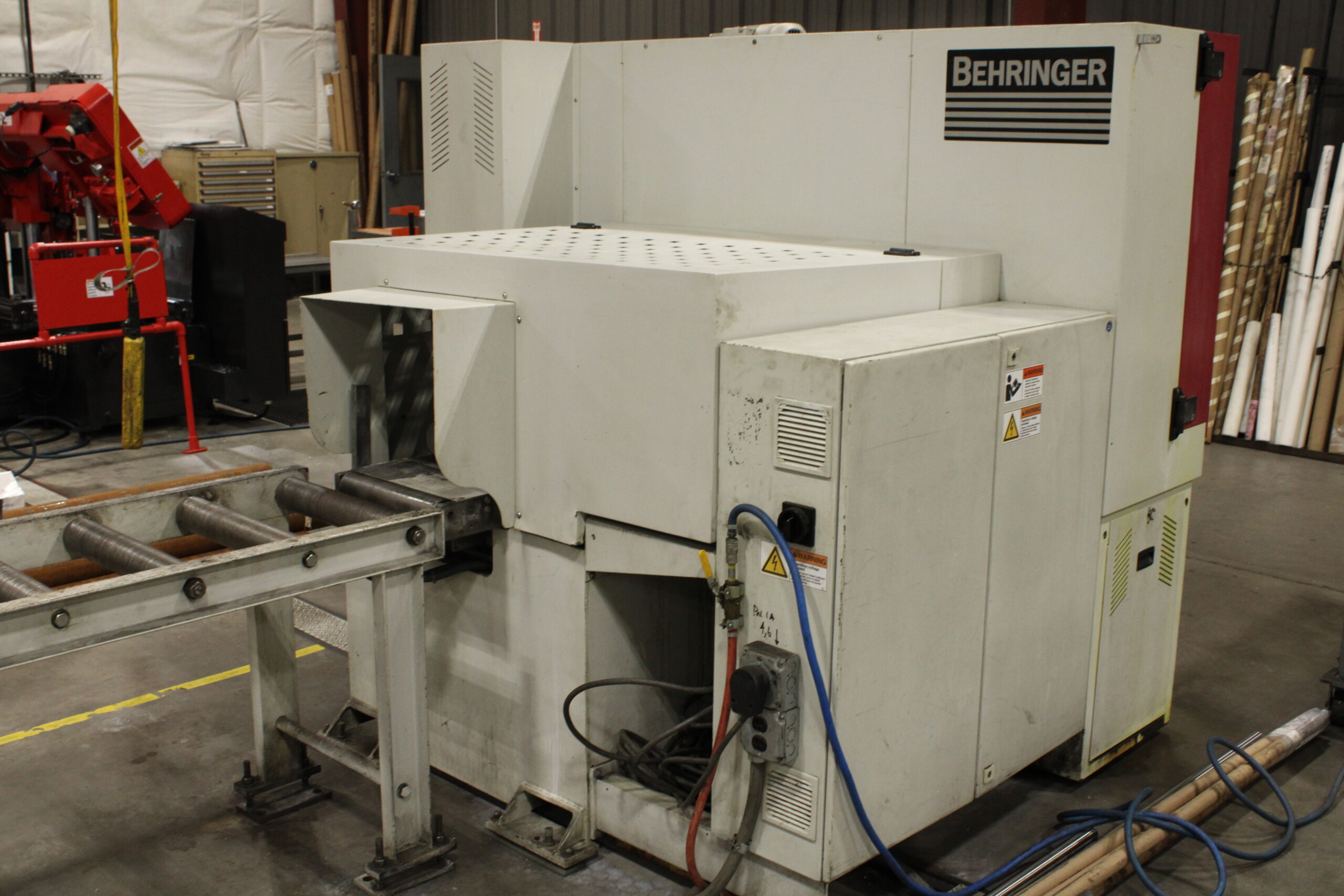

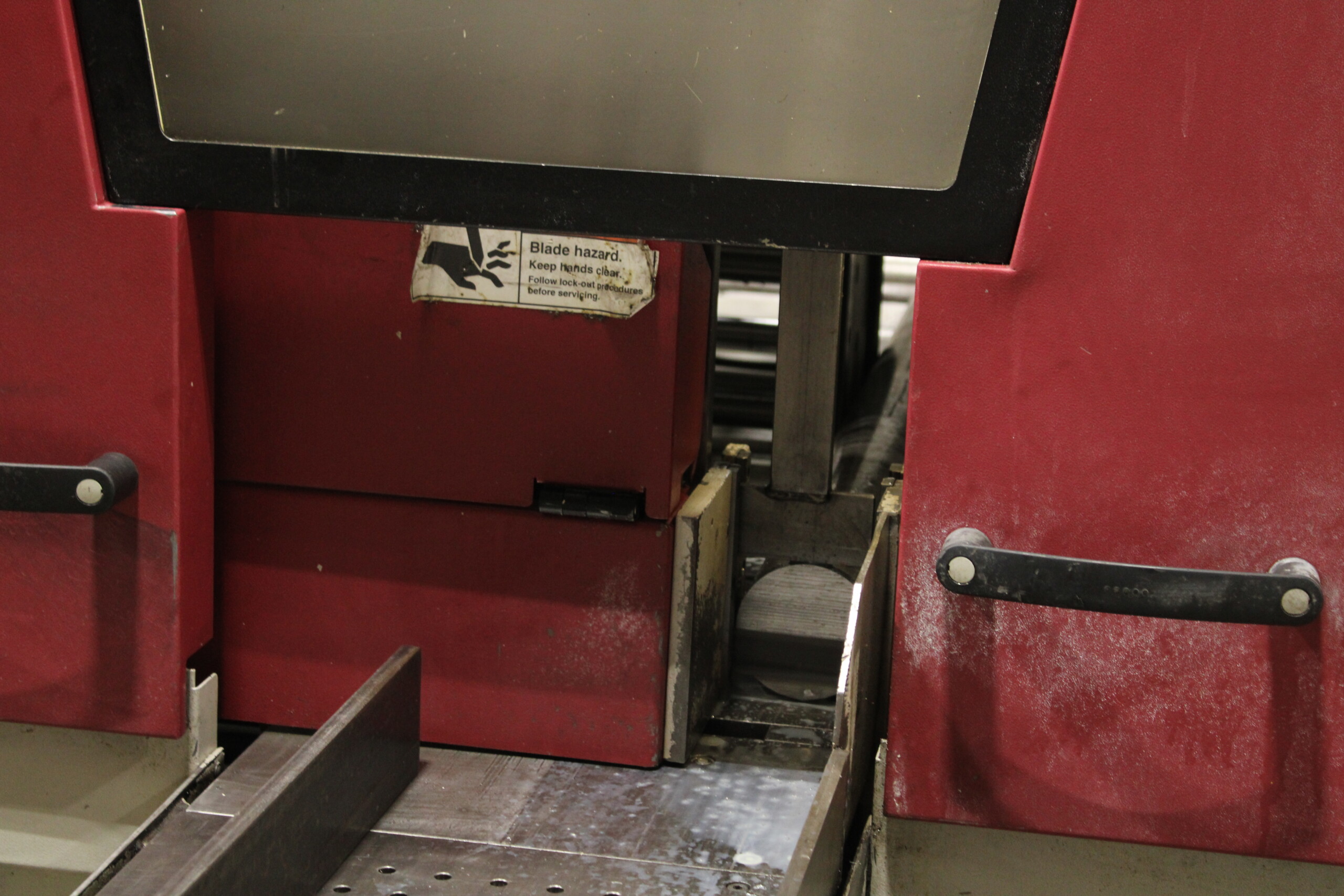

Behringer HBE321A Dynamic Horizontal Bandsaw
Asset # 17937B
Serial # 10010127
Specifications:
Cutting Range:
Cutting range 90° round 12.6 in
Cutting range 90° flat 13.8 x 12.6 in
Smallest dimension to be sawn round 0.4 in
Smallest dimension to be sawn flat 0.4 x 0.3 in
Feeding length single stroke 25.6 in
Drive power 3.5 hp
Blade speed 50 – 360 fpm
Saw blade dimensions 174.8 x 1-1/4 x 0.042 in
Rest piece length in automatic operation 2.8 in
Total power 5 hp
Saw feed servo-feed via ball screw

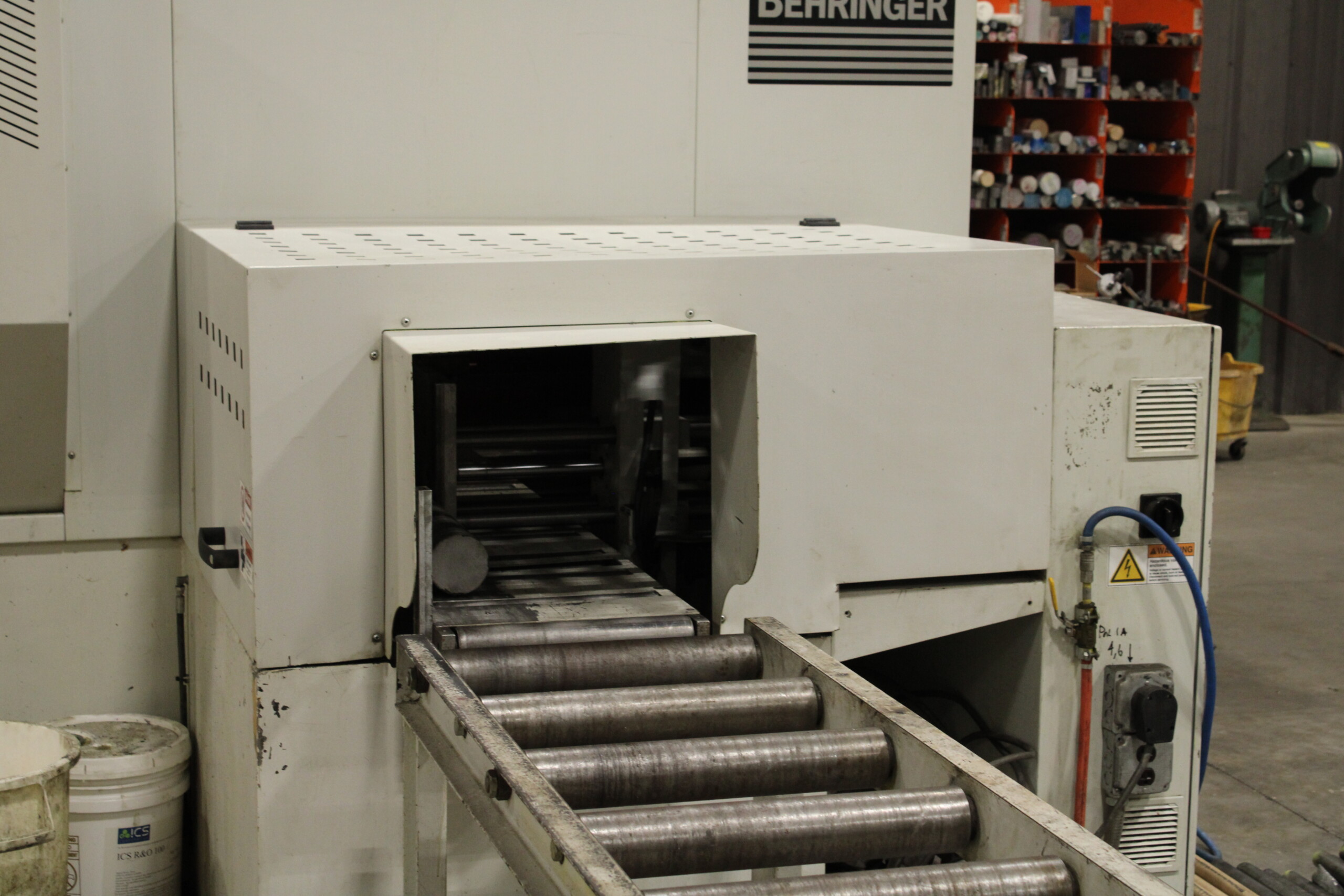

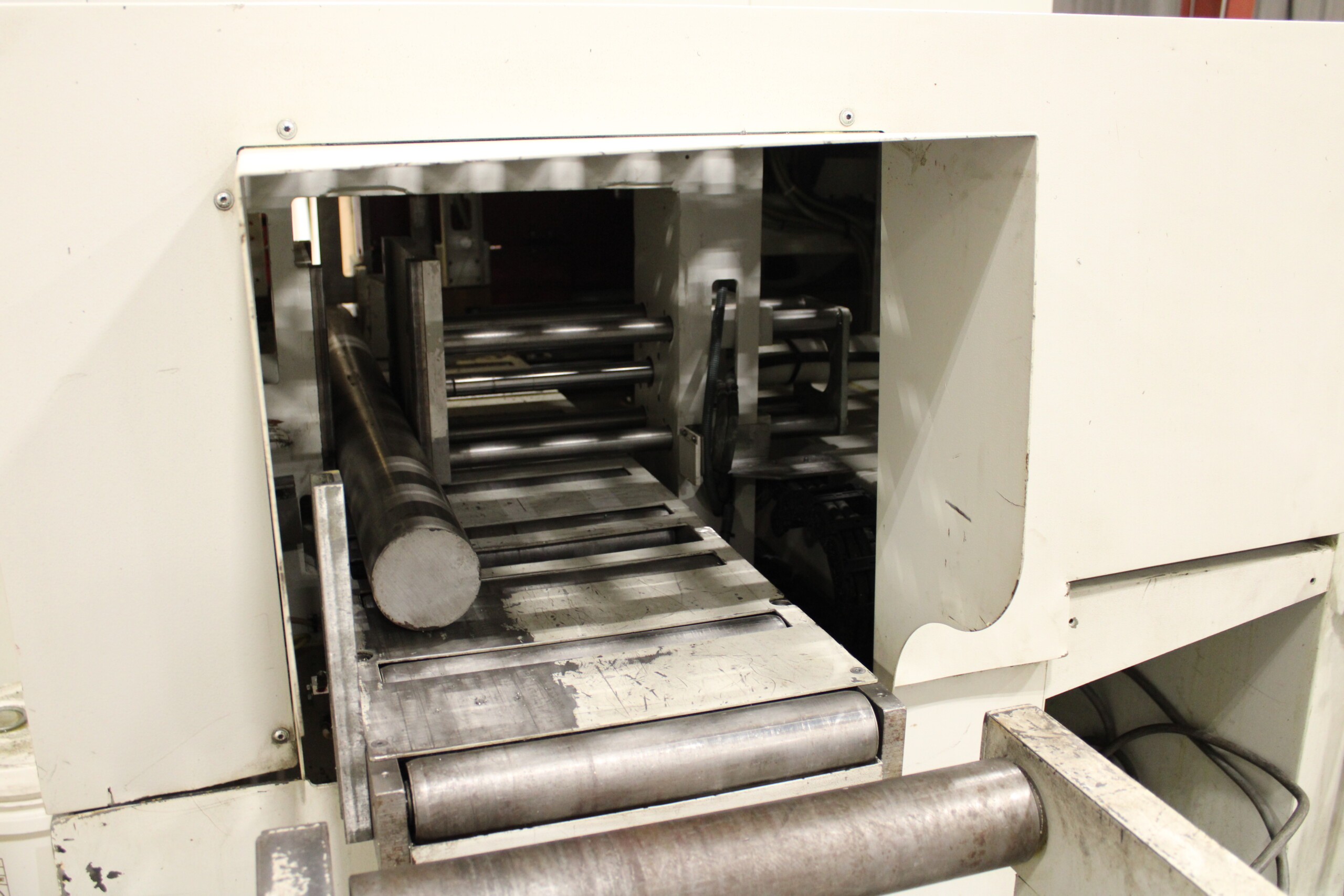

Material feed ball screw
Material clamping hydraulic

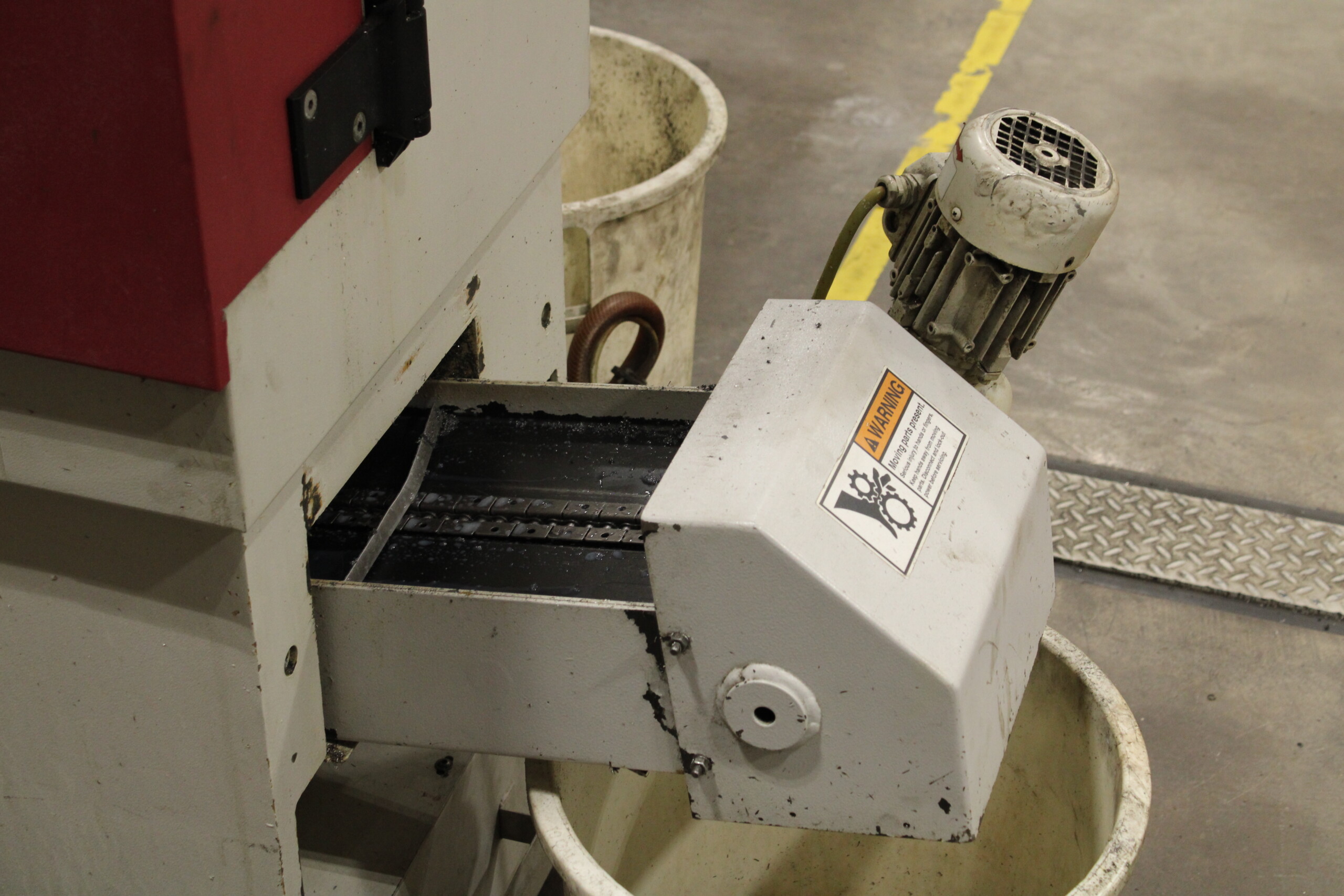

Saw blade cleaning electrically driven chip brush
Dimensions:
Length 72.8 in
Width 90.6 in
Height 71.7 in
Weight 4188.8 lbs
Material support height 31.5 in
Preliminary Specifications – Subject to Verification
