Description

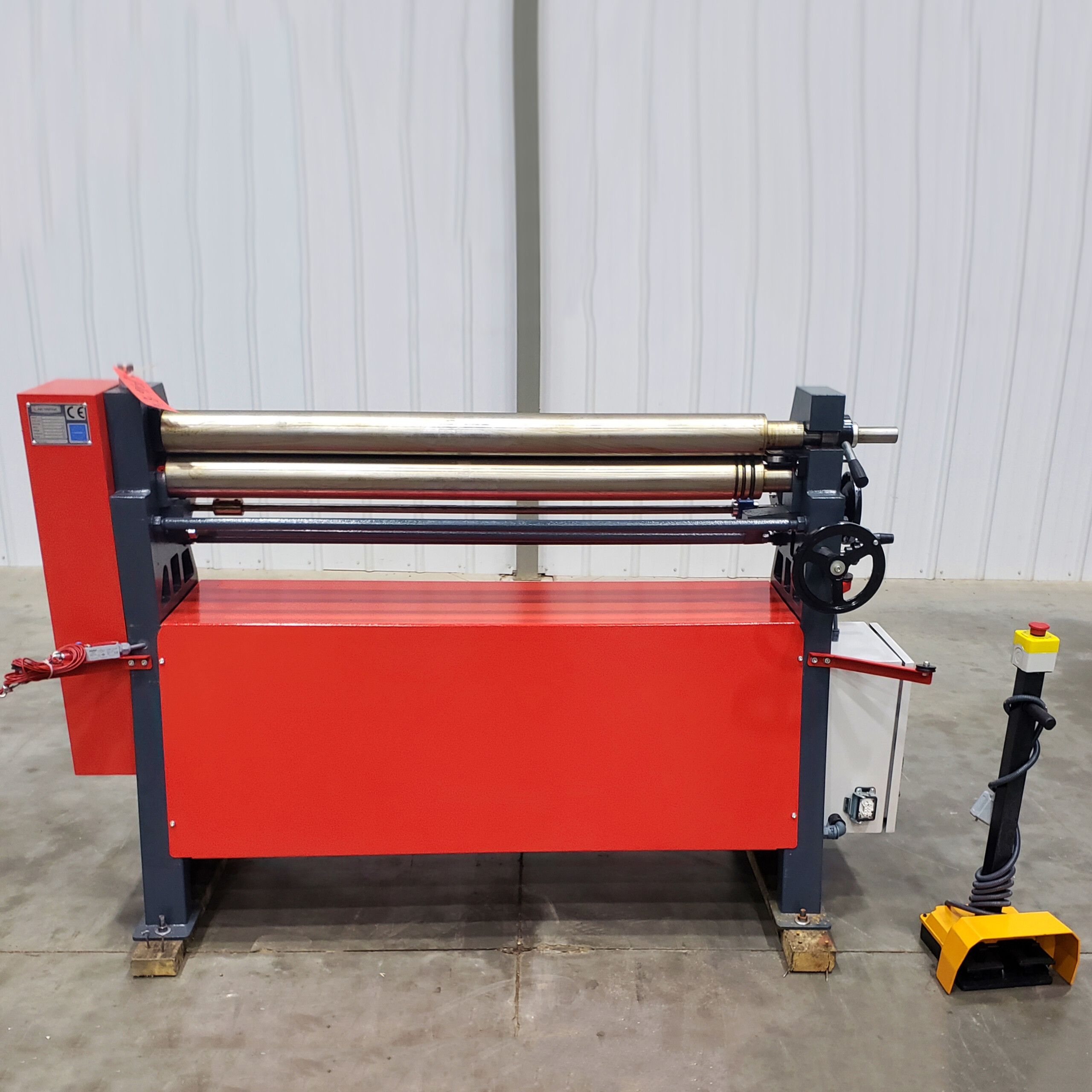

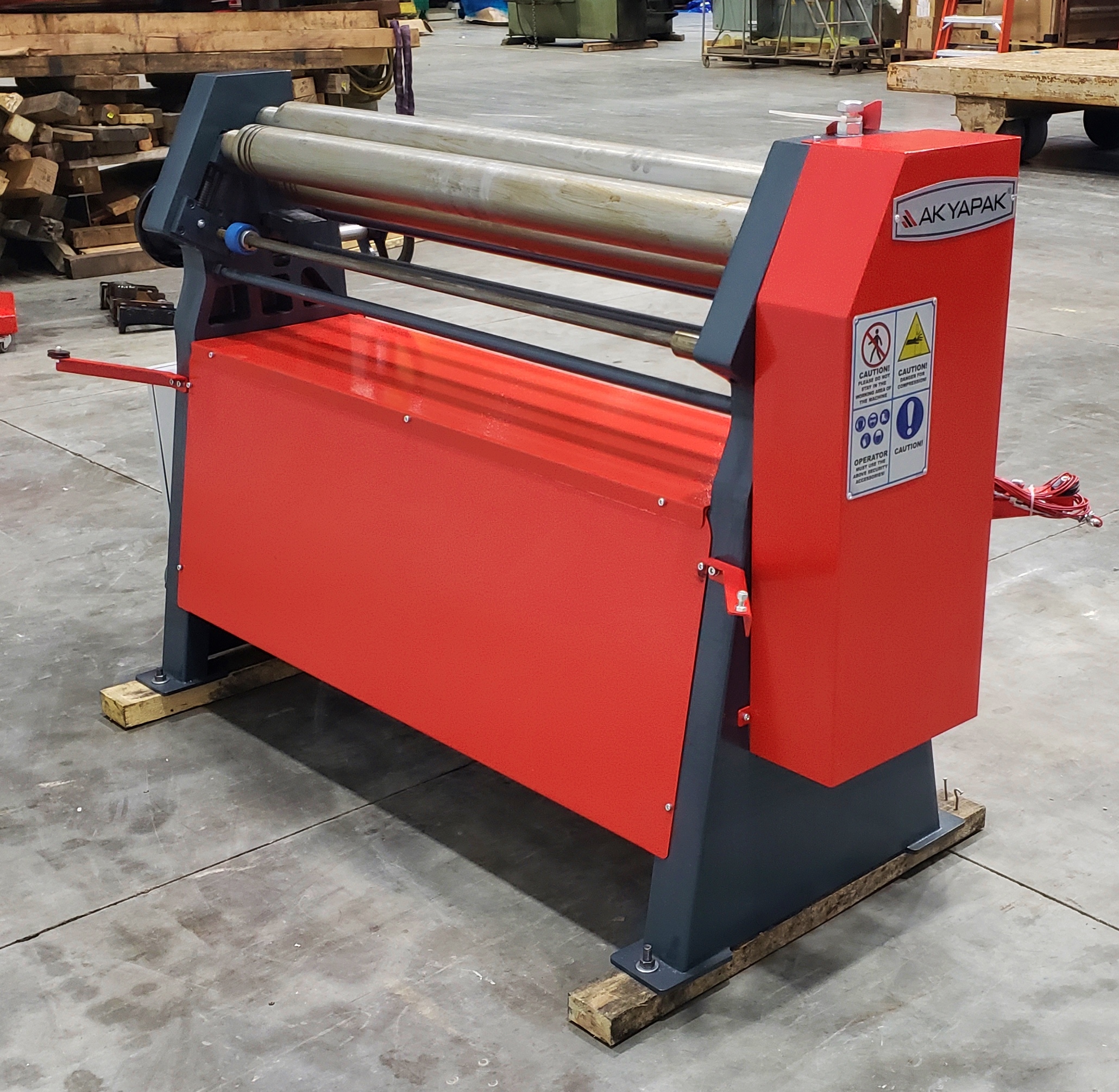

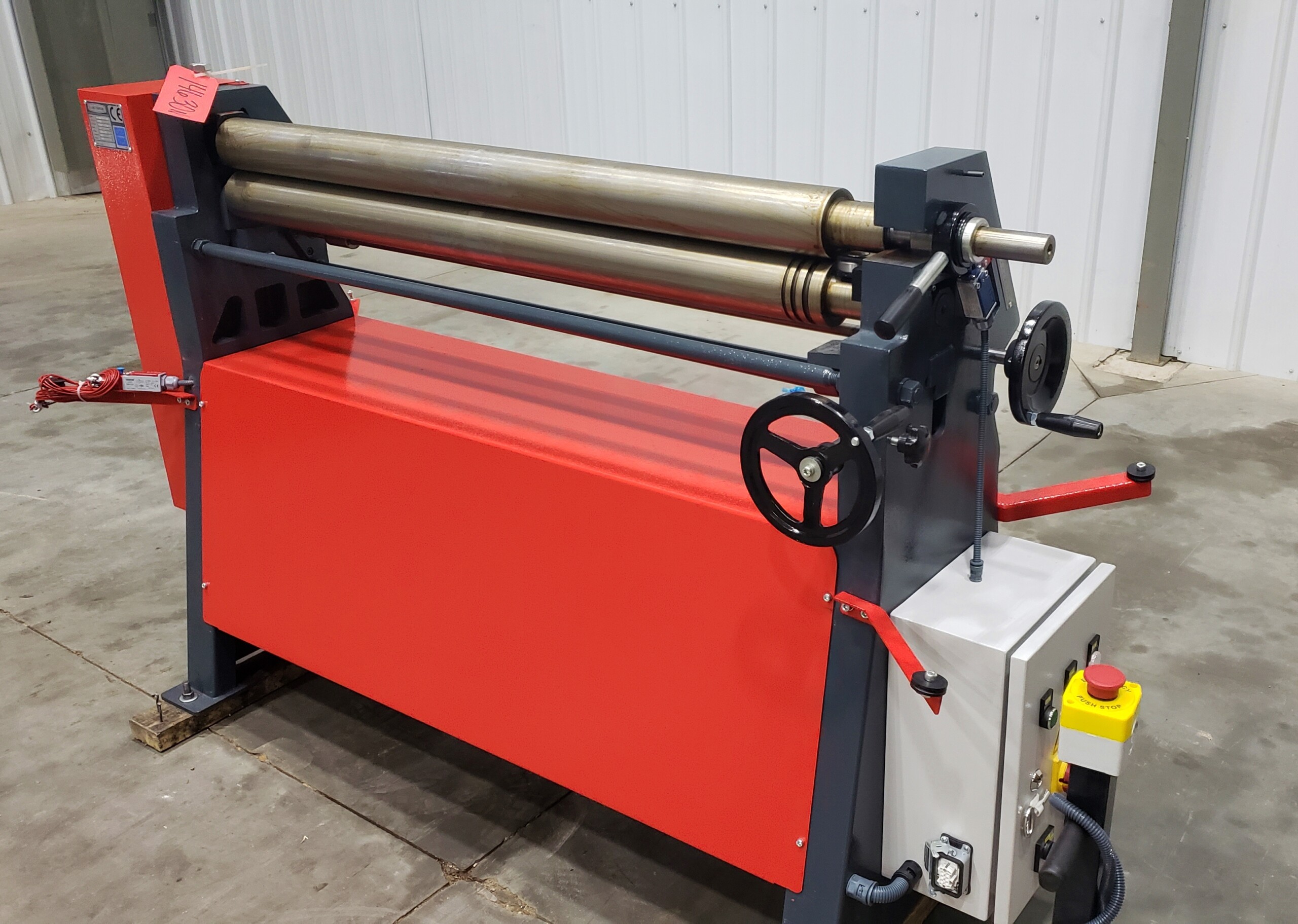

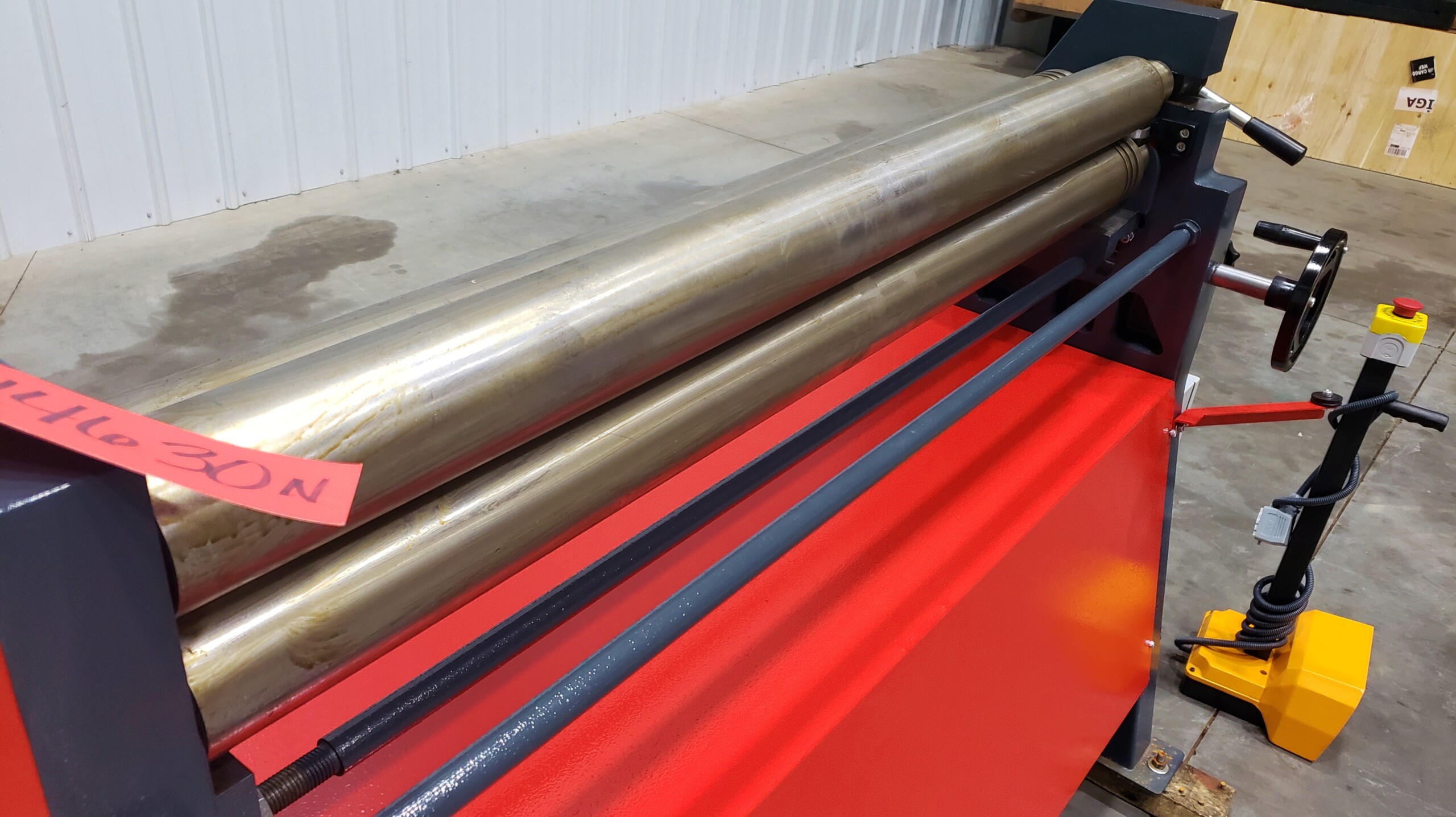

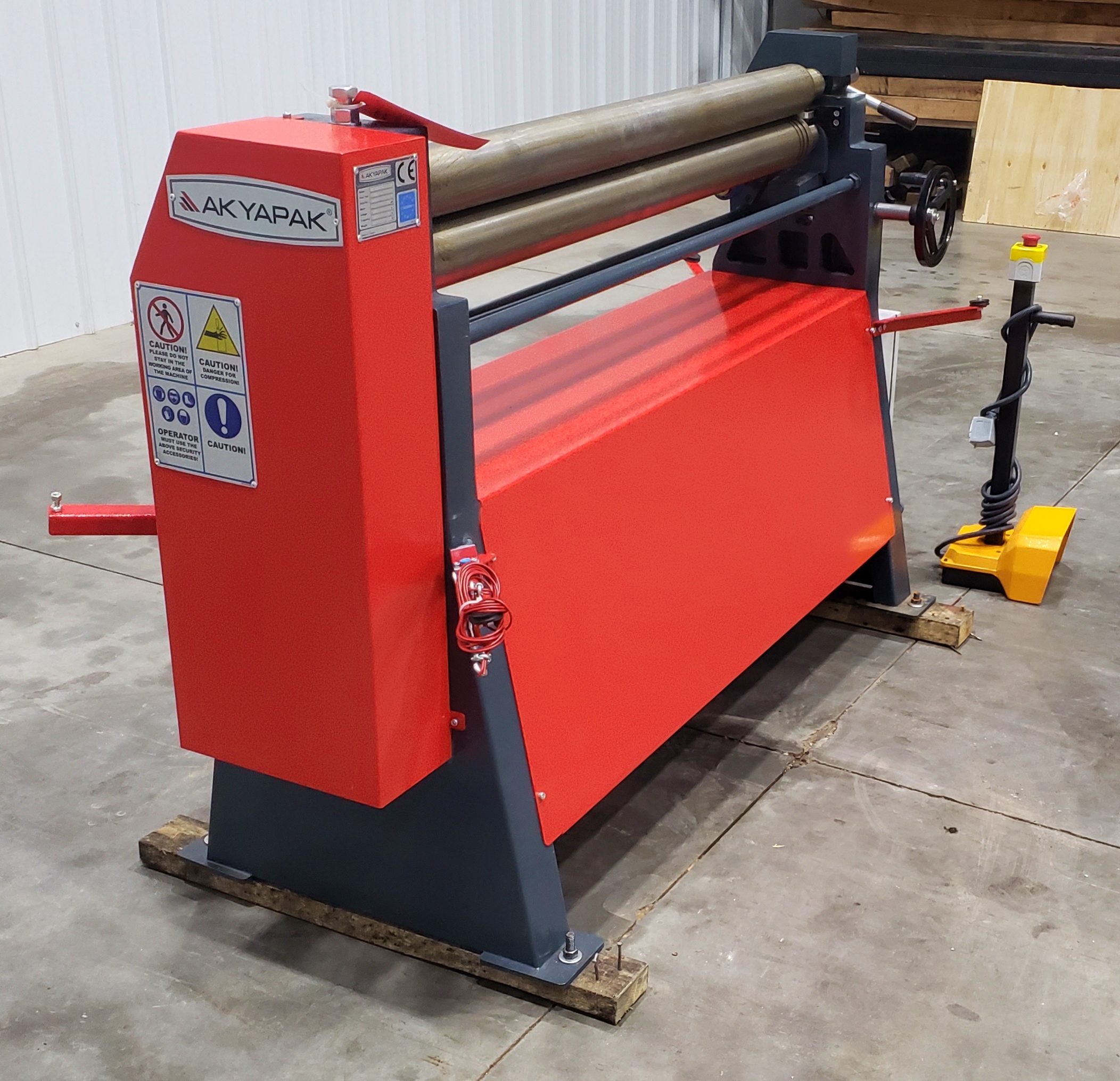

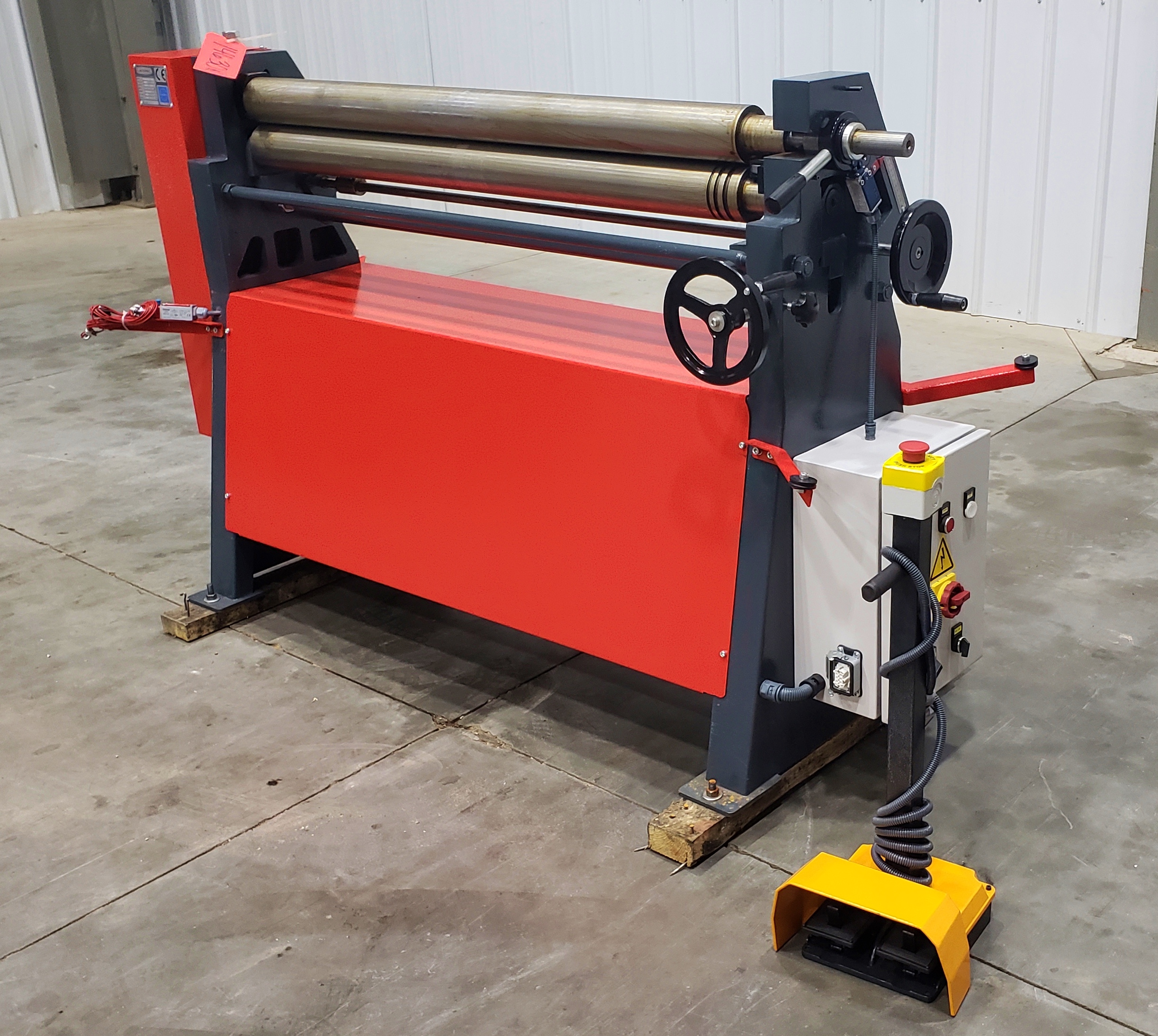

Akyapak 4′ x 11 Gauge 3 Roll Initial Pinch Plate Roll, Model AS90-12/2.5 – NEW
Asset # 17290N
Standard Features
AS model is made of cast iron construction. AS machines are combining the user friendly features, quality and best prices as an economical model.
• Body is made of cast iron construction
• Central rollers powered with electric motor, gearbox and gear drive
• Cone bending device
• Self brake main motor

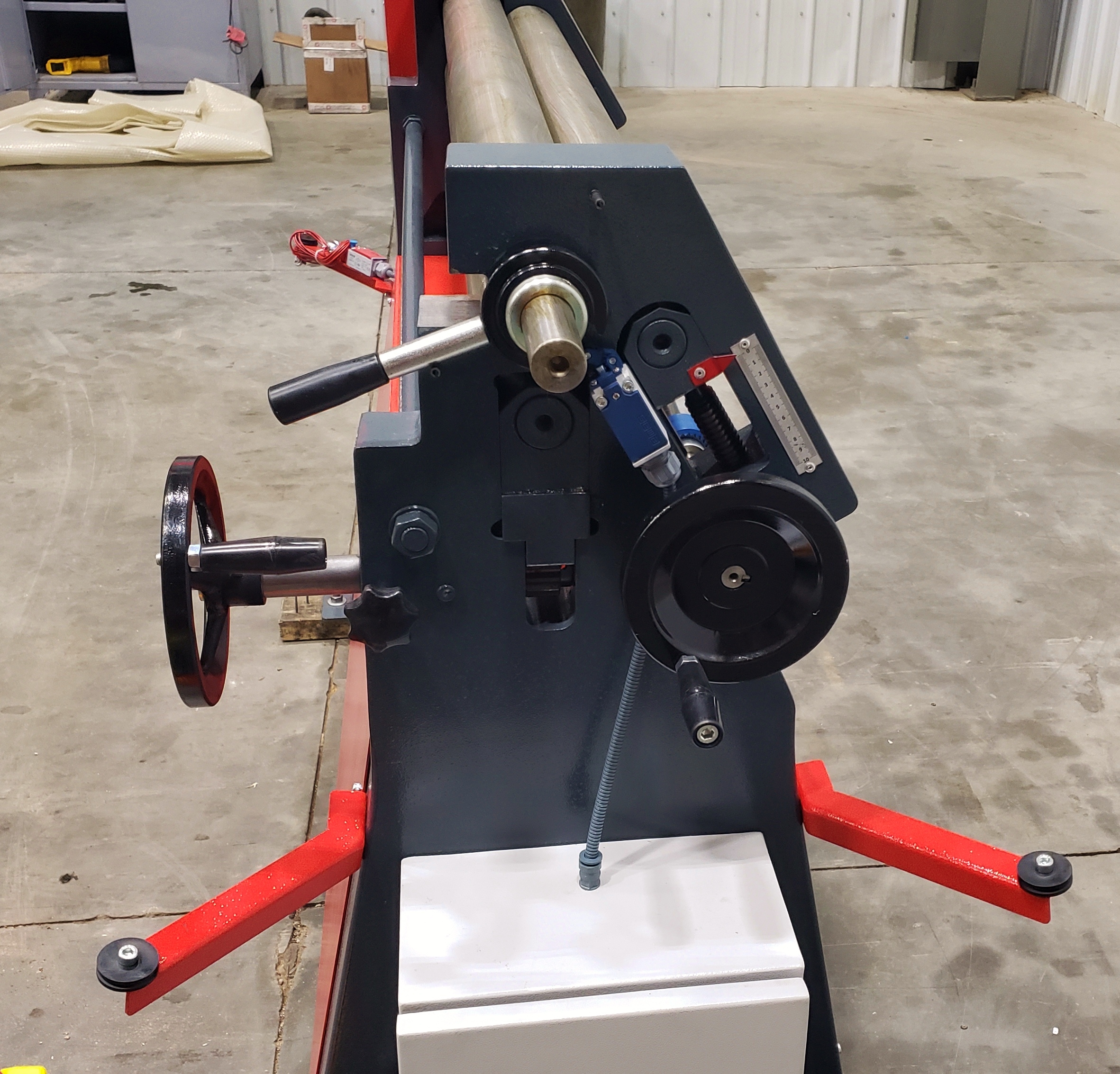

• Upper roll is openable by side
• Lower roll and back roll are with hand wheels up & down adjustable

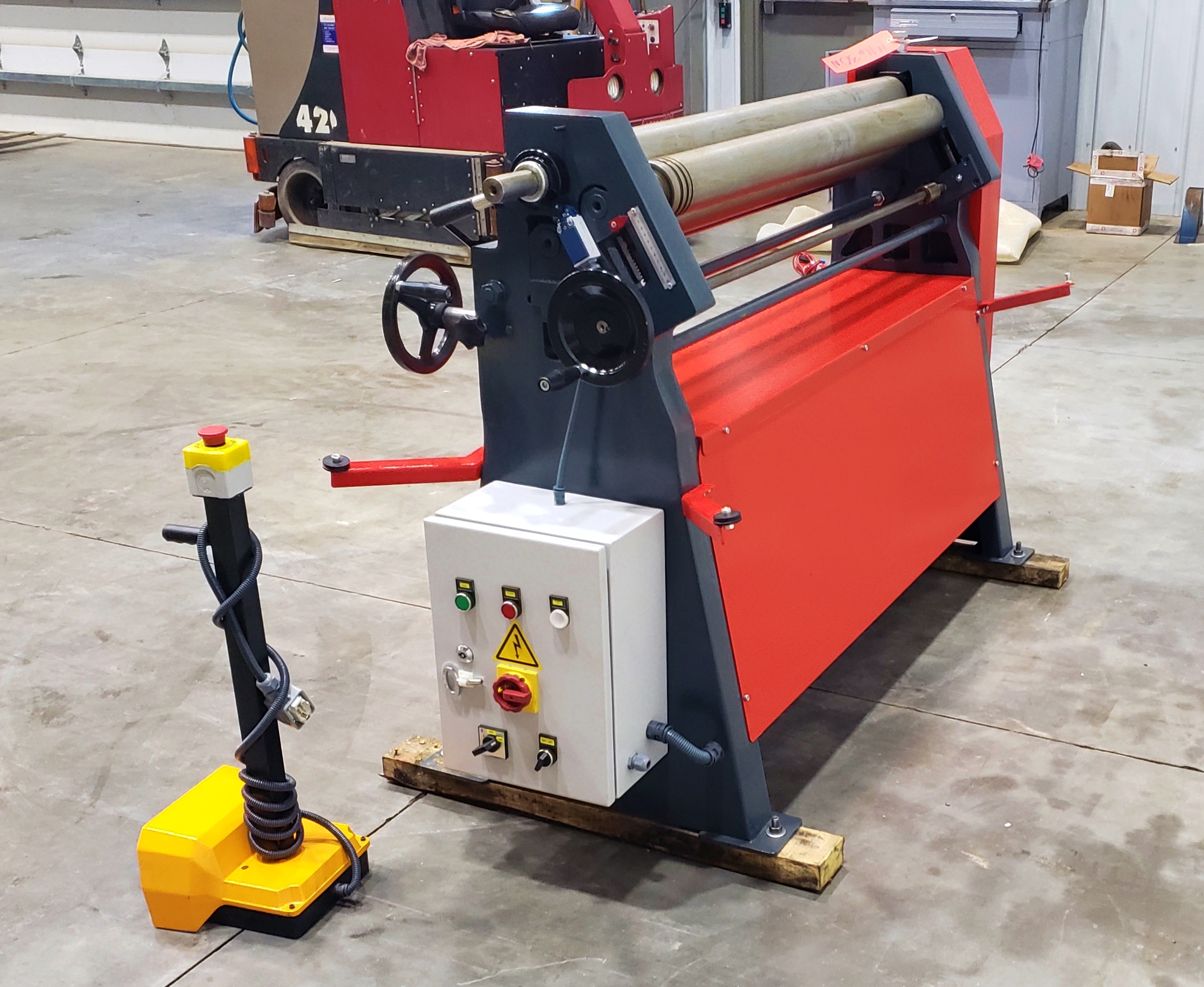

• Separate electric control panel with foot pedal
• Emergency stop
• Suitable for CE, ISO 9001-2008
TECHNICAL SPECIFICATIONS – AS 90-12/2.5
Working length Ft. 4’
Maximum Thickness in
Pre-bending – 12 ga.
Bending – 11 ga.
Yield Point: 36,000 PSI
Number of Rolls 3
Top Roll Ø in 3.54”
Min. Bending Ø in 5.12”
Motor Power hp 1.5
Length Ft. 6.4’
Height Ft. 3.7’
Width Ft. 3.0’
Weight Ibs 1.100
Included Accessories
Body Cover
