Description

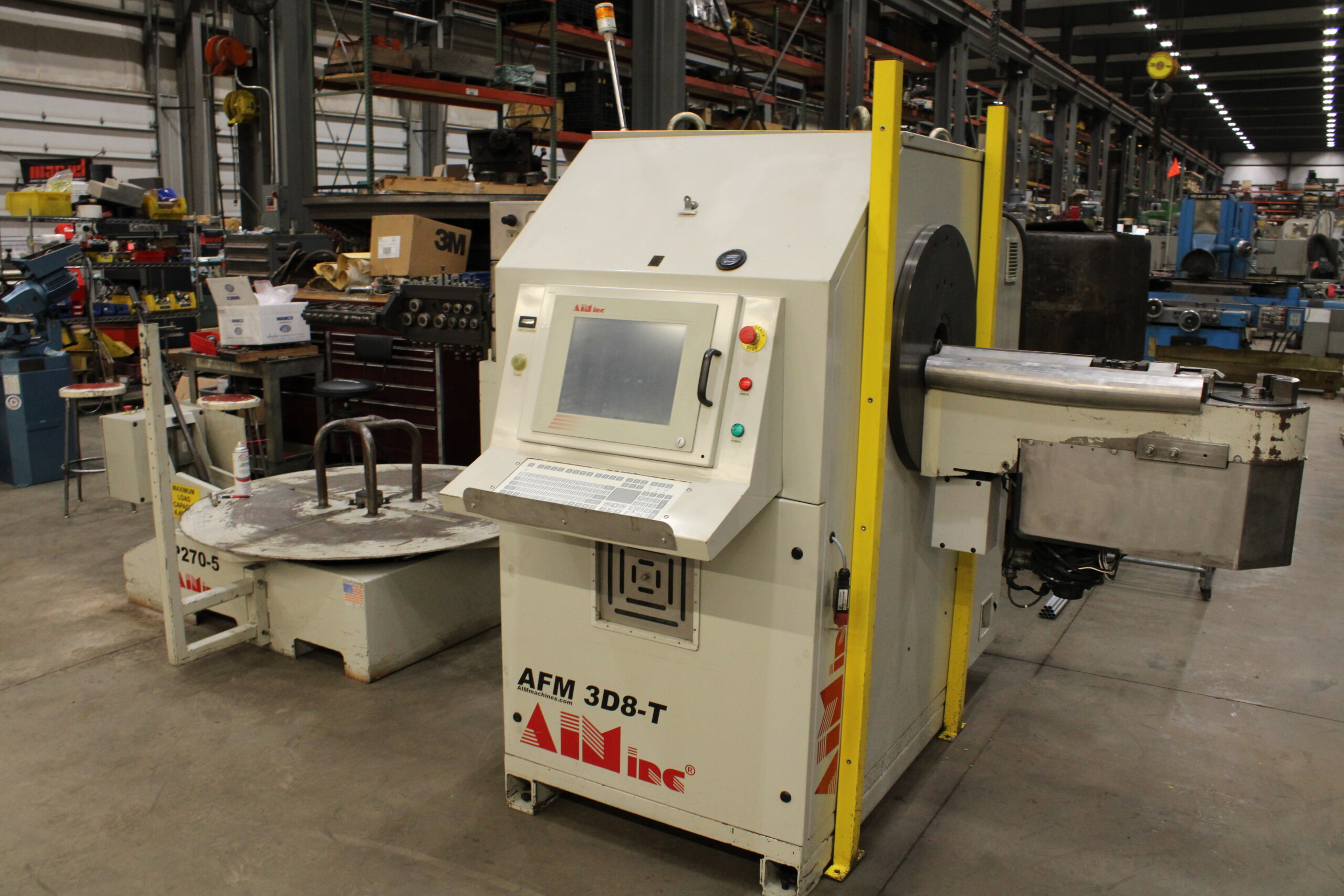

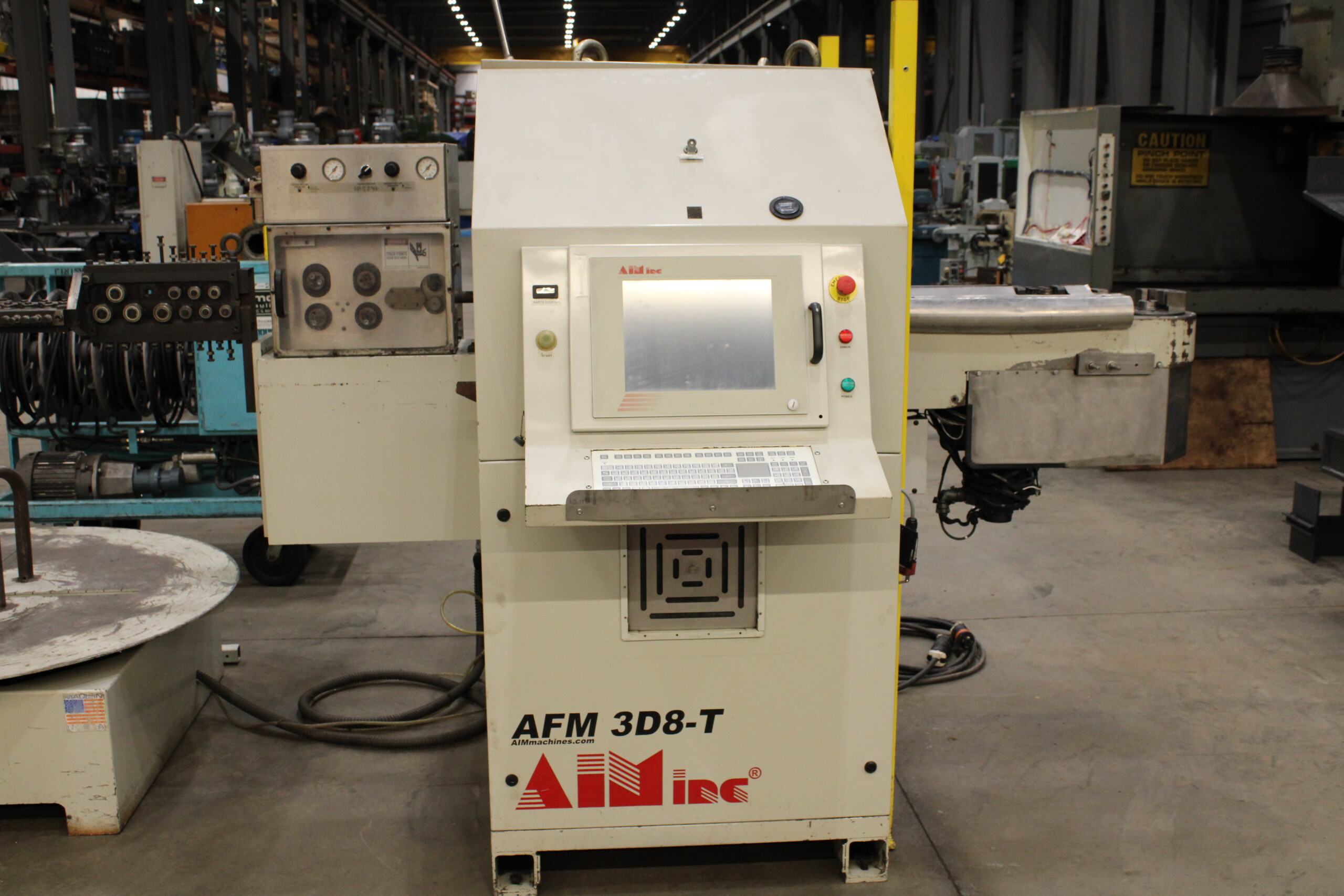

AIM AccuForm Modular Performance CNC Wire Bender, Model 3D8TU-P8F1
Asset # 17877
Serial #C6907052010
Specifications:
Wire Diameter Range 0.080″ – 0.313″
Max. Wire Tensile at Max. Wire Diameter 90 kPSI

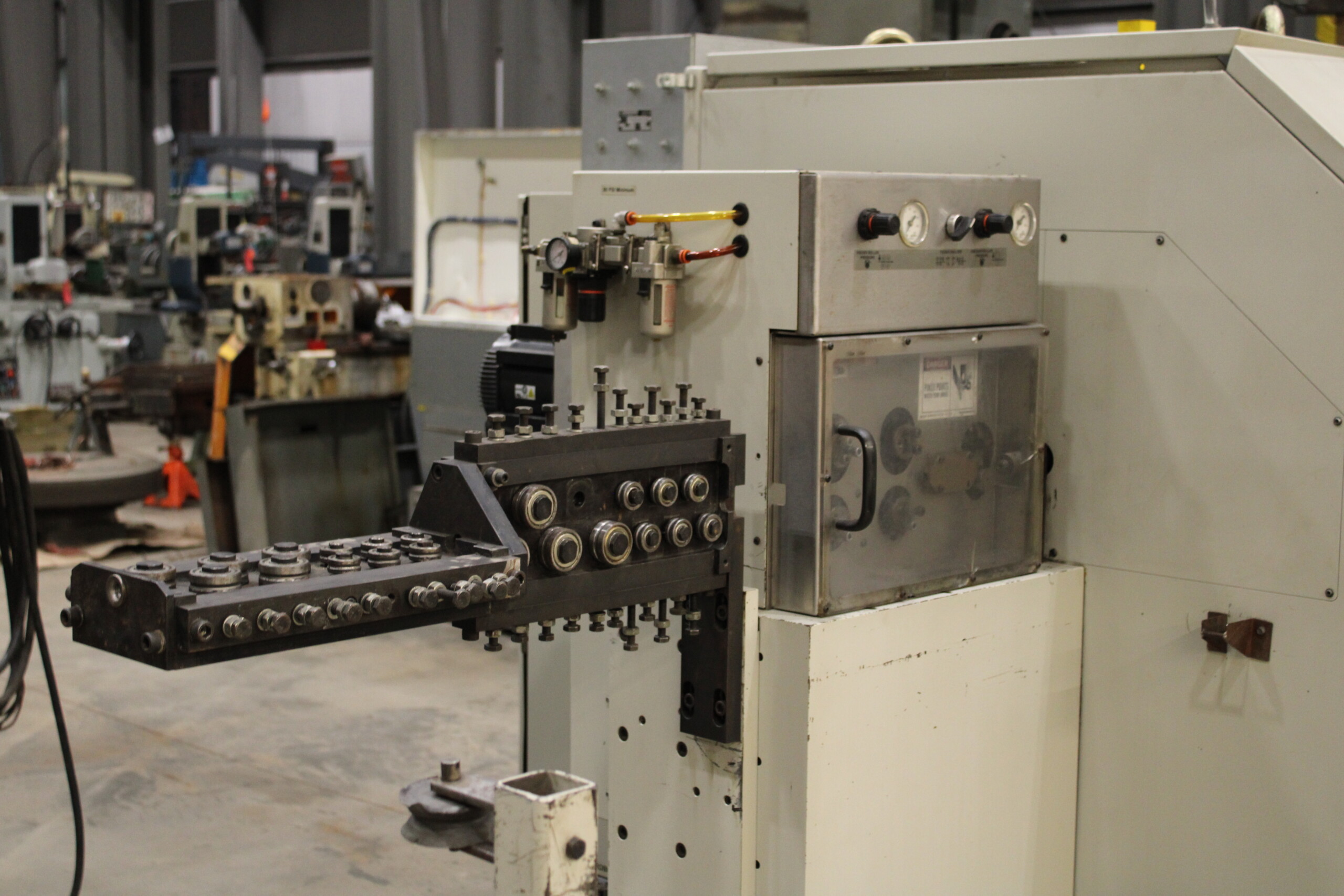

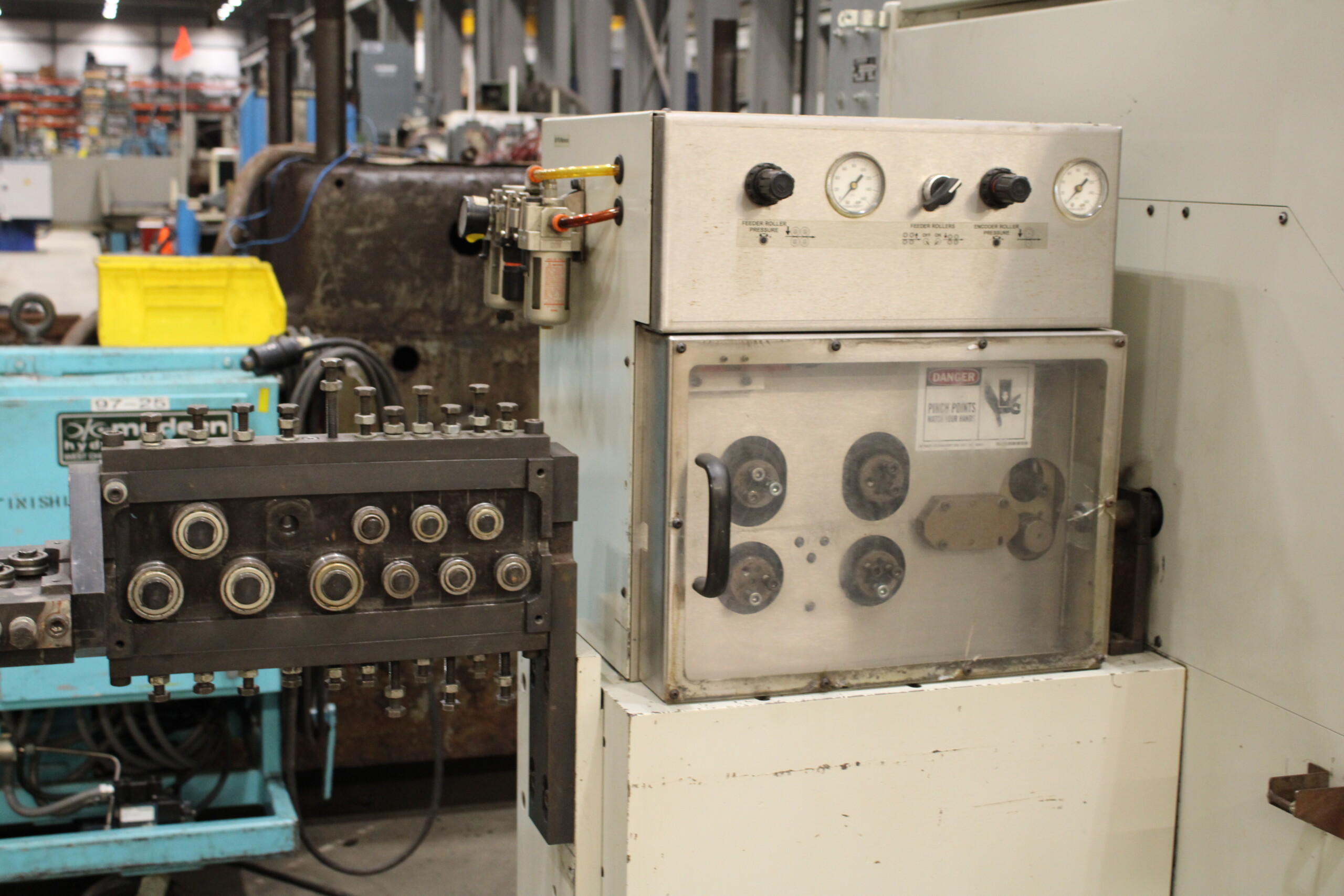

Feeder Axis #1
Wire Feed Resolution <0.00001″
Max. Wire Feed Speed 506′ ft/min

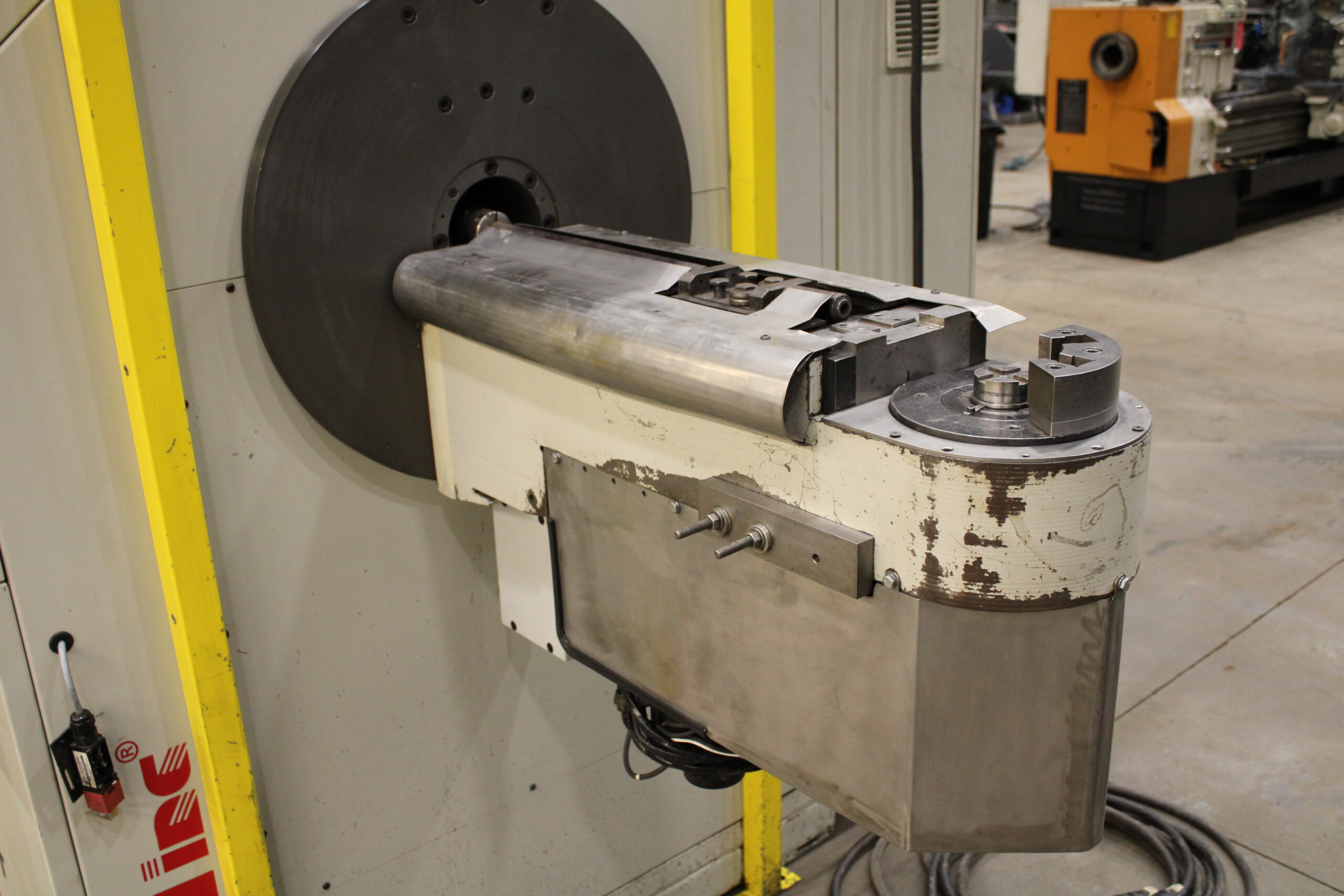

Bender Axis # 2
Bender Resolution <0.0001 degrees
Max Bender Speed 2500 degrees/sec
Max Bender Angle Unlimited
Z Axis #3
Z Axis Resolution <0.0001 degrees
Max Z Axis Speed 720 degrees / second
Max. Z Axis Rotation Unlimited
Turret Axis #4
Turret Axis Change Time 250 mSec
Set-Up Time
Same Wire Diameter 1 Minute
Change Feeders Rollers & Bending Tools 8 Minutes
Power Consumption
Average Power Consumption 2 kW/H
Electrical Requirement 50/60 HZ, 460 V, 3 PH
Installed Power 49 kVA
Air Requirements 100 PSI @ 2 SCFM
Dimensions
102″ x 82″ x 84″
9,250 lbs. Approximate
* No Wire Shear – Fully functioning, No Wire Shearing Capability
Preliminary Specifications – Subject to Verification
